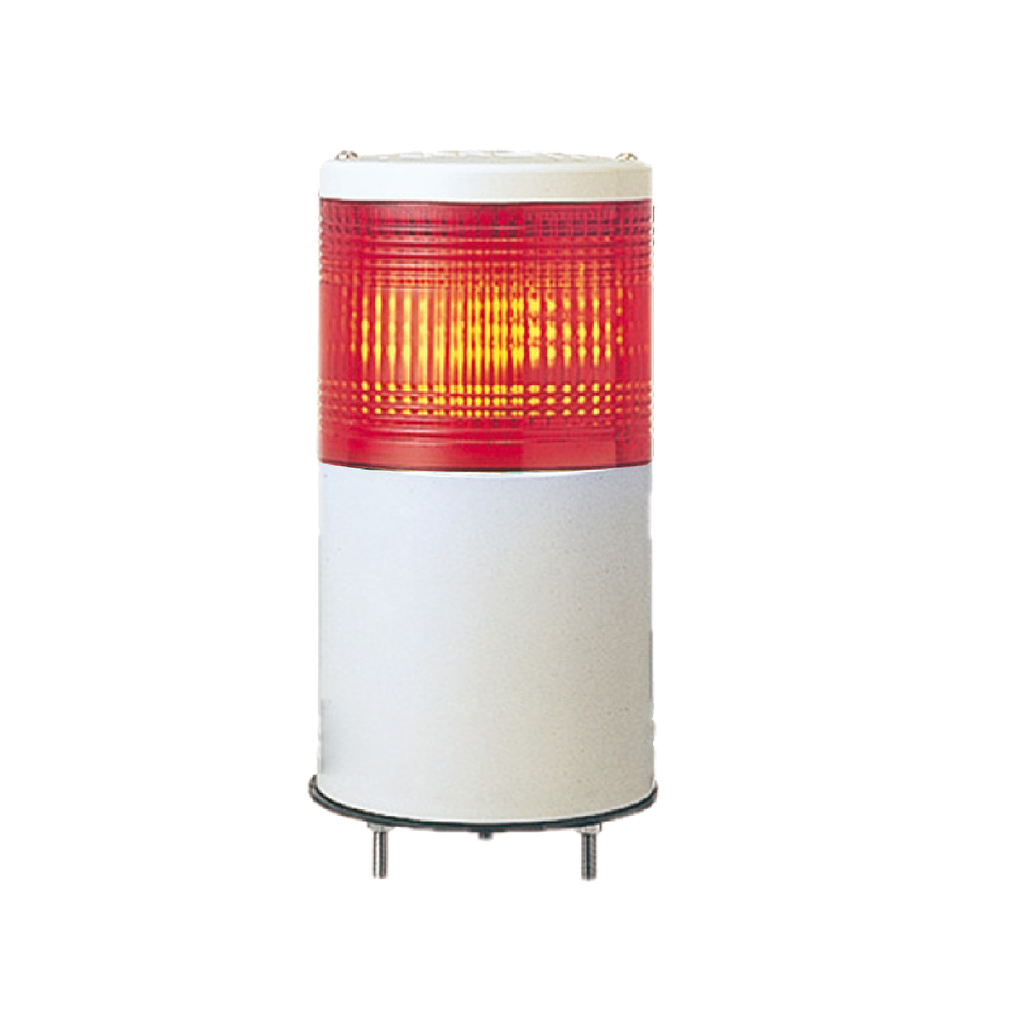

Monolithic precabled tower light, Harmony XVC, plastic, red, 40mm, base mounting, steady, IP54, 24V AC DC

• Range Of Product: Harmony XVC4
• Beacon Or Indicator Bank Unit Type: 1 illuminated unit
• Mounting Diameter: 40 mm
• Supply Circuit Type: AC/DC
• Light Source: LED steady red
• Product Or Component Type: complete pre-wired monolithic tower light
• Component Name: XVC
• Sound Signalling: without
• Device Short Name: XVC

Contractual warranty

• Warranty: 18 months

Complementary

• [Us] Rated Supply Voltage: 24 V
• Height: 100.5 mm
• Awg Gauge: AWG 22
• [Uimp] Rated Impulse Withstand Voltage: 0.8 kV
• Flashing Frequency: 1 Hz
• Cable Cross Section: 0.33-0.33 mm²
• Product Mounting: on base
• Material: polycarbonate illuminated unit || ABS (acrylonitrile butadiene-styrene) base unit || PBT + ABS (UL94HB) top cover
• Cable Length: 500 mm
• Marking: CE
• Net Weight: 0.1 kg
• Mounting Location: on base
• Current Consumption: 25 mA

Offer Sustainability

• China Rohs Regulation: X
• Circularity Profile: ENVEOLI1904008EN
• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP1904008EN
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Environment

• Product Certifications: UL
• Ambient Air Temperature For Operation: -10-50 °C
• Ambient Air Temperature For Storage: -35-70 °C
• Overvoltage Category: class II EN/IEC 61140
• Standards: EN/IEC 61000-6-2 || EN/IEC 61000-6-3
• Electrical Shock Protection Class: class II EN/IEC 61140
• Protective Treatment: TC
• Ip Degree Of Protection: IP54 flat surface installation EN/IEC 60529
