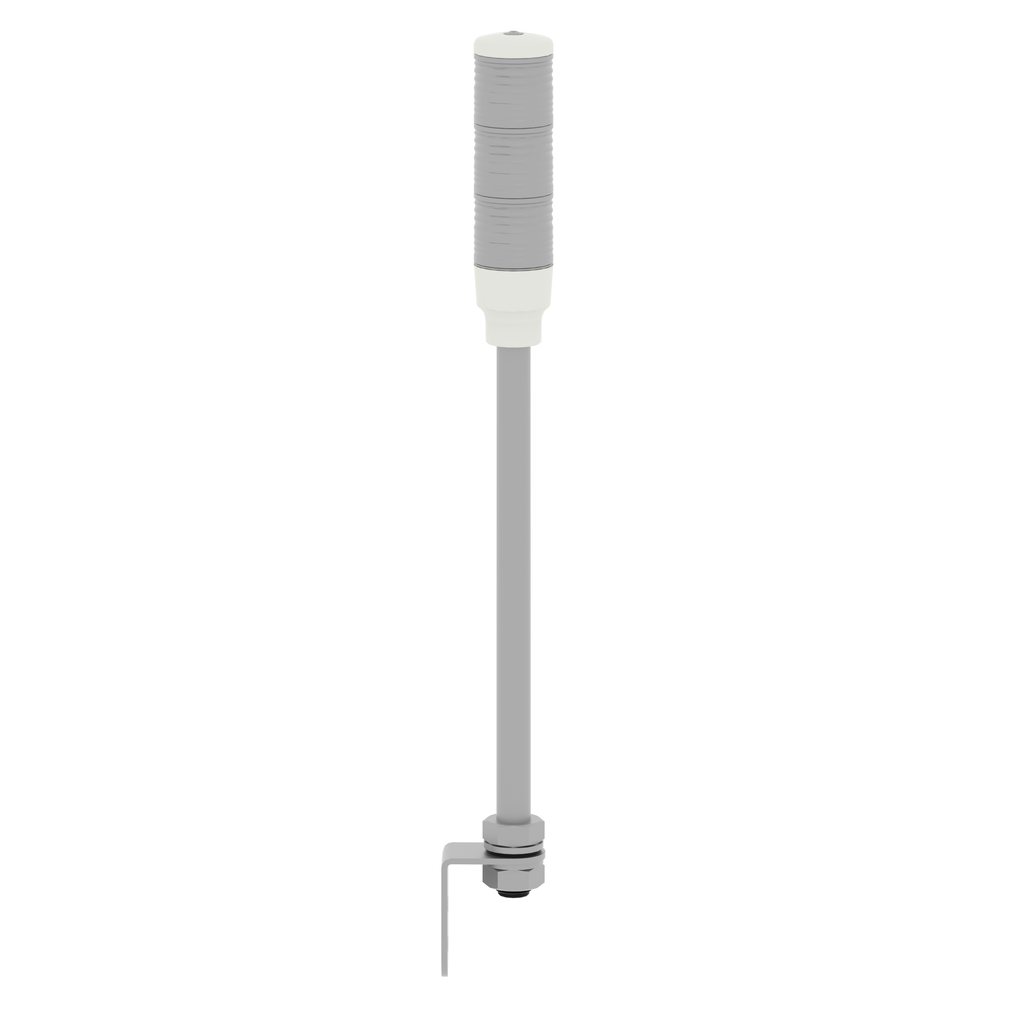

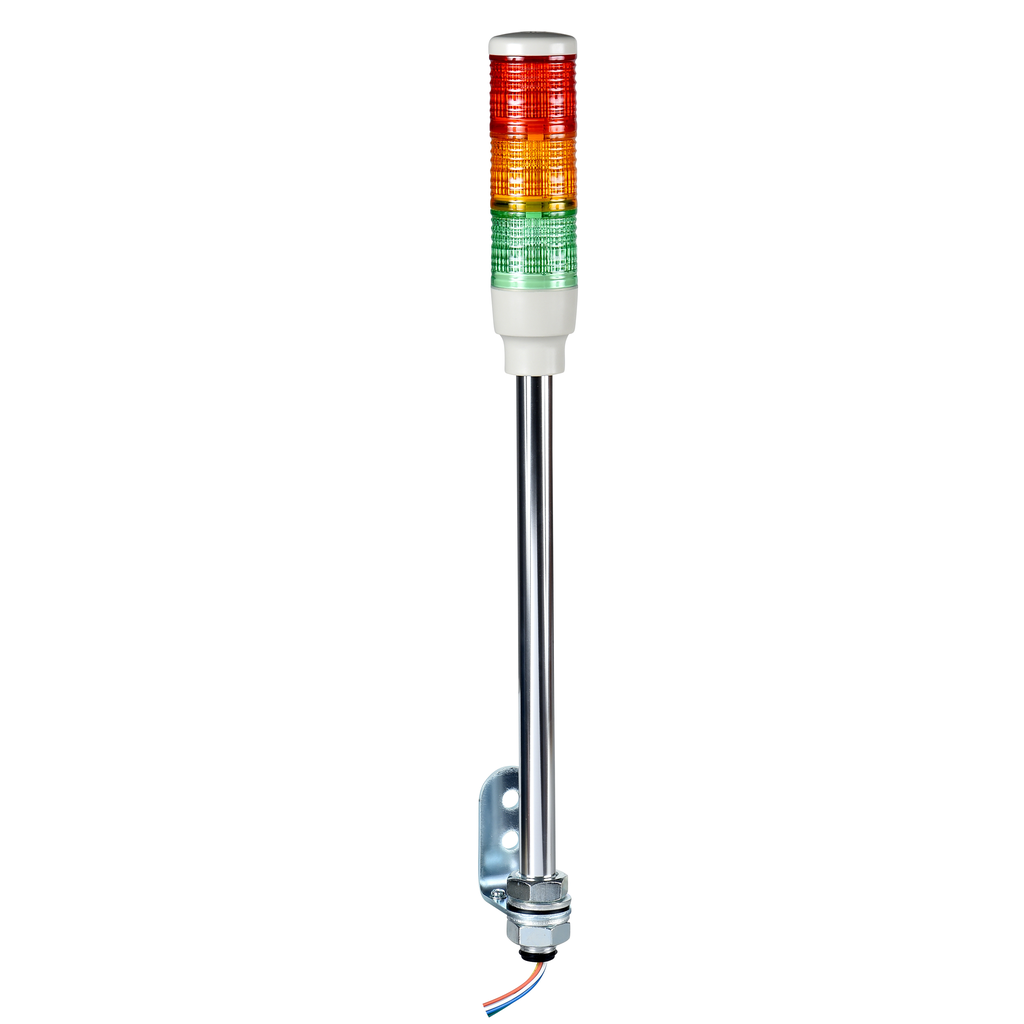

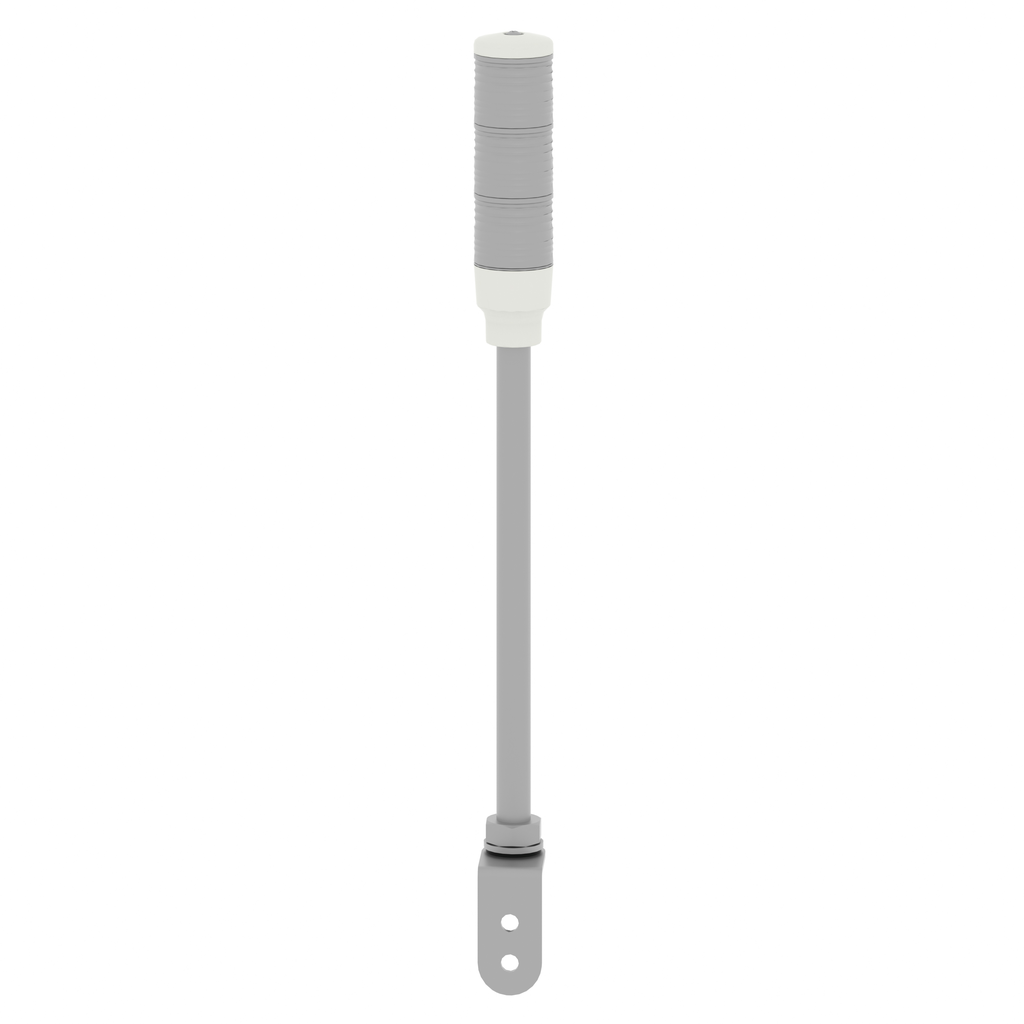

Monolithic precabled tower light, Harmony XVC, plastic, red orange green, 40mm, tube mounting, steady, IP23, 24V AC DC

• Range Of Product: Harmony XVC4
• Mounting Diameter: 40 mm
• Light Source: LED steady red || LED steady orange || LED steady green
• Product Or Component Type: complete pre-wired monolithic tower light
• Component Name: XVC
• Beacon Or Indicator Bank Unit Type: 3 illuminated units
• Supply Circuit Type: AC/DC
• Sound Signalling: without
• Device Short Name: XVC

Contractual warranty

• Warranty: 18 months

Complementary

• [Us] Rated Supply Voltage: 24 V
• Height: 473.5 mm
• [Uimp] Rated Impulse Withstand Voltage: 0.8 kV
• Flashing Frequency: 1 Hz
• Cable Length: 600 mm
• Marking: CE
• Net Weight: 0.54 kg
• Mounting Location: on support tube, 17 mm
• Current Consumption: 75 mA
• Awg Gauge: AWG 22
• Cable Cross Section: 0.33-0.33 mm²
• Product Mounting: on support tube, 17 mm
• Material: polycarbonate illuminated unit || ABS (acrylonitrile butadiene-styrene) base unit || PBT + ABS (UL94HB) top cover || SGP (chromium-plated) support tube

Offer Sustainability

• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP1904008EN
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• China Rohs Regulation: X
• Circularity Profile: ENVEOLI1904008EN
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)

Environment

• Product Certifications: UL
• Ambient Air Temperature For Operation: -10-50 °C
• Standards: EN/IEC 61000-6-3 || EN/IEC 61000-6-2
• Ip Degree Of Protection: IP23 vertical surface installation EN/IEC 60529
• Ambient Air Temperature For Storage: -35-70 °C
• Overvoltage Category: class I EN/IEC 61140
• Electrical Shock Protection Class: class I EN/IEC 61140
• Protective Treatment: TC
