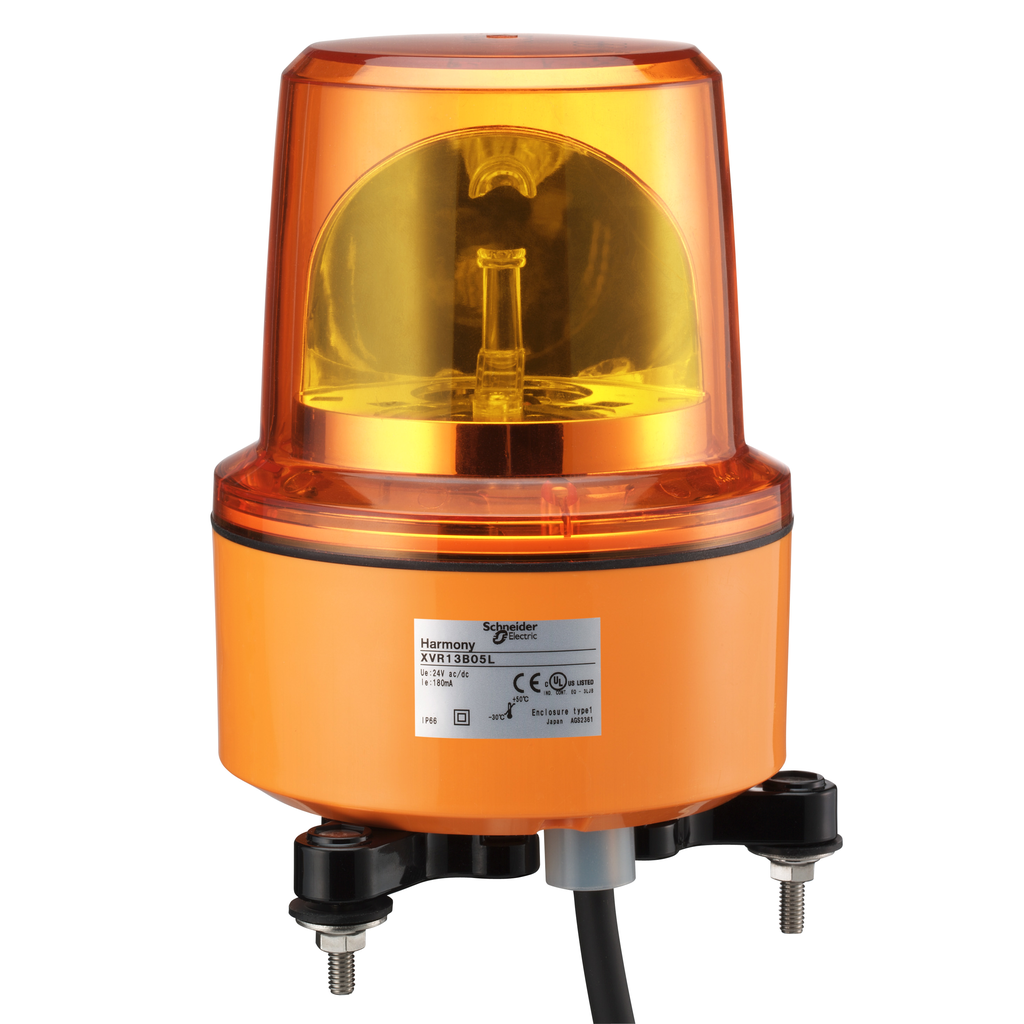

Rotating beacon, Harmony XVR, 130mm, orange, without buzzer, 24V AC DC

• Range Of Product: Harmony XVR
• Mounting Diameter: 130 mm
• Light Source: high luminosity LED, orange
• Product Or Component Type: prewired rotating mirror beacon
• Sound Signalling: without
• Device Short Name: XVR
• Ip Degree Of Protection: IP66 IEC 60529 || IP67 IEC 60529
• [Us] Rated Supply Voltage: 24 V AC/DC

Contractual warranty

• Warranty: 18 months

Complementary

• Awg Gauge: AWG 18
• Clamping Connection Capacity: 1.25 mm²
• Flashing Frequency: 2.7 Hz
• Product Mounting: by 3 M6 screws
• Material: ABS (acrylonitrile butadiene-styrene) body part || PC globe
• Cable Length: 400 mm
• Marking: CE
• Cad Overall Width: 130 mm
• Cad Overall Depth: 130 mm
• Net Weight: 0.82 kg
• [Uimp] Rated Impulse Withstand Voltage: 0.8 kV
• Current Consumption: 125 mA

Offer Sustainability

• China Rohs Regulation: X
• Circularity Profile: ENVEOLI1402018EN
• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP1402018EN
• Sustainable Offer Status: Green Premium product
• Toxic Heavy Metal Free: Yes
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Environment

• Ambient Air Temperature For Operation: -30-50 °C
• Ambient Air Temperature For Storage: -35-70 °C
• Standards: EN/IEC 61000-6-2 || EN/IEC 61000-6-4
• Electrical Shock Protection Class: class II IEC 61140
• Protective Treatment: TC
