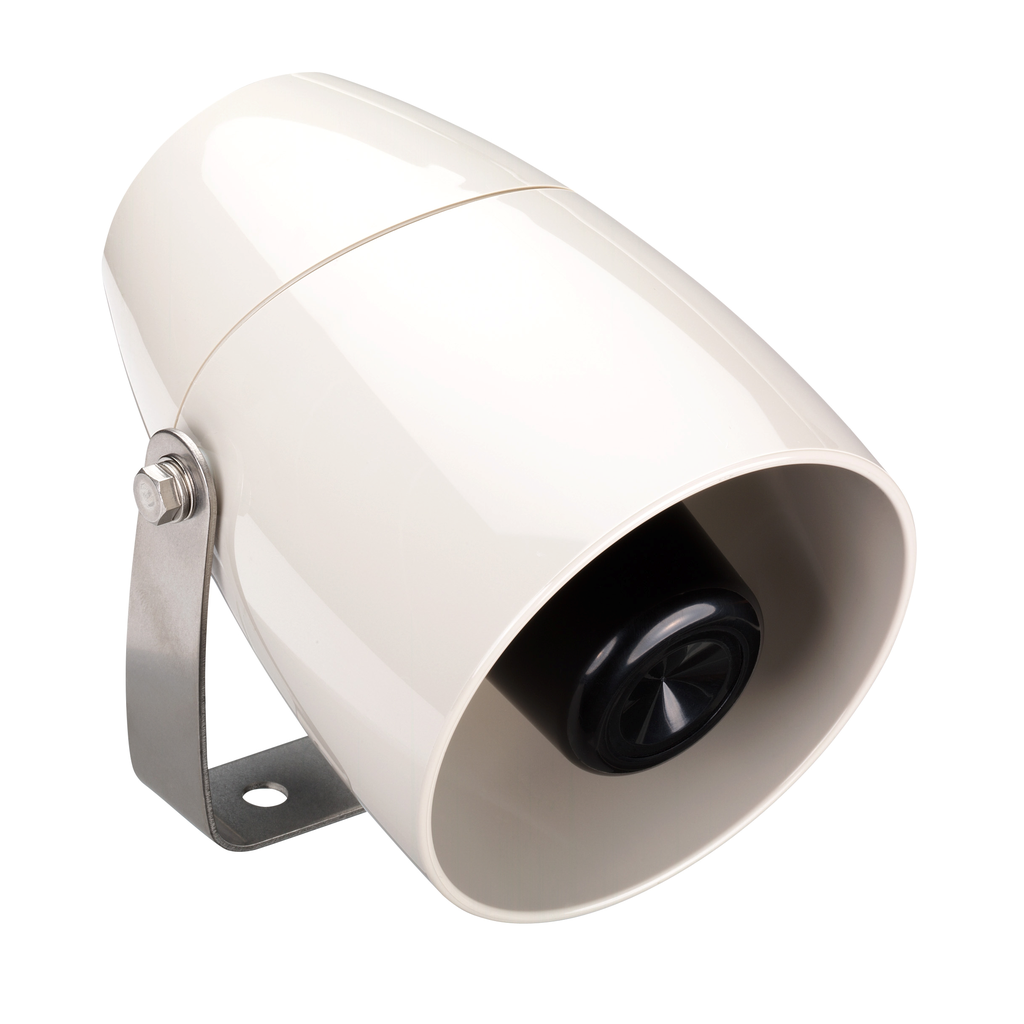

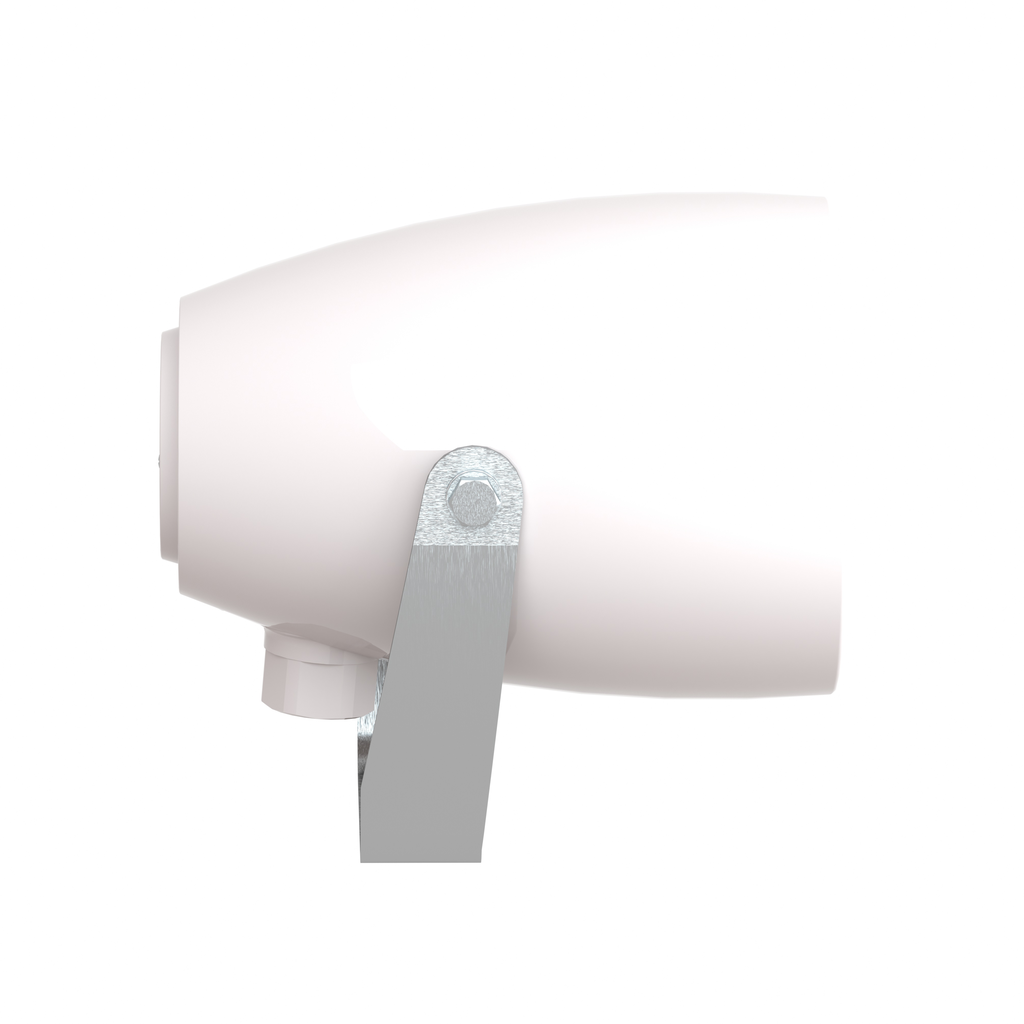

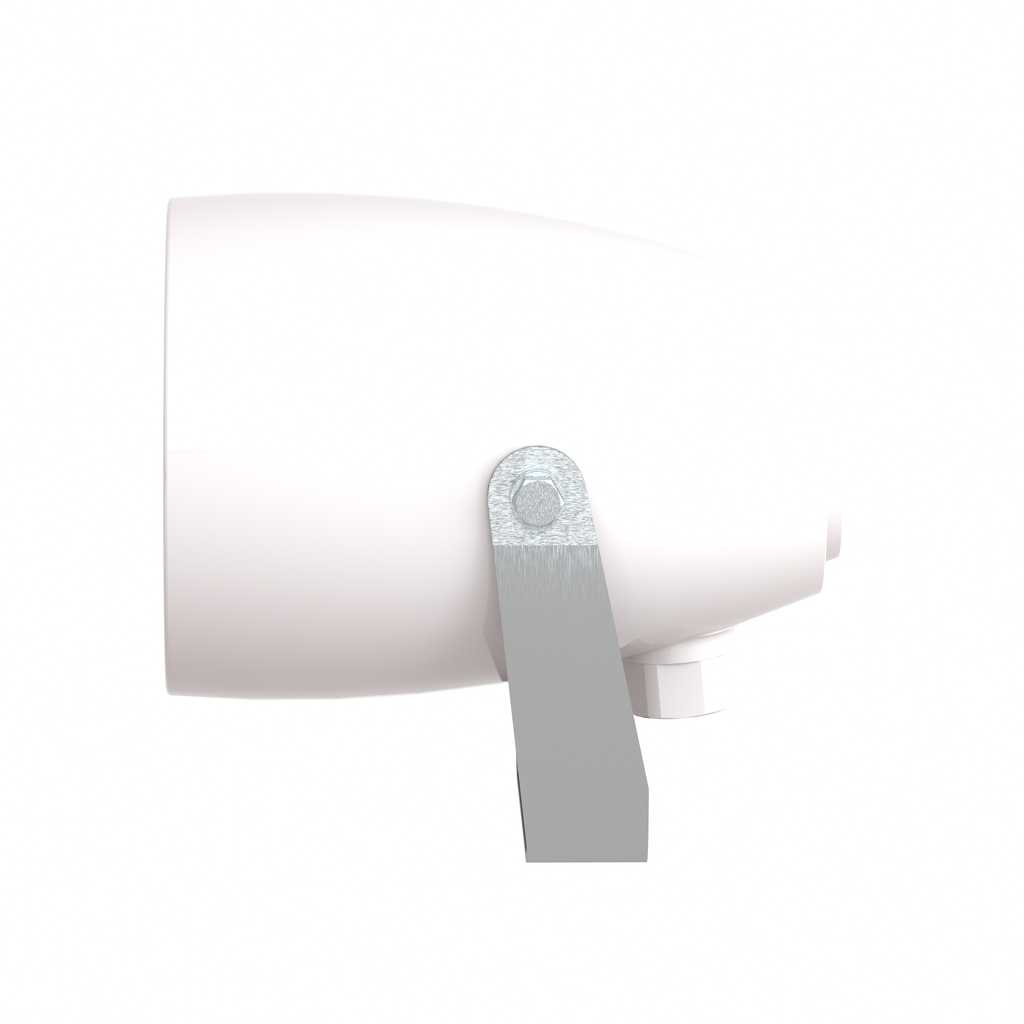

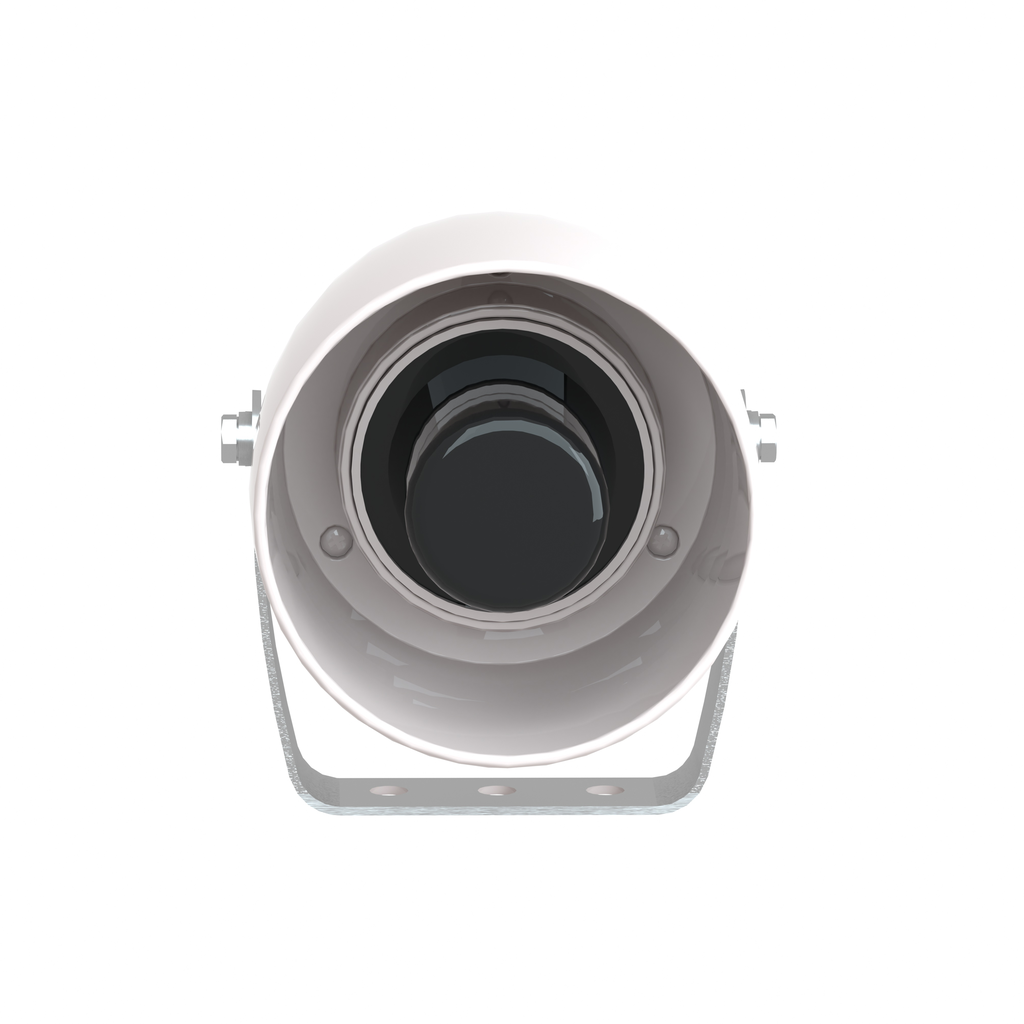

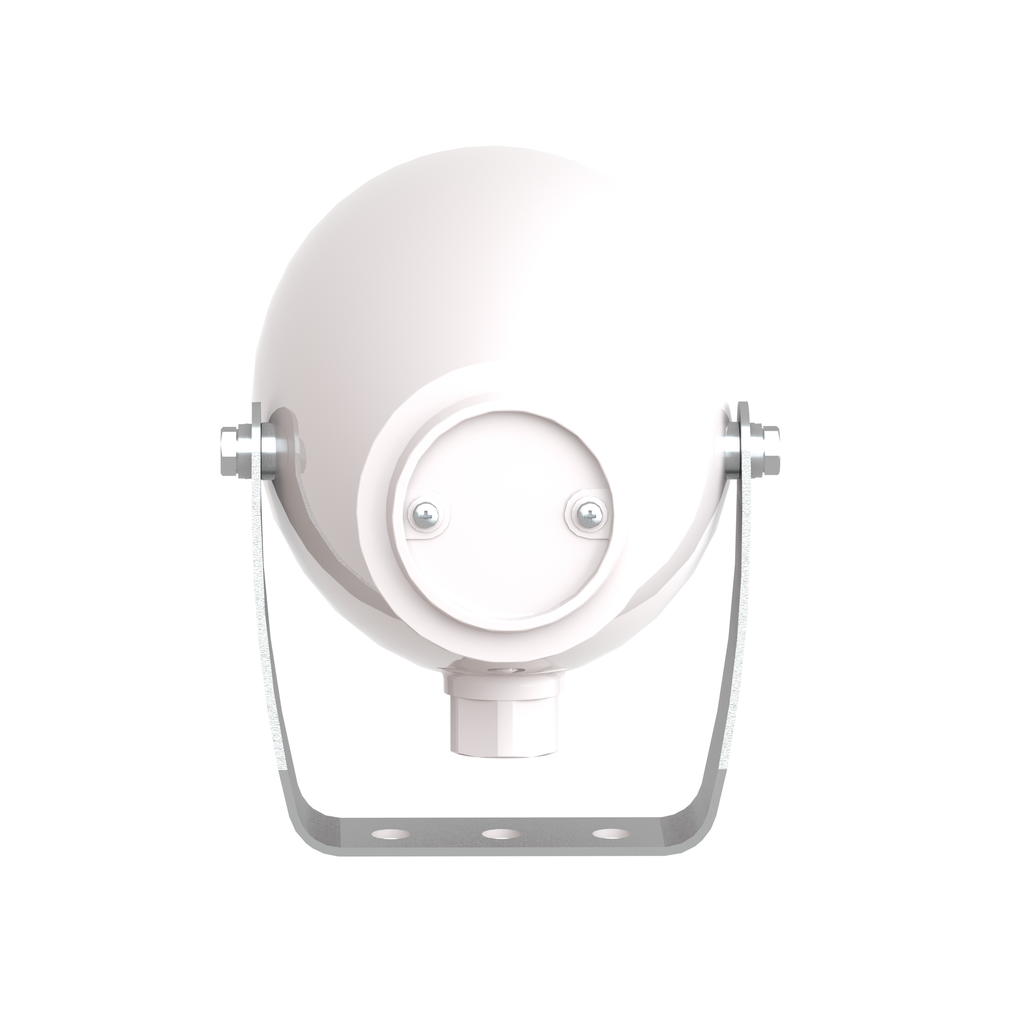

Multisound siren, Harmony XVS, white colour, 106dB, 2tones, 120V AC

• Range Of Product: Harmony XVS
• Product Or Component Type: siren
• Color: White
• Signalling Type: 2 tones siren
• Noise Level: 106-106 dB continuous or intermittent tone)1 m
• [Us] Rated Supply Voltage: 120 V AC
• Device Short Name: XVS

Contractual warranty

• Warranty: 18 months

Complementary

• Height: 114 mm
• Clamping Connection Capacity: <= 1 x 1.5 mm²
• Current Consumption: 80 mA 120 V
• Marking: CE
• Net Weight: 1 kg
• [Uimp] Rated Impulse Withstand Voltage: 4 kV
• Electrical Connection: cable 6.5-8.5 mm
• Material: PC body
• Width: 114 mm
• Depth: 153.2 mm

Offer Sustainability

• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP1411024EN
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• China Rohs Regulation: X
• Circularity Profile: ENVEOLI1411024EN
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)

Environment

• Ambient Air Temperature For Operation: -30-50 °C
• Standards: EN/IEC 60947-1 || EN/IEC 60947-5-1
• Ip Degree Of Protection: IP53
• Ambient Air Temperature For Storage: -35-70 °C
• Electrical Shock Protection Class: class II EN/IEC 61140
• Protective Treatment: TC
