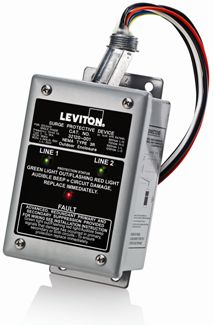

Type 2 3-Phase Surge Panel

• Leviton’s Surge Protection Devices can be used individually or as part of a coordinated application strategy, to protect sensitive electronic equipment, in industrial, commercial and residential locations, from the stress and degradation inflicted by voltage transients. Leviton Surge Protection Devices are compliant with UL 1449 Standards. Leviton’s outstanding Surge Protection Devices divert damaging voltage transients, or surges, away from electronic equipment. Transients are diverted away from sensitive micro circuitry, providing protection against catastrophic failure, costly downtime and data disruptions.

• Country of Origin: Mexico

Electrical Specifications

• EMI/RFI Noise Rejection: (-20 to -40 @ 1.5K - 1.2MHz)
• Frequency: 50/60Hz
• Recommended Circuit Breaker Rating: 30A, 277/480V
• Surge Technology: 40mm MOV Design
• Voltage Configuration: 220/380 V or 277/480 V, 3-Phase WYE; 240 V or 480 V, 3-Phase Delta

Environmental Specifications

• Enclosure: Type 3R
• Flammability: Rated V-2 per UL 94
• Operating Temperature: -10°C to 60°C
• Relative Humidity: 5% to 95% non-condensing
• Storage Temperature Range: -20C to 85C

Material Specifications

• Outer Enclosure: Powder Coated Steel

Mechanical Specifications

• Connection Type: Parallel - Hardwired via 12 AWG Wire
• Remote Monitoring: Dry Contact Leads-N.O./N.C. Form C Rated at 7Amps @ 240VAC or 30 VDC
• Surge Counter: No

Product Features

• Diagnostics: LED
• MCOV: 320V AC
• Replaceable Modules: No
• UL1449 Impluse 6kV/500A L-N/N-G/L-L: 900/800/1500

Performance Data

• MCOV L-G: 640
• MCOV L-L: 552
• MCOV L-N: 320
• MCOV N-G: 320
• Maximum Surge Current, Per Mode (Per Phase): 80kA (160kA)
• Nominal Discharge Current Rating: 3kA
• Short Circuit Current Rating: 100kA
• VPR L-G: 2000
• VPR L-L: 1800
• VPR L-N: 1200
• VPR N-G: 1200

Standards and Certifications

• ANSI/IEEE Category A, B & C: C-62.41 & 62.45
• UL 1449 4th Edition: cULus Listed Type 2

Warranty

• Warranty: 5-Year Limited
