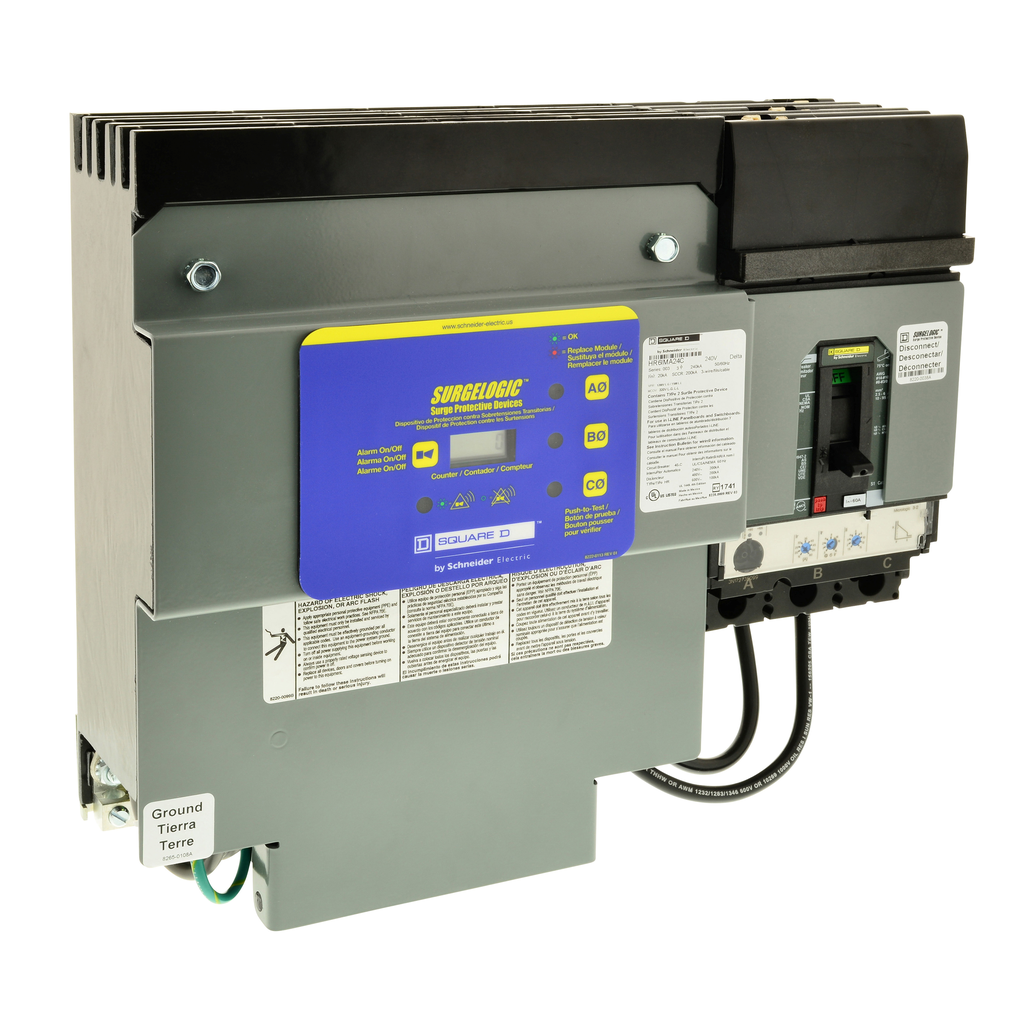

Product Description
- Range Of Product: Surgelogic
- Breaking Capacity Code: HR
- Product Or Component Type: surge protection device
- Device Short Name: IMA
Complementary
- Height: 308.9 mm
- Local Signalling: status LED green per phase normal operation || status LED red per phase fault
- Breaking Capacity: 100 kA
- Connections - Terminals: I-Line line || lugs ground AWG 6 copper 4 N.m || lugs neutral AWG 6 copper 4 N.m
- Short-Circuit Protection: 200 kA
- Mounting Support: panel mounting
- Cable Length: 483 mm
- Provided Equipment: alarm enable/disable switch || surge counter || circuit-breaker
- [Uc] Maximum Continuous Operating Voltage: 700 V
- Line Rated Current: 60 A
- Surge Current: 160 kA
- Wiring Configuration: 3-wire
- Width: 341.9 mm
- Depth: 142.1 mm
- Phase: 3 phase
- Trip Unit Technology: electronic
- Number Of Poles: 3
- [Ue] Rated Operational Voltage: 600 V delta AC
Offer Sustainability
- China Rohs Regulation: Product out of China RoHS scope. Substance declaration for your information.
- Rohs Exemption Information: Yes
- Mercury Free: Yes
- Eu Rohs Directive: Compliant
- Reach Regulation: Reference contains Substances of Very High Concern above the threshold
- California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Environment
- Nema Degree Of Protection: NEMA 1
- Standards: UL 1449:ed. 3 || CSA C22.2 No 8:1986 || UL 96A:ed. 12 || UL 489:ed. 11 || CSA C22.2 No 5-09
