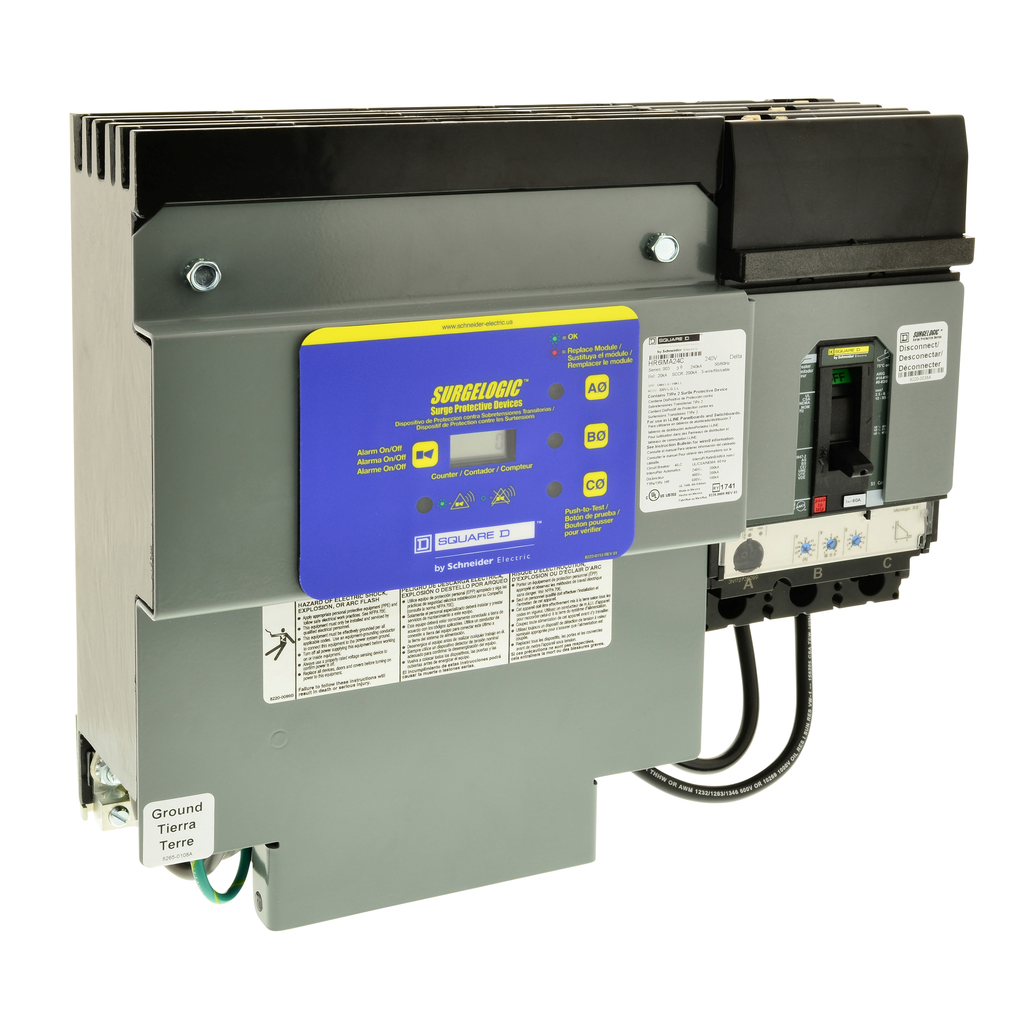

Surge protection device, Surgelogic, HR, 180kA, 600 VAC delta, 3 phase, 3 wire, SPD type 1

• Range Of Product: Surgelogic
• Breaking Capacity Code: HR
• Product Or Component Type: surge protection device
• Device Short Name: IMA

Complementary

• Height: 308.9 mm
• Local Signalling: status LED green per phase normal operation || status LED red per phase fault
• Breaking Capacity: 100 kA
• Connections - Terminals: I-Line line || lugs ground AWG 6 copper 4 N.m || lugs neutral AWG 6 copper 4 N.m
• Short-Circuit Protection: 200 kA
• Mounting Support: panel mounting
• Cable Length: 483 mm
• Provided Equipment: alarm enable/disable switch || surge counter || circuit-breaker
• [Uc] Maximum Continuous Operating Voltage: 700 V
• Line Rated Current: 60 A
• Surge Current: 180 kA
• Wiring Configuration: 3-wire
• Width: 341.9 mm
• Depth: 142.1 mm
• Phase: 3 phase
• Trip Unit Technology: electronic
• Number Of Poles: 3
• [Ue] Rated Operational Voltage: 600 V delta AC

Offer Sustainability

• China Rohs Regulation: Product out of China RoHS scope. Substance declaration for your information.
• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Eu Rohs Directive: Compliant
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Environment

• Nema Degree Of Protection: NEMA 1
• Standards: UL 1449:ed. 3 || CSA C22.2 No 8:1986 || UL 96A:ed. 12 || UL 489:ed. 11 || CSA C22.2 No 5-09
