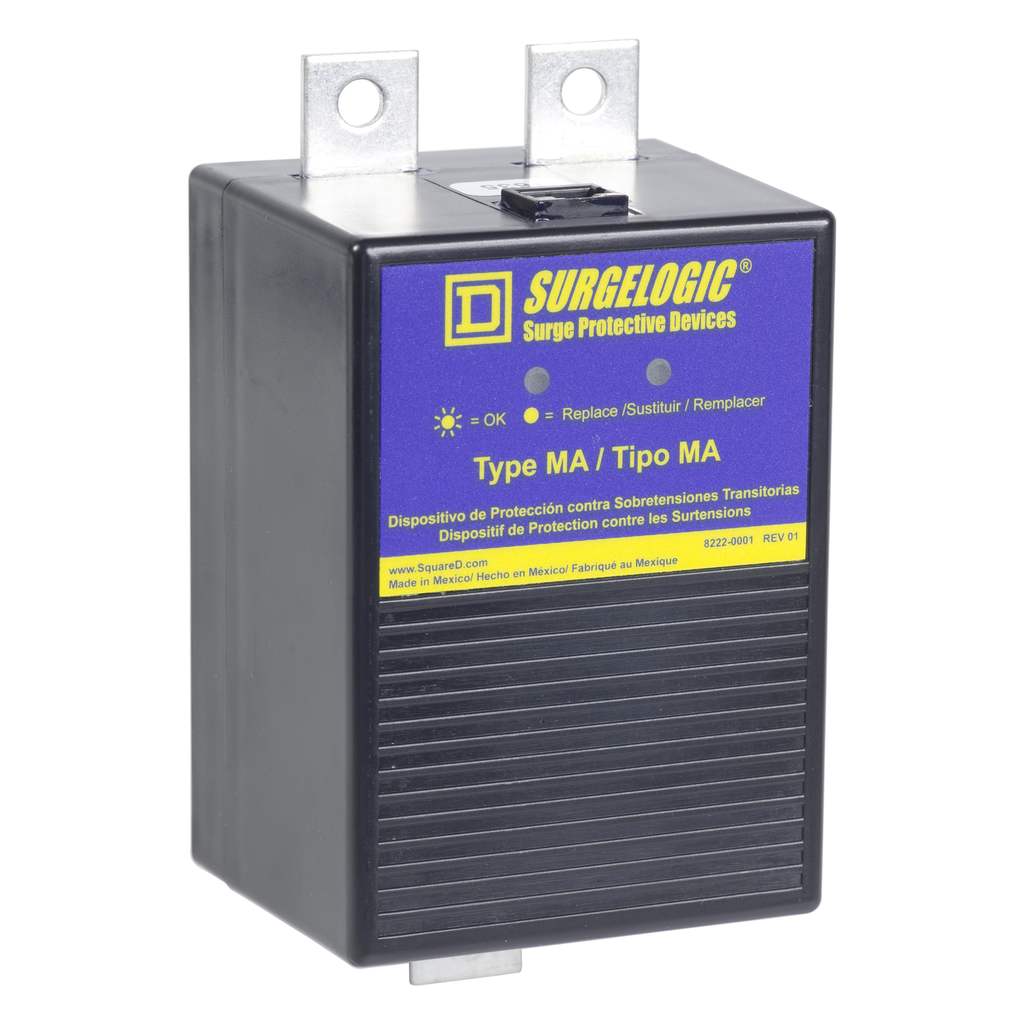

Surge protection module, Surgelogic, MA, 240kA, 480Y/277 VAC, 3 phase, 4 wire, SPD type 1, HRG

• Range Of Product: Surgelogic
• Accessory / Separate Part Category: replacement part
• Product Or Component Type: surge protection module
• Device Short Name: HRG || IMA

Complementary

• Height: 158.8 mm
• Local Signalling: status LED green normal operation
• Connections - Terminals: terminals
• Short-Circuit Protection: 200 kA
• Mounting Support: panel mounting
• Provided Equipment: alarm enable/disable switch
• [Uc] Maximum Continuous Operating Voltage: 320 V
• Surge Current: 240 kA
• Wiring Configuration: 4-wire
• Width: 82.8 mm
• Depth: 68.3 mm
• Nominal Discharge Current: 20 kA
• Phase: 3 phase
• [Ue] Rated Operational Voltage: 480Y/277 V AC

Offer Sustainability

• Eu Rohs Directive: Under investigation
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Environment

• Nema Degree Of Protection: NEMA 1
• Enclosure Material: Black Plastic
• Standards: UL 1449:ed. 4 || UL 1283:ed. 5 || CSA C22.2 No 8:1986 || ANSI/IEEE C62.41 || ANSI/IEEE C62.45 || NEC 285
