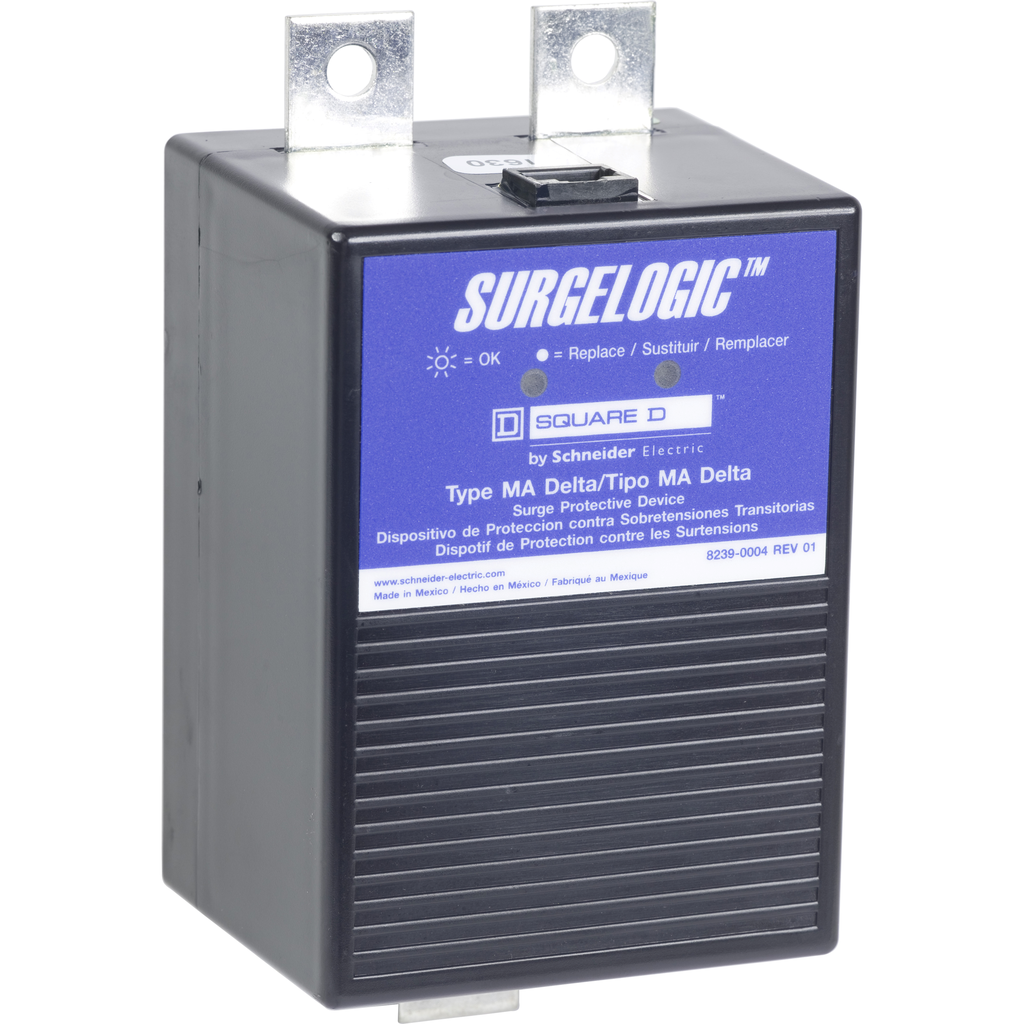

Surge protection module, Surgelogic, MA, 240kA, 480VAC delta, 3 phase, 3 wire, SPD type 2

• Range Of Product: Surgelogic
• Accessory / Separate Part Category: replacement part
• Product Or Component Type: surge protection module
• Device Short Name: IMA

Contractual warranty

• Warranty: 18 months

Complementary

• Height: 158.8 mm
• Connections - Terminals: terminals
• Mounting Support: panel mounting
• Provided Equipment: alarm enable/disable switch
• Surge Current: 240 kA per phase
• Nominal Discharge Current: 20 kA
• Phase: 3 phase
• Local Signalling: status LED green normal operation
• Short-Circuit Protection: 200 kA
• [Uc] Maximum Continuous Operating Voltage: 550 V
• Width: 82.8 mm
• Wiring Configuration: 3-wire
• Depth: 68.3 mm
• [Ue] Rated Operational Voltage: 480 V delta AC

Offer Sustainability

• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• China Rohs Regulation: Product out of China RoHS scope. Substance declaration for your information.
• Eu Rohs Directive: Compliant

Environment

• Ambient Air Temperature For Operation: 65-65 °C
• Standards: UL 1449:ed. 4 || UL 1283:ed. 5 || CSA C22.2 No 8:1986 || ANSI/IEEE C62.41 || ANSI/IEEE C62.45 || NEC 285
• Nema Degree Of Protection: NEMA 2
• Enclosure Material: Black Plastic
