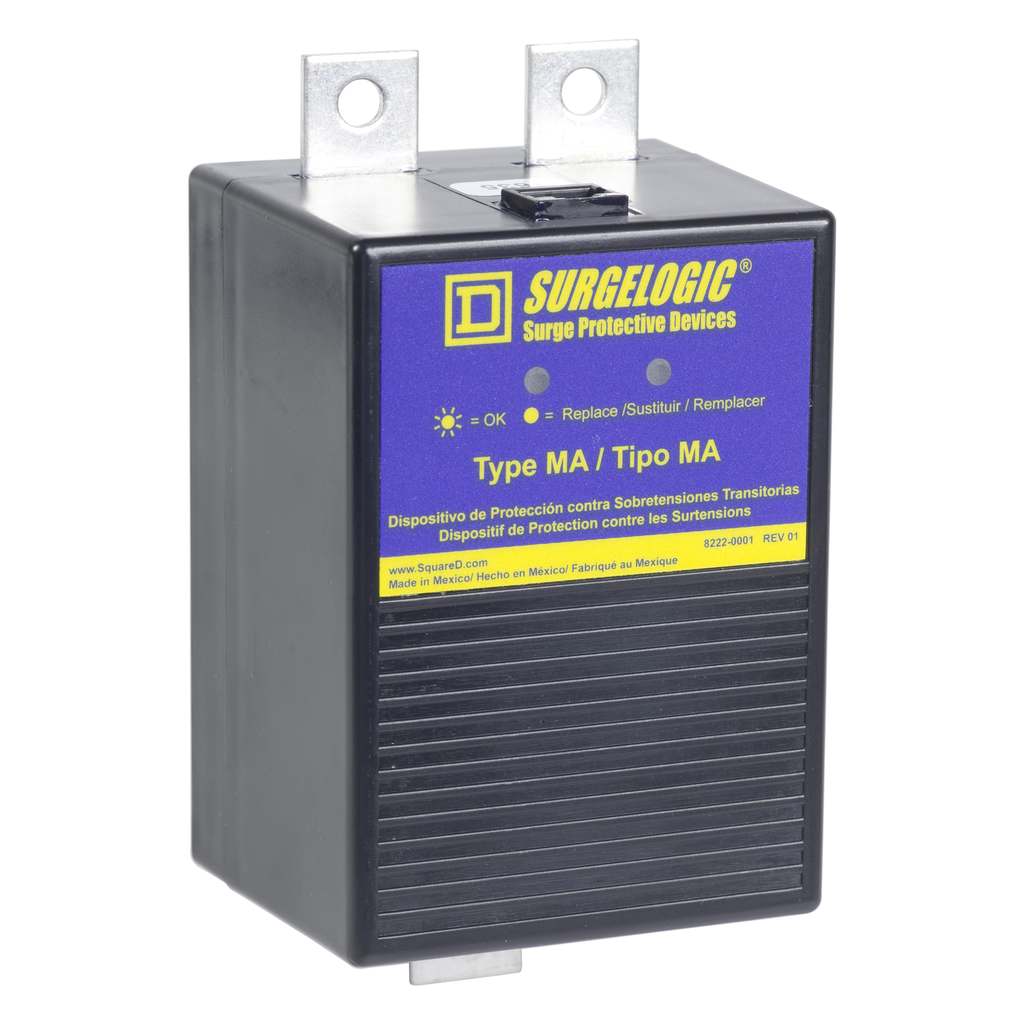

Surge protection module, Surgelogic, MA, 240kA, 480 VAC delta, 3 phase, 3 wire, SPD type 1

• Range Of Product: Surgelogic
• Accessory / Separate Part Category: replacement part
• Product Or Component Type: surge protection module
• Device Short Name: IMA

Complementary

• Height: 158.8 mm
• Local Signalling: status LED green normal operation
• Connections - Terminals: terminals
• Short-Circuit Protection: 200 kA
• Mounting Support: panel mounting
• Provided Equipment: alarm enable/disable switch
• [Uc] Maximum Continuous Operating Voltage: 550 V
• Surge Current: 240 kA per phase
• Wiring Configuration: 3-wire
• Width: 82.8 mm
• Depth: 68.3 mm
• Nominal Discharge Current: 20 kA
• Phase: 3 phase
• [Ue] Rated Operational Voltage: 480 V delta AC

Offer Sustainability

• China Rohs Regulation: Product out of China RoHS scope. Substance declaration for your information.
• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Eu Rohs Directive: Compliant
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Environment

• Ambient Air Temperature For Operation: 65-65 °C
• Nema Degree Of Protection: NEMA 1
• Enclosure Material: Black Plastic
• Standards: UL 1449:ed. 4 || UL 1283:ed. 5 || CSA C22.2 No 8:1986 || ANSI/IEEE C62.41 || ANSI/IEEE C62.45 || NEC 285
