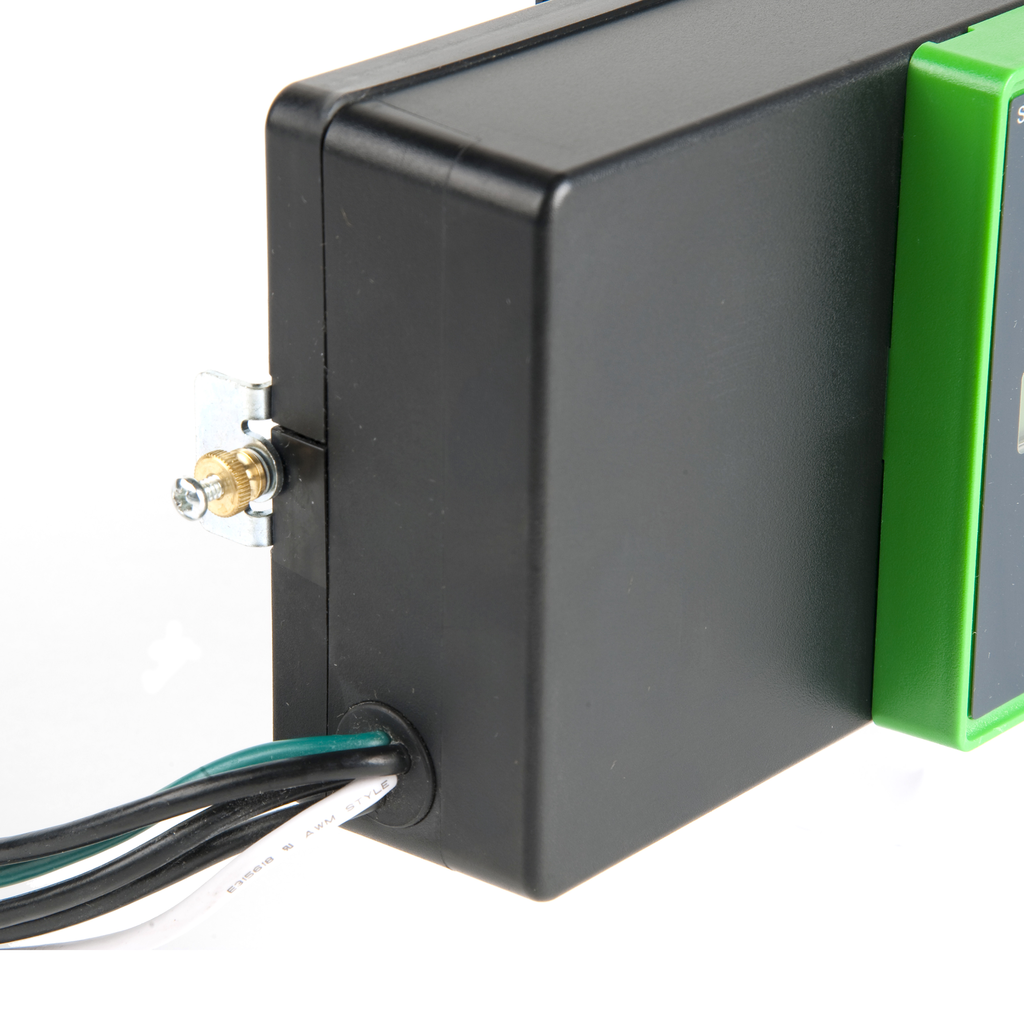

Surge protection device, Surgelogic, Surgeloc, 240kA, 208Y/120VAC, 3 phase, 4 wire, SPD type 1

• Range Of Product: Surgelogic
• Product Or Component Type: surge protection device

Complementary

• Input Voltage: 600 V N - G || 700 V L-N || 700 V L - G || 1000 V L - L
• Height: 111.76 mm
• Short-Circuit Protection: 200 kA
• [Uc] Maximum Continuous Operating Voltage: 150 V
• Surge Current: 240 kA per phase
• Wiring Configuration: 4-wire
• Width: 454.66 mm
• Depth: 175.26 mm
• Type Of Packing: box
• Phase: 3 phase
• Net Weight: 3.67 kg
• [Ue] Rated Operational Voltage: 208Y/120 V AC

Offer Sustainability

• Eu Rohs Directive: Under investigation
• California Proposition 65: WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Environment

• Nema Degree Of Protection: NEMA 1
