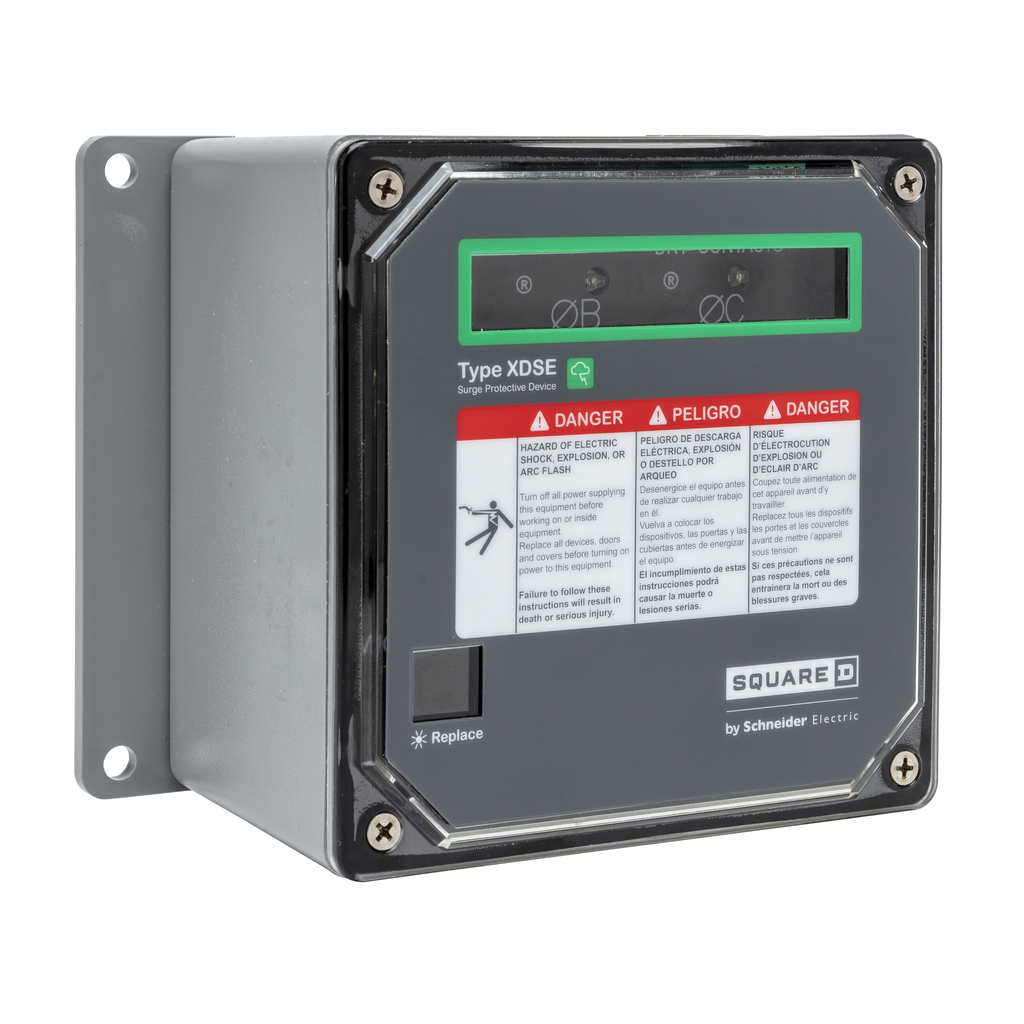

Surge protection device, XDSE, 200kA, 480 VAC delta, 3 phase, 3 wire, SPD type 2

• Product Or Component Type: surge protection device

Complementary

• Input Voltage: 1800 V L - G || 2000 V N - G
• Height: 152 mm
• [Uc] Maximum Continuous Operating Voltage: 552 V
• Line Rated Current: 20 kA
• Surge Current: 200 A per phase
• Wiring Configuration: 3-wire (isolated ground)
• Width: 152 mm
• Depth: 101 mm
• Phase: 3 phase
• [Ue] Rated Operational Voltage: 480 V delta AC

Offer Sustainability

• China Rohs Regulation: Product out of China RoHS scope. Substance declaration for your information.
• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Eu Rohs Directive: Compliant
• California Proposition 65: WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Environment

• Nema Degree Of Protection: NEMA 4X
