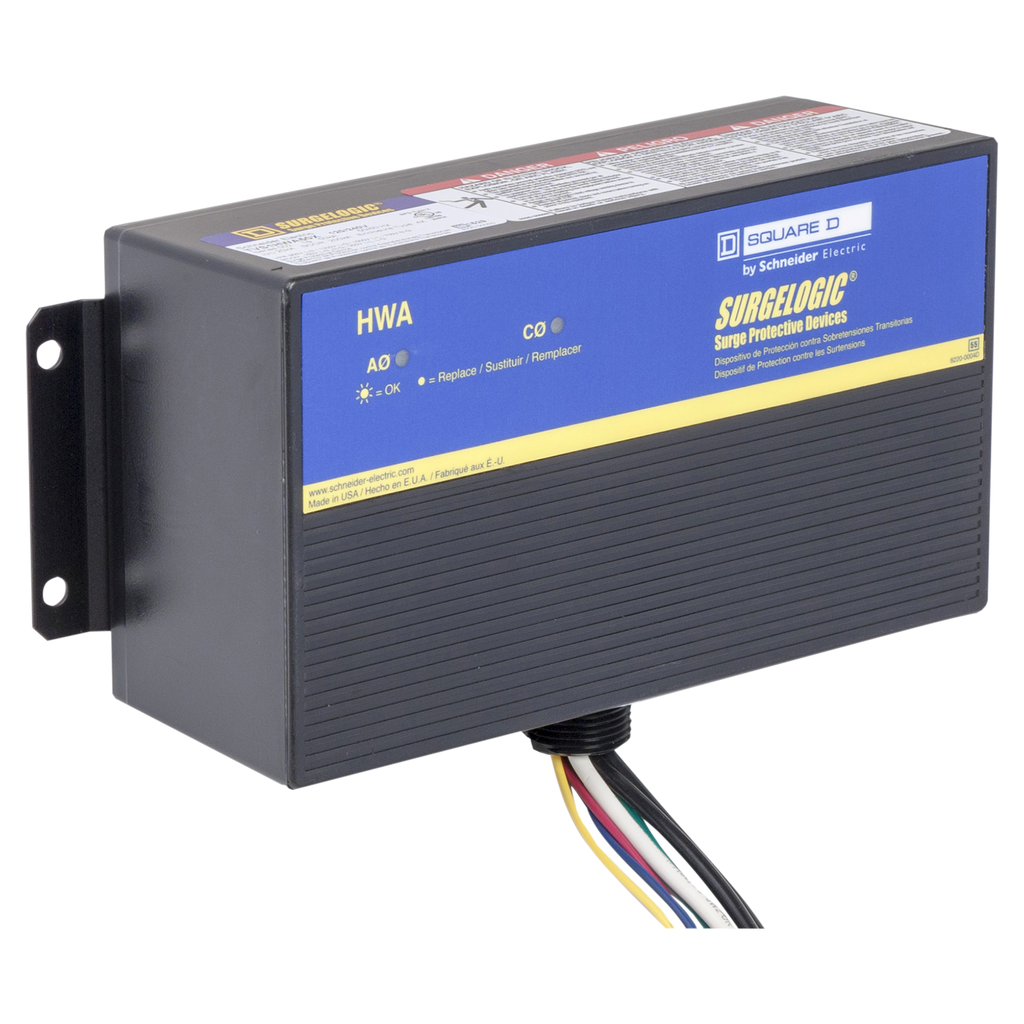

Surge protection device, Surgelogic, HWA, 100kA, 240VAC delta, 3 phase, 3 wire, NEMA 4X

• Range Of Product: Surgelogic
• Product Or Component Type: surge protection device
• Device Short Name: HWA

Contractual warranty

• Warranty: 10 years

Complementary

• Height: 122 mm
• Connections - Terminals: wire phase and neutral AWG 10 copper || wire ground AWG 10 copper || wire dry contacts AWG 22 copper
• Cable Length: 33.6 in
• Surge Current: 100 kA per phase
• Nominal Discharge Current: 20 kA
• Phase: 3 phase
• Mounting Location: bottom of enclosure
• Local Signalling: status LED green per phase normal operation || status LED red per phase fault || alarm fault
• Short-Circuit Protection: 200 kA
• [Uc] Maximum Continuous Operating Voltage: 300 V
• Width: 219 mm
• Wiring Configuration: 3-wire
• Depth: 79 mm
• Number Of Poles: 1
• [Ue] Rated Operational Voltage: 240 V delta AC
• Device Mounting: surface || flush fixing kit

Offer Sustainability

• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• China Rohs Regulation: Product out of China RoHS scope. Substance declaration for your information.
• Eu Rohs Directive: Compliant

Environment

• Ambient Air Temperature For Operation: 65-65 °C
• Standards: UL 1449:ed. 4 || UL 1283:ed. 5 || CSA C22.2 No 8:1986
• Nema Degree Of Protection: NEMA 4X
• Enclosure Material: Black Plastic
