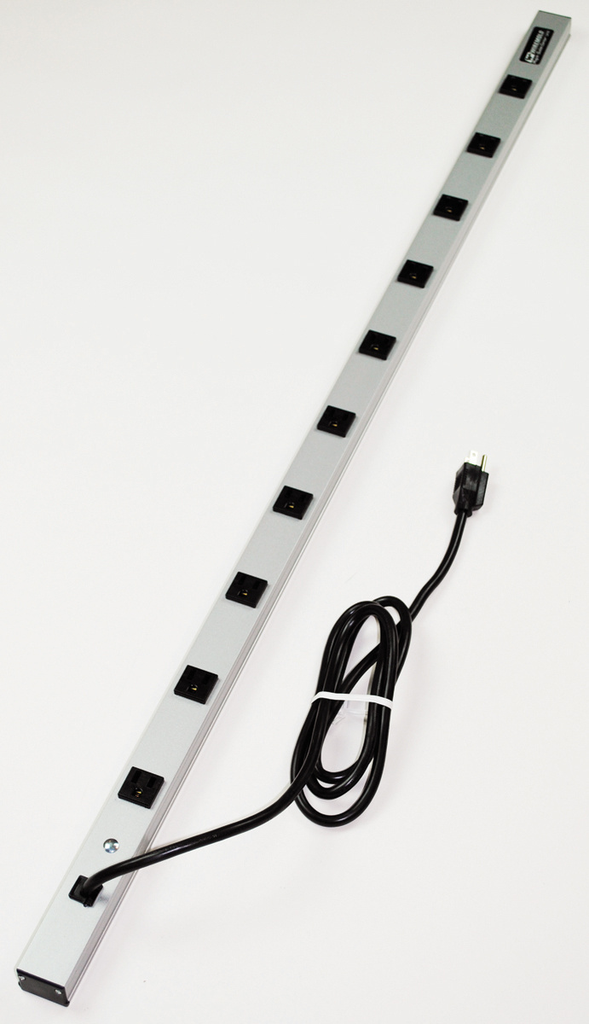

CabinetMate Plug-In Outlet Center Unit / 120V/15A / 48"" long / 10 O/L / 15' cord / Computer Grade Surge

• Ten outlets. 15' (4.6m) cord. Length 48"" (1.2m). 15A resettable circuit breaker. Computer grade surge protection, 15 Amps."

Certifications

• RoHS Compliant
• NAFTA Compliant
• cULus Listed

• Product Line: Wiremold

• Country of Origin: Mexico
• Special Features: All lines are protected. 600V UL1449 Voltage Protection Rating (VPR). EMI /RFI noise reduction. Space saving. Resettable circuit breaker.
• Type: PIOC
• Class: 75
• Amperage: 15A A
• Mounting: Yes
• Voltage: 600.0 V
• Phase: Single Stage
• Connection: Cord-ended
• Response Time: <1 ns
• Type of Indicators: Light
• Frequency Rating: +35dB Hz
• Mounting Type: Spring Clip
• Application Sector: Residential/Commercial
• Standard: cULus Listed: File E66421, Guide XYBS, XUHT, VZCA
• Short Circuit Rating: 36,000 Amps [12,000 Amps L-N, 12,000 Amps L-G, 12,000 Amps N-G]
