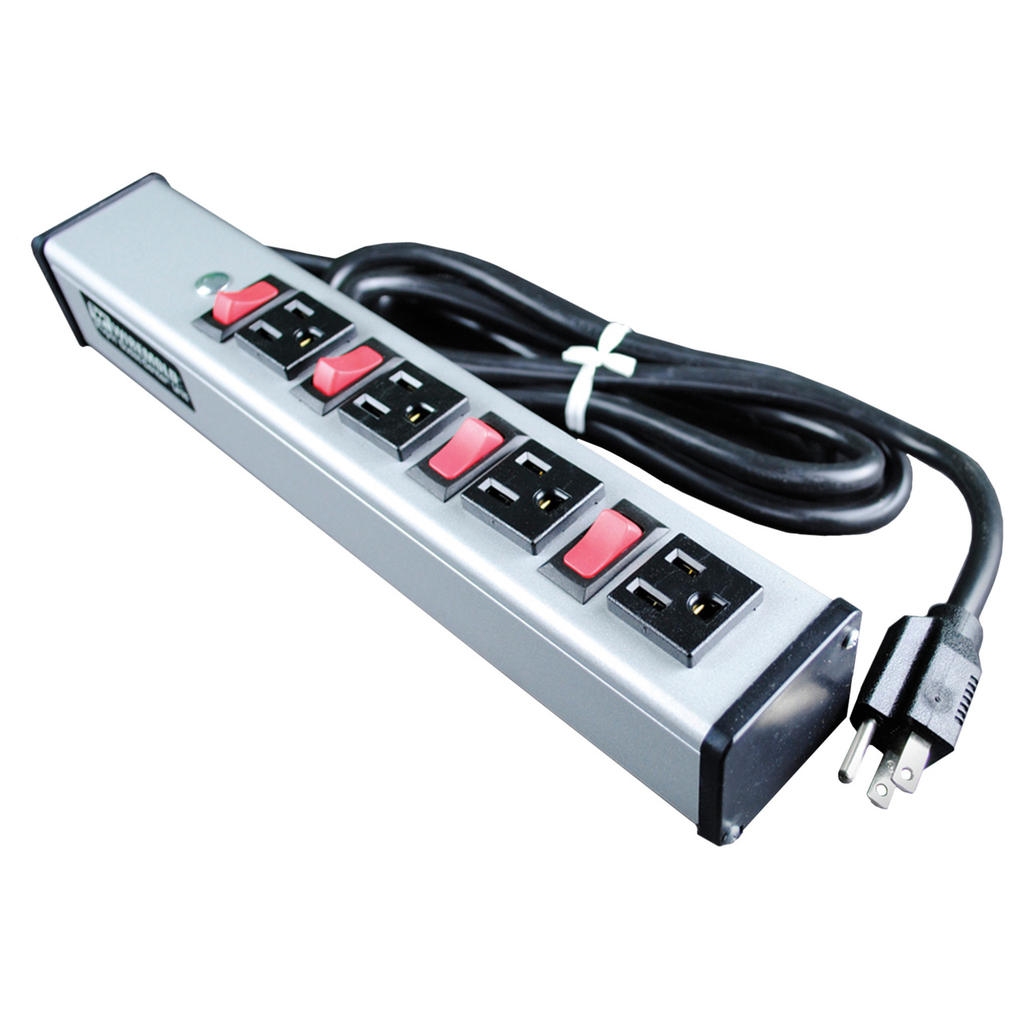

Plug-In Outlet Center Unit / 120V/15A/4 individually switched O/L /15' cord

Certifications

• RoHS Compliant
• NAFTA Compliant
• cULus Listed

• Four individually switched outlets, lighted on/off switch, rugged gray aluminum housing, 15A. 6' (1.8m) 14/3 SJT black cord with NEMA5-15 plug. Length 13'' (330mm), width 2'' (51mm). Receptacle center-to-center 2 1/8'' (54mm). Snap-on, slide-off mounting."

• Country of Origin: Mexico
• Special Features: Surge protection, EMI/RFI noise reduction, Space saving low profile, Protection indication, Resettable circuit breaker, Product warranty
• Type: PIOC
• Amperage: 15A A
• Phase: Single
• Voltage: 125.0 V
• Enclosure Type: Aluminum
• Receptacle Type: Simplex
• Frequency Rating: 60Hz Hz
• Application Sector: Commercial
• Number of Receptacles: 4.0
• Mounting Type: Snap-on, Slide-off
• Environmental Conditions: Dry interior locations
• Standard: cULus Recognized: File E66421, Guide XBYS, XUHT, VZCA

• Product Line: Wiremold
