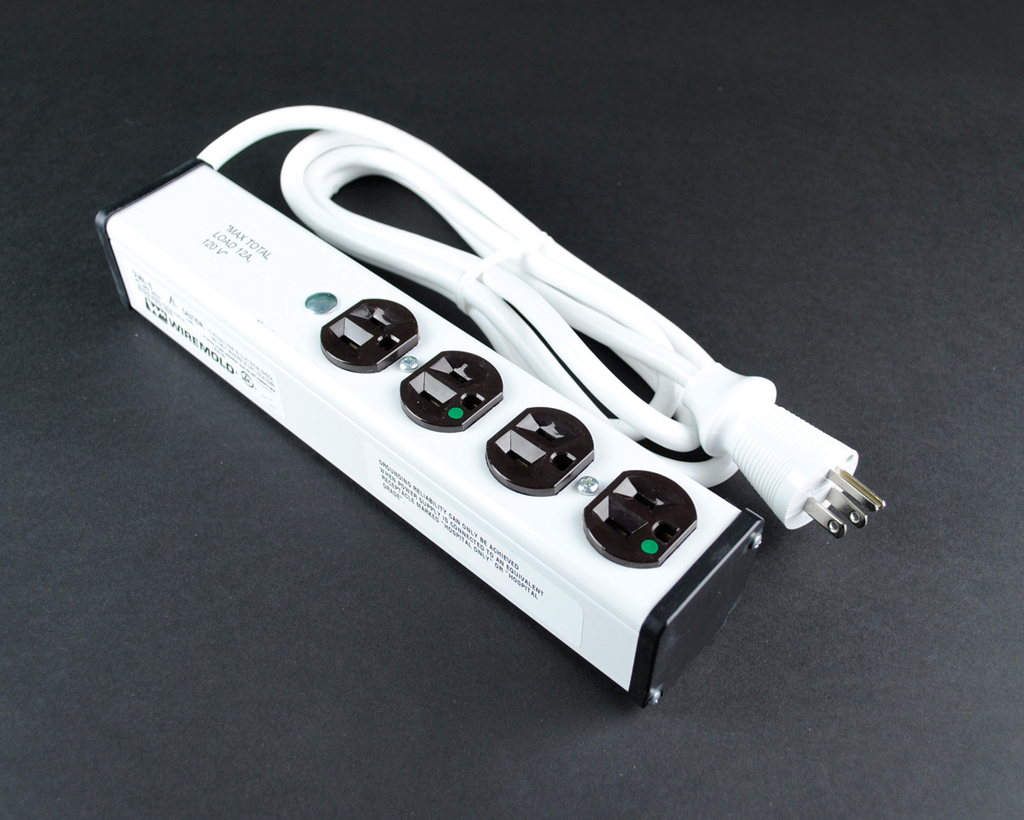

Medical Grade Plug-In Outlet Center Unit / APPROVED for Patient Care areas / 120V/15A / 4 O/L / 6' cord

Certifications

• NAFTA Compliant
• RoHS Compliant
• TUV Rheinland

• Four outlets. Rugged white aluminum housing. 6' (1.8m) 14/3 SJT white cord with NEMA5-15 plug. Length 10 3/4'' (237mm). Receptacle center-to-center 1 1/2'' (38mm). Snap-on, slide-off mounting. cTUVus Listed as Medical Electrical Equipment. NOTE: Suitable for use where Article 517 of NEC requires Hospital Grade Outlets."

• Country of Origin: Mexico
• Special Features: Surge protection, EMI/RFI noise reduction, Space saving low profile, Protection indication, Resettable circuit breaker, Product warranty
• Type: PIOC
• Phase: Single
• Enclosure Type: Aluminum
• Receptacle Type: Simplex
• Frequency Rating: 60Hz Hz
• Application Sector: Commercial
• Number of Receptacles: 4.0
• Mounting Type: Snap-on, Slide-off
• Environmental Conditions: Dry interior locations
• Standard: cULus Recognized: File E66421, Guide XBYS, XUHT, VZCA

• Product Line: Wiremold

Installation Instructions

Cutsheet
