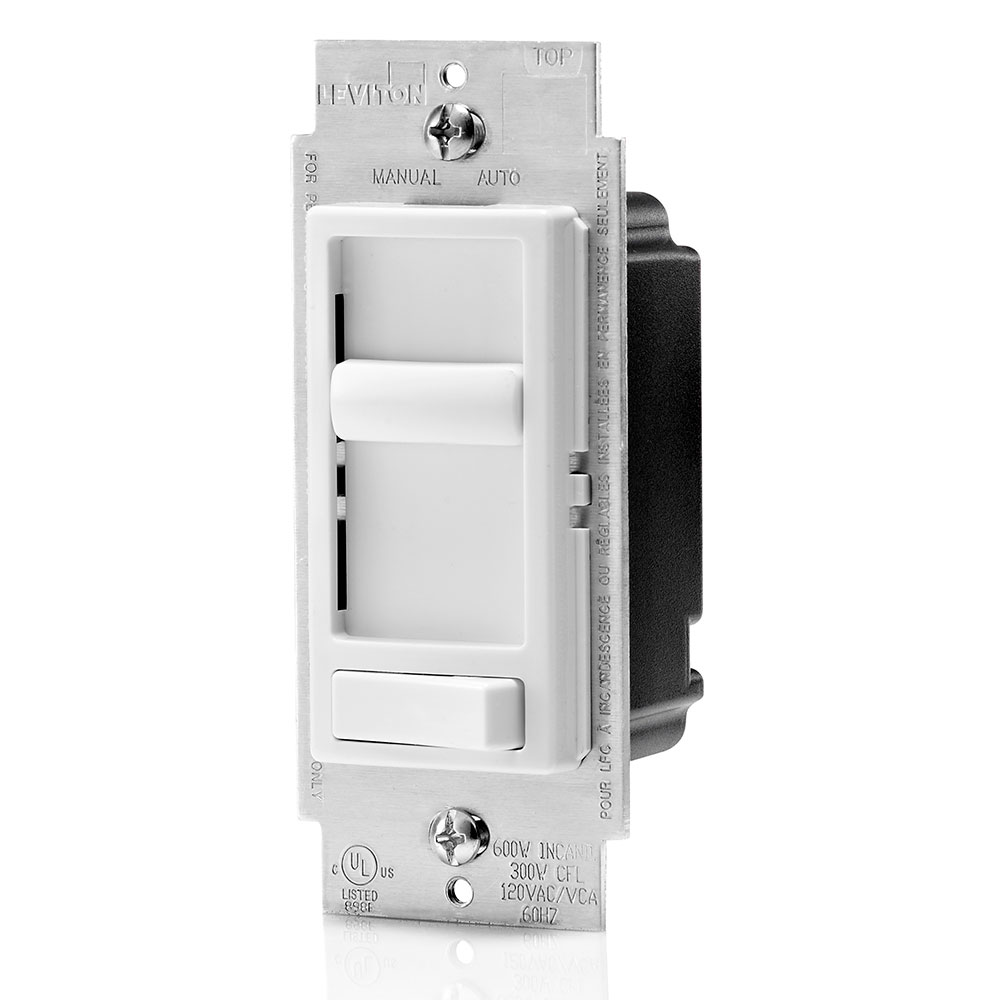

SureSlide Dimmer Switch for Dimmable LED, Halogen and Incandescent Bulbs

• INNOVATIVE – Designed to dim LED, CFL, incandescent and halogen bulbs
• ADVANCED – Adjustment switch to modify the minimum light level in order to maximize the dimming range if flickering occurs at lower dimming levels
• FLEXIBLE – Can be used in a single-pole or 3-way installation (with a 3-way switch, sold separately). No neutral wire required for installation
• CONVENIENT – Separate on/off switch allows you to set and keep preferred dimming level
• Integrated linear full-range slide control for easy, precise operation.
• Features a separate ON/OFF switch that preserves the selected brightness setting.
• Single pole or 3-way lighting control when used with a 3-way switch.
• Slim, compact housing fits easily into a standard wallbox and is suitable for multi-gang installations.
• Future-proof to control a variety of dimmable CFLand LED lamps.
• Backwards compatible with incandescent lamps.
• Built-in radio/TV interference filter.
• Can be used to comply with 2019 California Title 24, Part 6 Indoor Lighting Switching Devices and Controls
• Available colors: White, Ivory, Light Almond, Black and Brown.

Patents

• US8664886
• US9681526

Color Variations

• Black
• Brown
• Ivory
• Light Almond
• White

• Country of Origin: China

Product Features

• Action: Standard ON/OFF
• Available Colors: Ivry-I Wht- W Blk-E Brwn-B Light Almond-T
• California Title 24: Yes
• Color: Brown
• Frequency: 60 Hz
• Load Rating: 600W Incandescent, 150W LED and CFL
• Load Type: Incandescent, Dimmable LED, Dimmable CFL
• NEMA SSL 7A: Yes
• Ordering Notes: White
• Preset: Preset
• Protection: Radio/TV Filter
• Standards and Certifications: UL/CSA
• Style Name: SureSlide
• Switch Type: Single-Pole & 3-Way
• Type: Electro-Mechanical
• Voltage: 120 VAC
• Wallplate: Order Separately
• Warranty: 5-Year Limited

User Guide/Manual

Application Note

Instruction Sheet

Other Documents
