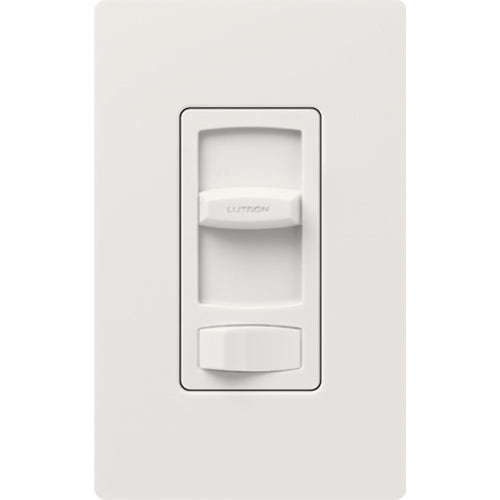

Skylark Contour Reverse-phase Dimmer with on/off switch, CFL/LED (Screw-based), Incandescent/Halogen, Electronic Low-voltage, 3-way/single-pole, 250W CFL/LED or 500W inc/hal/ELV

• Family/Collection: Skylark Contour
• Controls 120 V/250 W LED/CFL, and 500 W Inc and ELV loads. Paddle turns on/off. Slide up to brighten, down to dim.
• On / off rocker switch with a linear-slide dimmer for a standard designer wallplate opening
• UL Listed to control:Dimmable LED with integrated driver -Dimmable compact fluorescent (CFL) with integrated ballast-Incandescent/Halogen-Electronic Low-Voltage (ELV) transformers with halogen or LED
• Reverse-phase type control. Neutral wire connection is required in the wallbox.
• 100% Factory Tested

• Actuator: Paddle switch
• Application: Lighting Control
• Brand Name: Lutron
• Color: Light Almond
• Connection: Wire Leads
• Frequency Rating: 60
• Insulation: Plastic
• Material: Plastic/Metal
• Mounting: Wallbox
• Number Of Poles: 1
• Operating Temperature: 32 to 104
• Size: 4.69 x 2.94
• Special Features: Controls 120 V/250 W LED/CFL, and 500 W Inc and ELV loads. Paddle turns on/off. Slide up to brighten, down to dim.
• Standard: UL, CSA, NOM
• Sub Brand: Skylark Contour
• Type: Dimmer, reverse-phase, 3-way/single-pole
• Voltage Rating: 120
• Wattage: 250/500
