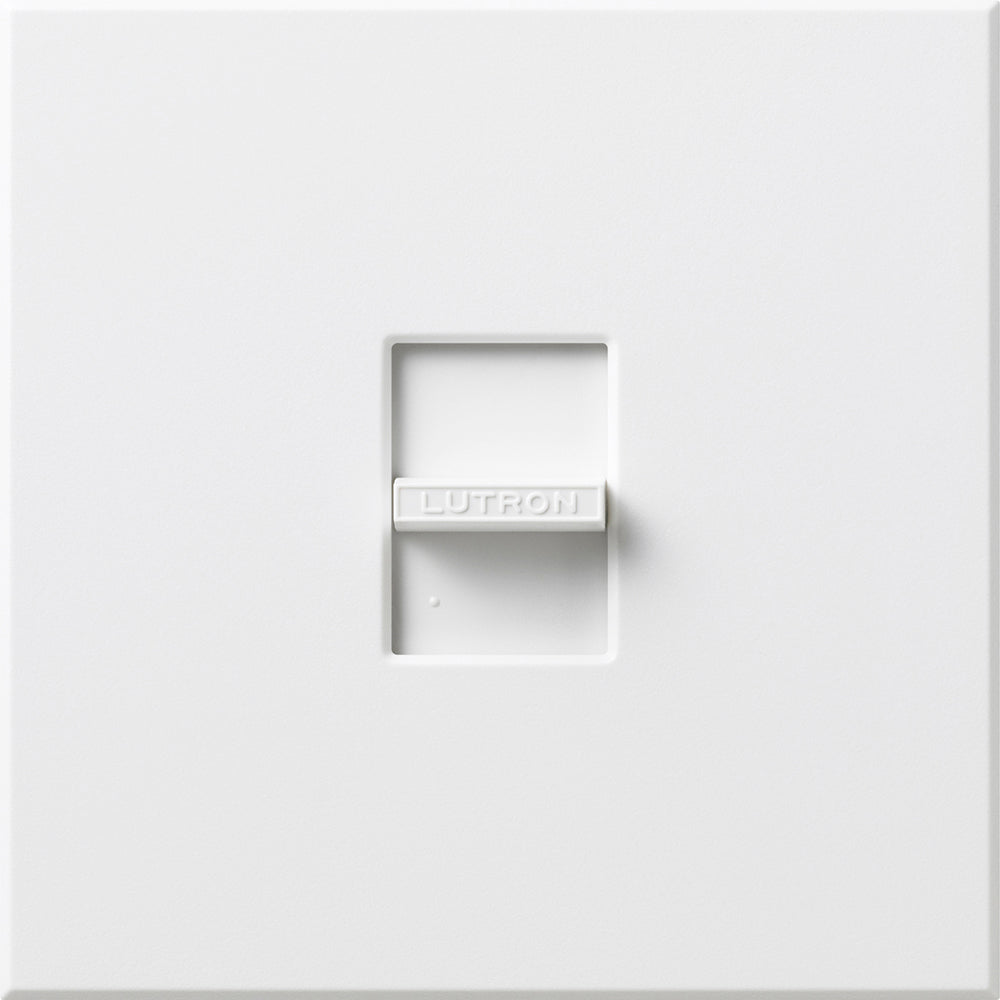

Nova Dimmer, Magnetic Low-Voltage, Neon/Cold Cathode, Single-pole (large control), 120V/1000VA (800W)

• Family/Collection: Nova
• Controls 1000 VA/800 W magnetic low-voltage or neon/cold cathode loads. Higher capacity dimmer, requires large heat sink behind wallplate. Slide up to brighten, down to dim. Measures 4.56 in x 4.56 in. Requires large wallplate. Fits in 1-gang electrical backbox.
• Slide adjusts light to suit any activity
• Full family of controls plus matching fan controls, switches and wiring devices
• Voltage compensation maintains stable light levels, despite line voltage variations under common wallplate
• Mechanical Air-Gap To Disconnect Load Power
• 100% factory tested
• Coordinating wallplate included

• Actuator: Slide
• Application: Lighting Control
• Brand Name: Lutron
• Color: Light Almond
• Connection: Wire Leads
• Frequency Rating: 60
• Insulation: Plastic
• Material: Plastic/Metal
• Mounting: Wallbox
• Number Of Poles: 1
• Operating Temperature: 32 to 104
• Size: 4.56 x 4.56
• Special Features: Controls 1000 VA/800 W magnetic low-voltage or neon/cold cathode loads. Higher capacity dimmer, requires large heat sink behind wallplate. Slide up to brighten, down to dim. Measures 4.56 in x 4.56 in. Requires large wallplate. Fits in 1-gang electrical backbox.
• Standard: UL, CSA, NOM, ANSI/IEEE Std. C62.41-1980
• Sub Brand: Nova
• Type: Slide-to-off dimmer, single-pole
• Voltage Rating: 120
• Wattage: 800
