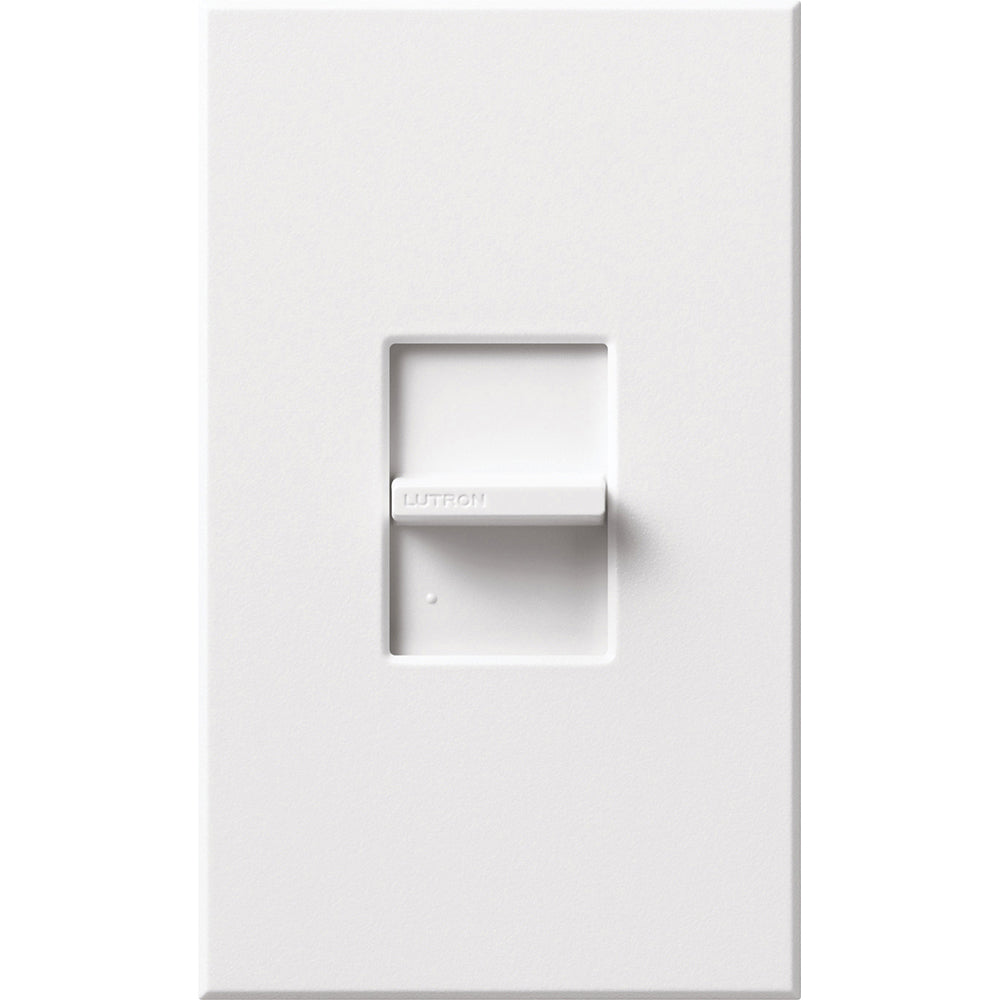

Nova T LED+ dimmer with wallplate, 250W LED, 1000W inc/hal, or 3.3A Lutron Hi-Lume A-Series LTE LED Driver (max 10 drivers), 120V

• Family/Collection: Nova T
• C.L dimmer controls 250 W dimmable LED/CFL (screw-base), 1000 W incandescent/halogen, or 400 W Hi-lume 1 percent 2-wire LED driver (max 10) loads. Slide up to brighten, down to dim. Provides reliable dimming of dimmable LEDs/CFLs, as well as halogens and incandescents.
• Available for 120-277V line voltage switching (sink- only control) 0 - 10 V- LED drivers and ballasts (power pack not required for loads up to 8 A)
• Excellent for residential or commercial applications
• Intuitive operation; easy to use
• Slide-To-Off And Preset Models Available
• Enclosed heat sink for aesthetically pleasing appearance
• Multi-gang alignment for quick and easy installation
• Full family of products for most lighting sources, plus matching accessories and wallplates
• Rated at 120V, 60Hz, unless noted otherwise
• Custom products (CPN) are available to meet specific customer needs. Please contact Lutron Customer Assistance at 1.844.LUTRON1 (588.7661) for availability

• Actuator: Slide
• Application: Lighting Control
• Brand Name: Lutron
• Color: Light Almond
• Connection: Wire Leads
• Frequency Rating: 60
• Insulation: Plastic
• Material: Plastic/Metal
• Mounting: Wallbox
• Number Of Poles: 1
• Operating Temperature: 32 to 104
• Size: 4.56 x 2.75
• Special Features: C.L dimmer controls 250 W dimmable LED/CFL (screw-base), 1000 W incandescent/halogen, or 400 W Hi-Lume 1 percent 2-wire LED driver (max 10) loads. Slide up to brighten, down to dim. Provides reliable dimming of dimmable LEDs/CFLs, as well as halogens and incandescents.
• Standard: UL, CSA, NOM
• Sub Brand: Nova T
• Type: Slide-to-off dimmer, single-pole
• Voltage Rating: 120
• Wattage: 1000
