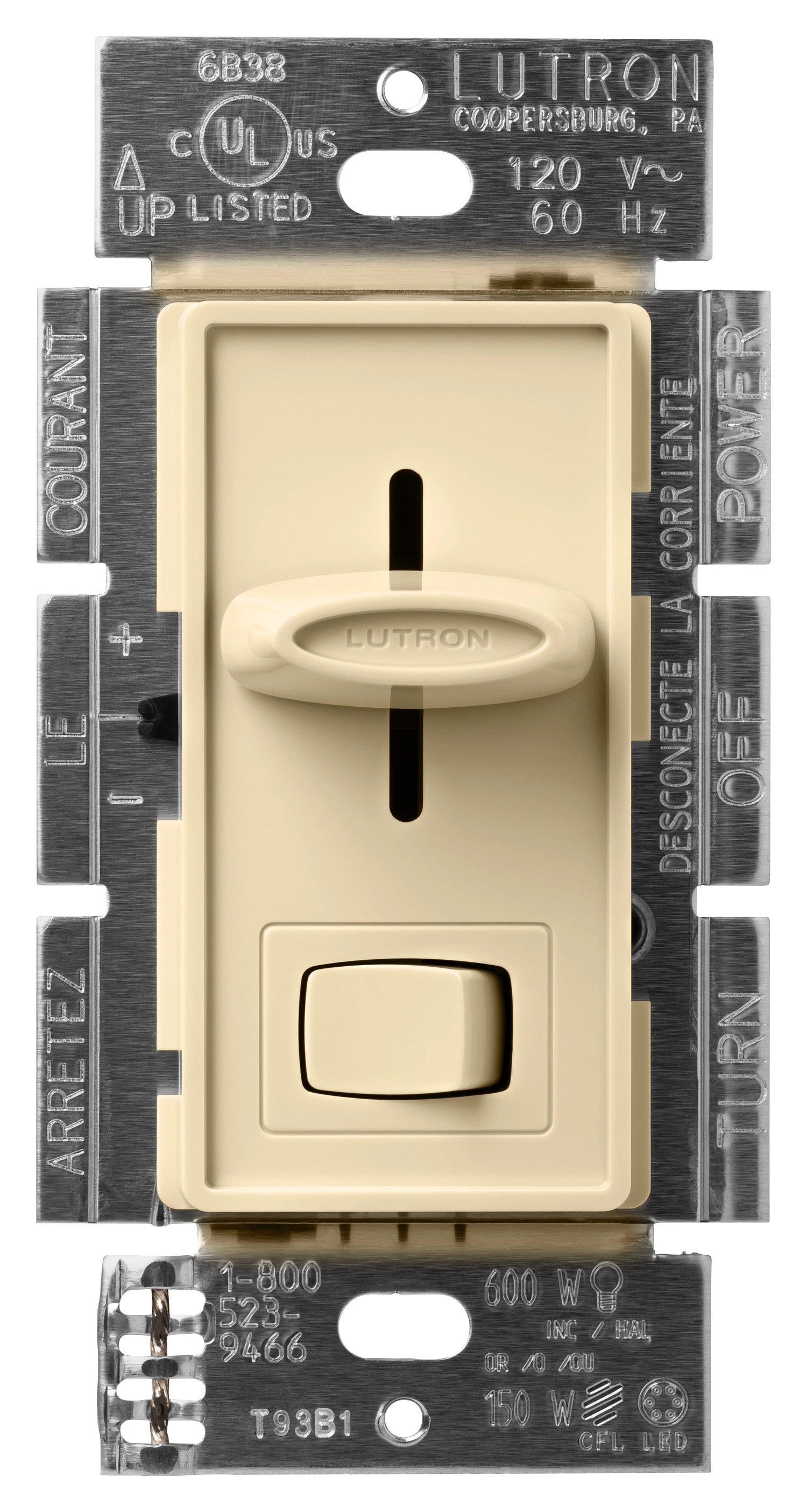

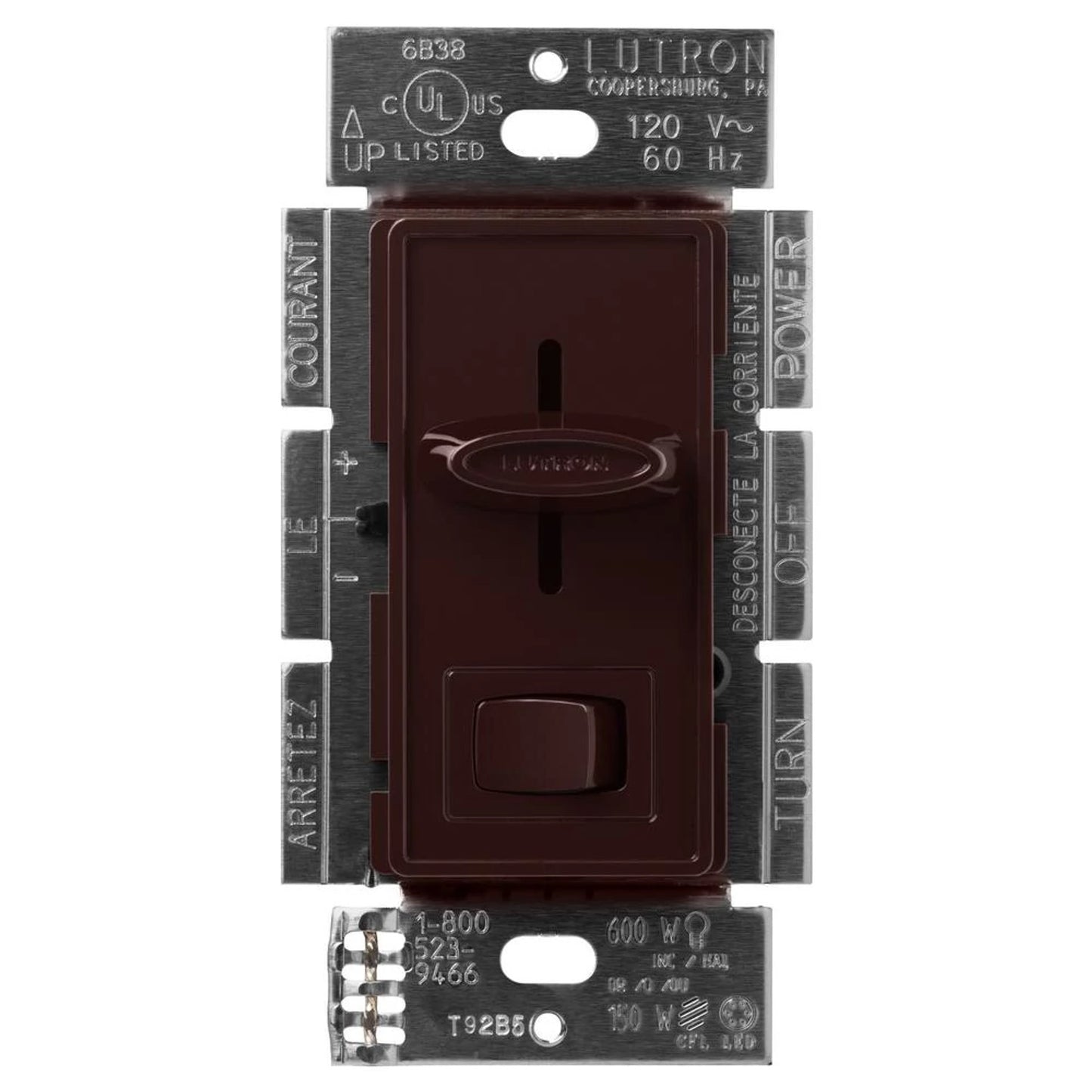

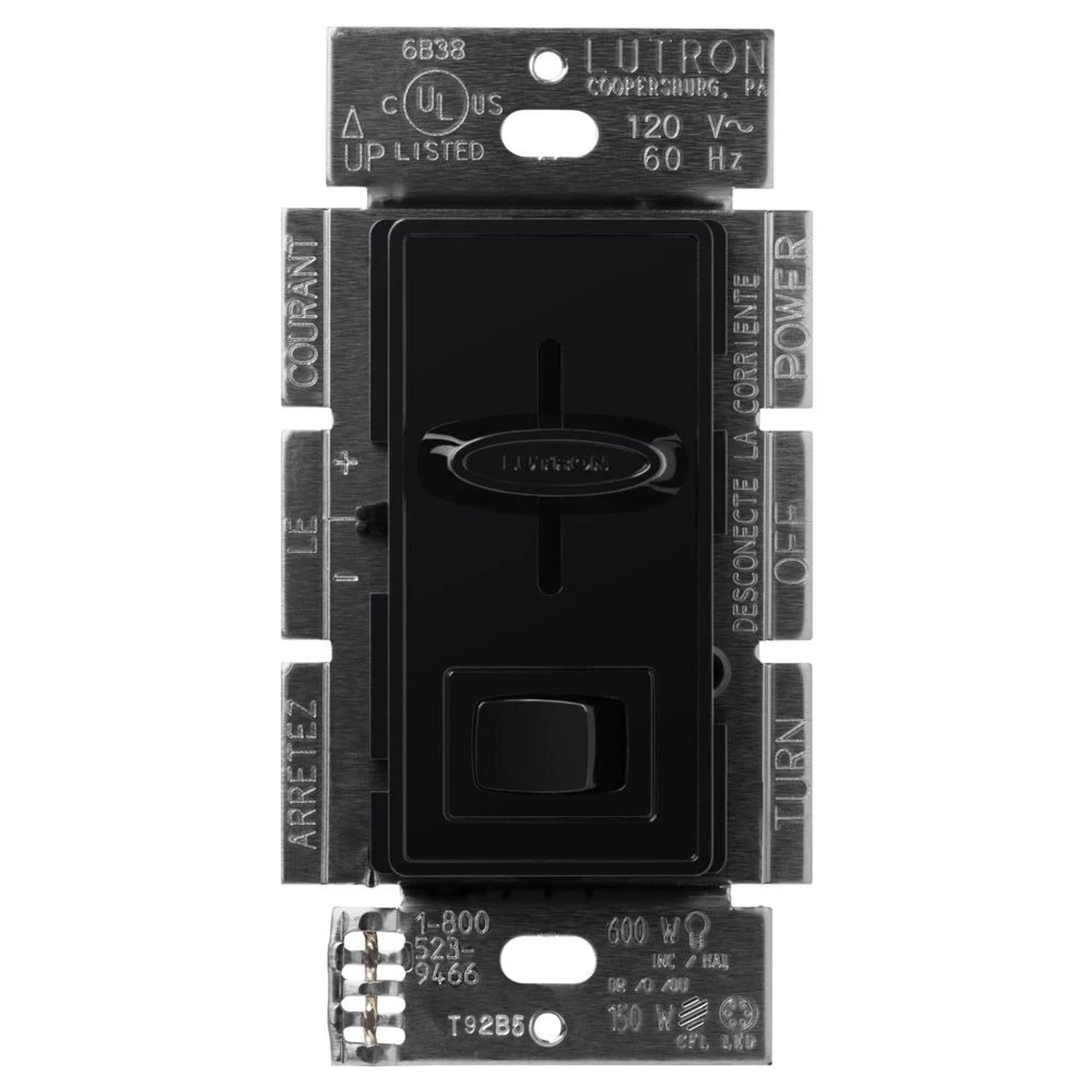

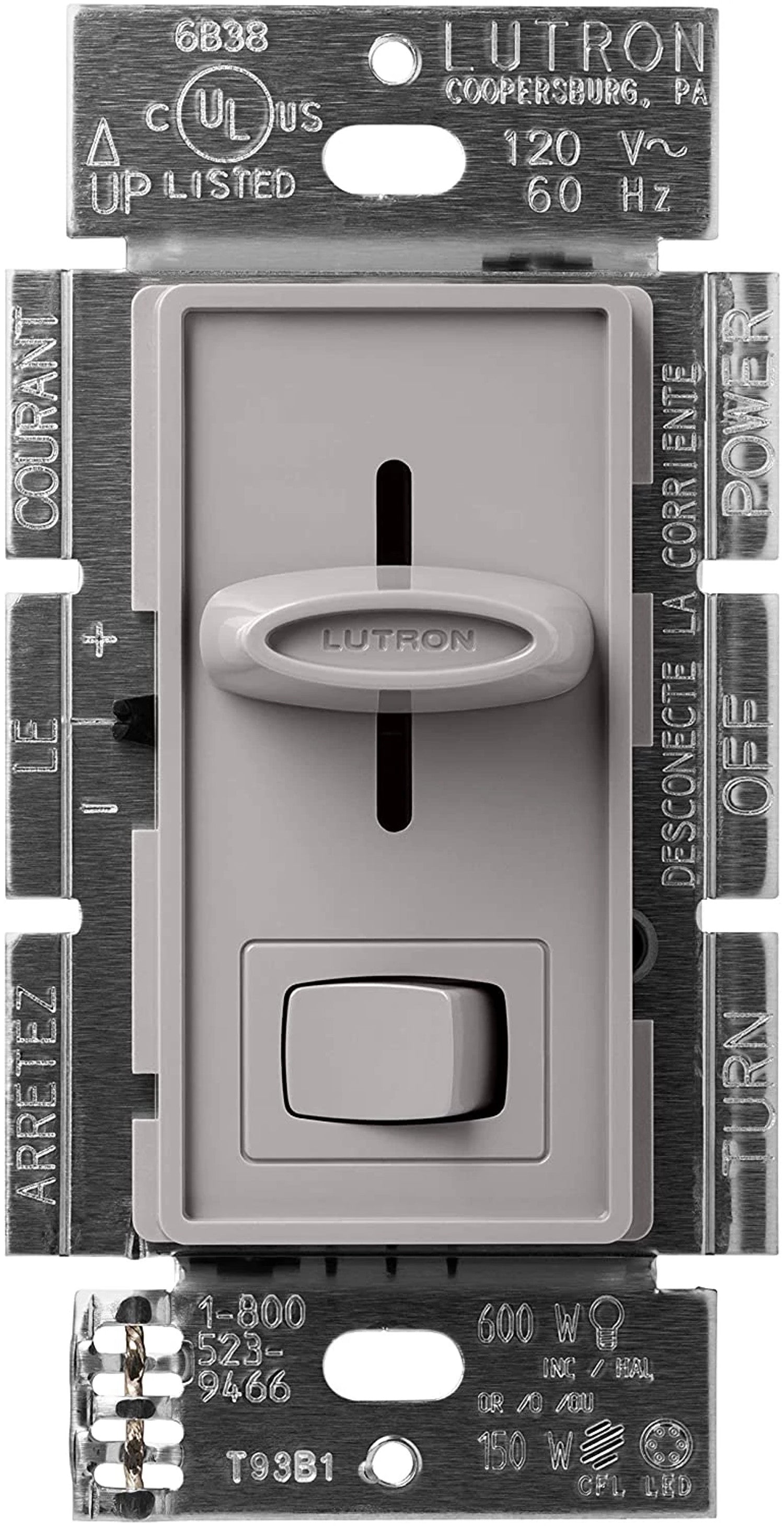

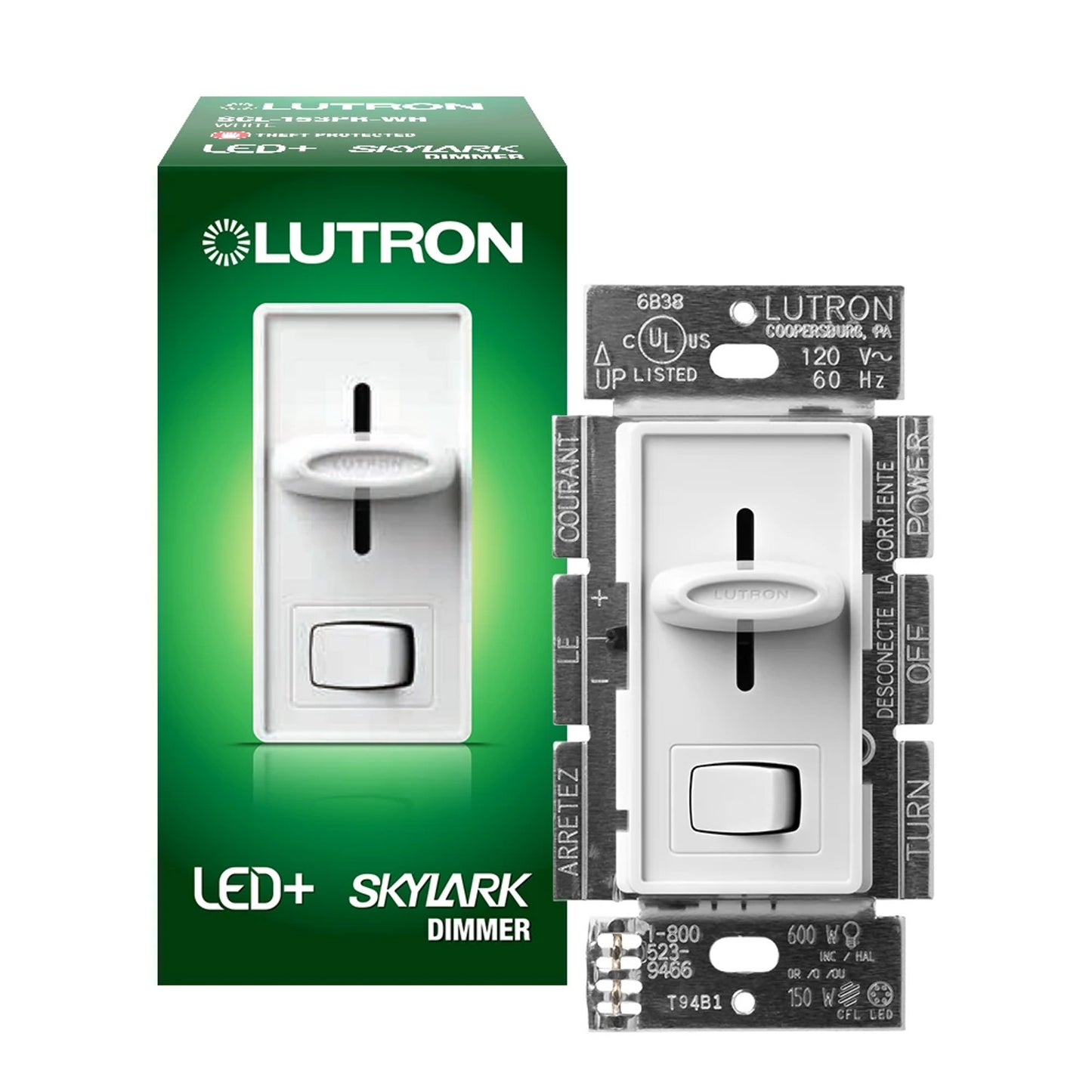

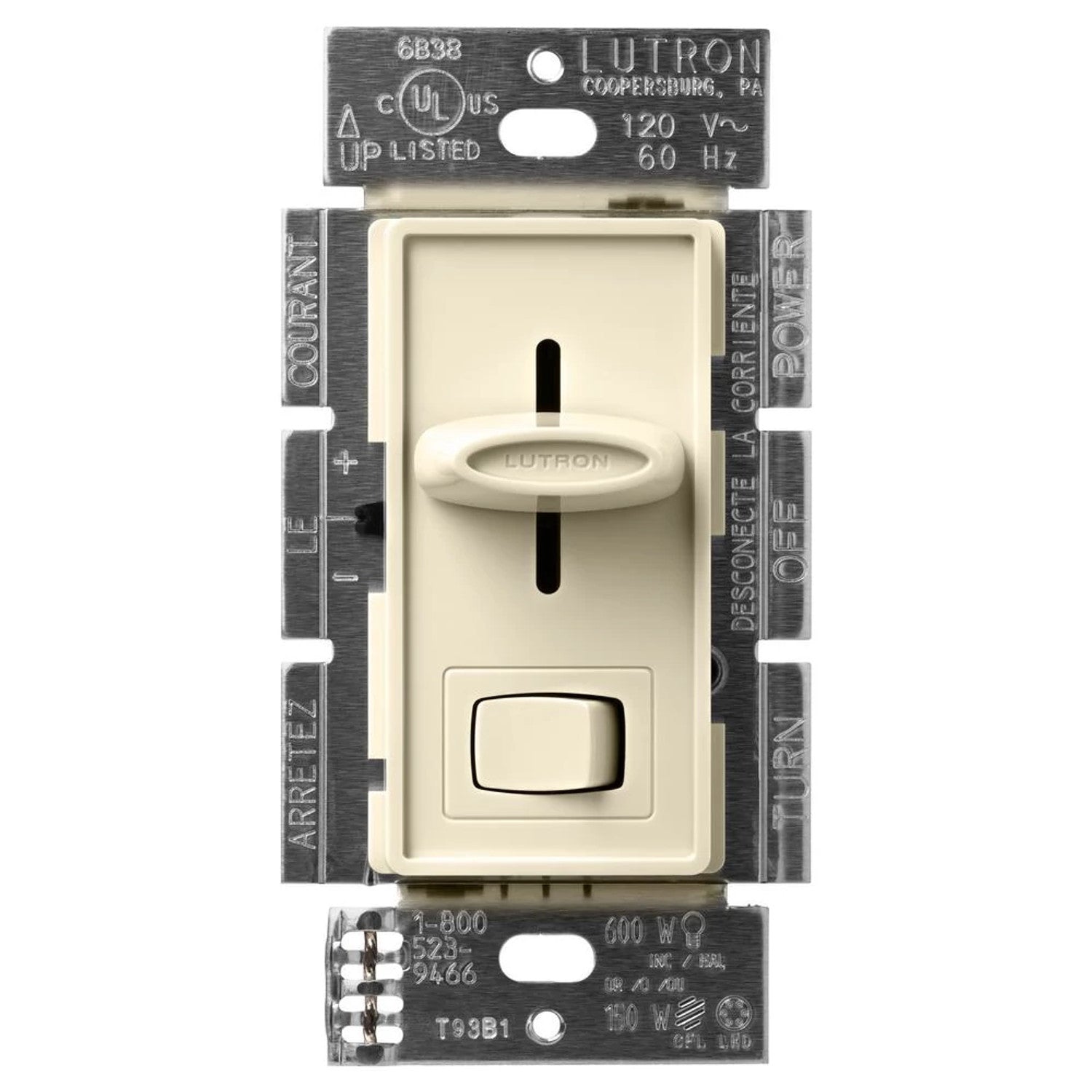

Skylark LED+ Dimmer for LED, halogen, and incandescent dimmable bulbs

The Lutron Skylark LED+ dimmer switch includes the most advanced technology for superior dimming for up to 150W of dimmable LED or 600W of Incandescent/Halogen. The Skylark dimmer switch features a smooth, linear slider knob to dim or brighten the lights while the rocker switch turns lights ON/OFF. Set a favorite preset level with the slider before turning on. The Skylark also features an easy low-end trim adjustment directly on the dimmer which eliminates complicated programming or having to turn the power off. Available in 7 gloss colors. Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately).

• Family/Collection: Skylark
• Controls 150 W LED/CFL (screw-base) or 600 W incandescent/halogen loads. Rocker switch returns light to light level indicated by slider. Slide up to brighten, down to dim. Provides reliable dimming of dimmable LEDs/CFLs, as well as halogens and incandescents.
• Includes (1) Lutron Skylark LED+ Dimmer Switch; Gloss Finish
• Rated for up to 150W LED or 600W Incandescent/Halogen
• No Neutral Required; 120V
• Single Pole Or 3-Way Compatible; Wire Lead Installation
• Minimum load requires 1 compatible LED or 10W Incandescent/Halogen
• Easy low-end trim adjustment lever; No complicated programming or turning off power to set
• Rocker switch turns lights on/off to favorite preset light level
• Linear slider knob dims and brightens the lights
• Available in 7 Gloss colors
• Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately)

• Actuator: Rocker/Slide
• Application: Lighting Control
• Brand Name: Lutron
• Color: Light Almond
• Connection: Wire Leads
• Frequency Rating: 60
• Insulation: Plastic
• Material: Plastic/Metal
• Mounting: Wallbox
• Number Of Poles: 1
• Operating Temperature: 32 to 104
• Size: 4.69 x 2.94
• Special Features: Controls 150 W LED/CFL (screw-base) or 600 W incandescent/halogen loads. Rocker switch returns light to light level indicated by slider. Slide up to brighten, down to dim. Provides reliable dimming of dimmable LEDs/CFLs, as well as halogens and incandescents.
• Standard: UL, CSA, NOM
• Sub Brand: Skylark
• Type: Dimmer with on/off switch, 3-way/single-pole
• Voltage Rating: 120
• Wattage: 600
