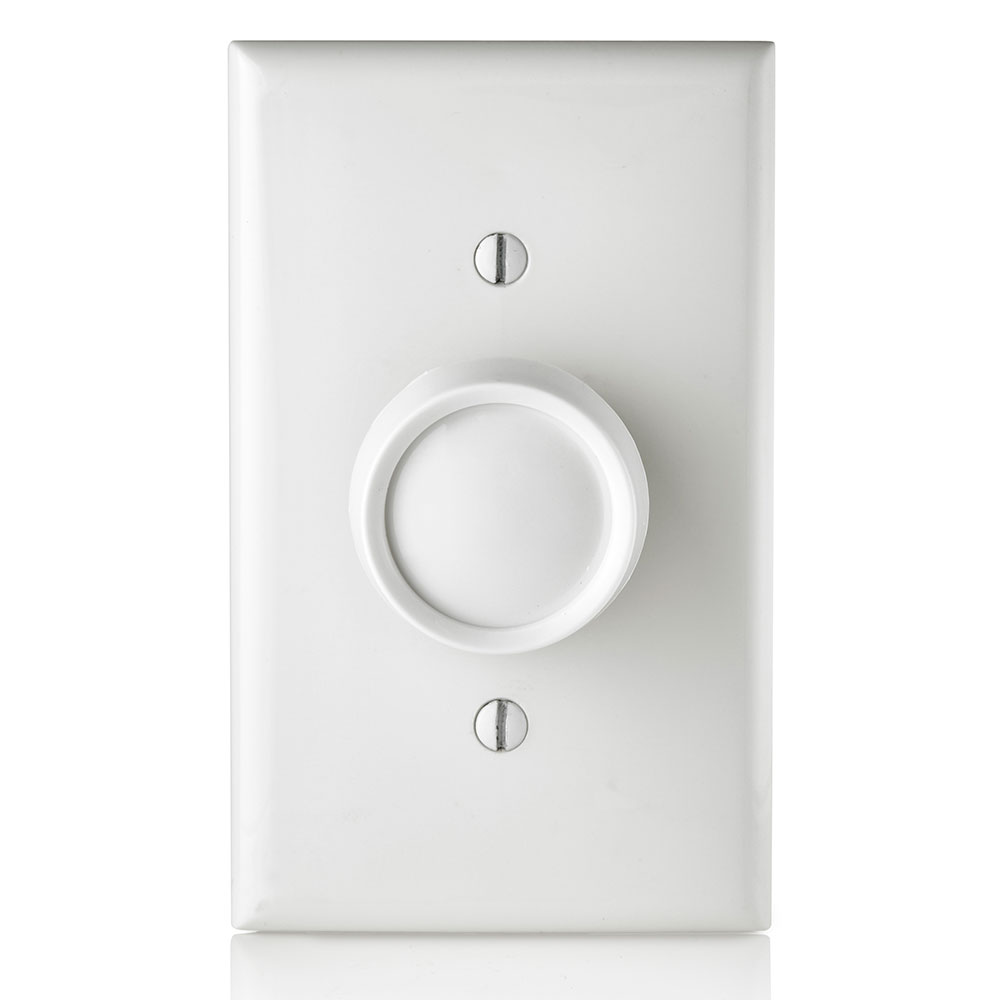

Trimatron Rotary Dimmer Switch for Dimmable LED, Halogen and Incandescent Bulbs

• Trimatron® lighting controls are traditional rotary-style dimmers available in single-pole (one location) and 3-way (multi-location) Push-ON/Push-OFF versions for LED, CFL and incandescent lighting and quiet fan speed control. With a compact, easy-to-install design, Trimatron dimmers provide an easy fit even in shallow wallboxes. The classic style of Trimatron dimmers is ideal for enhancing the décor of traditional homes while simultaneously upgrading functionality to support today’s latest bulb technology.
• Dimmers are designed for optimal control of dimmable LED and CFL lamps. Also compatible with Incandescent and Halogen lamps.
• Full range dimming with Push-ON/Push-OFF rotary control
• Provides single pole (one location) or 3-way (two location) control when paired with a 3-way switch
• Slim, compact housing fits easily into a standard wallbox
• Suitable for multi-gang installations
• Available in White, Ivory and Light Almond
• Built-in radio/TV interference filter

Patents

• US8664886

• Country of Origin: China
• RoHS Compliant: Yes

Product Features

• Action: Push for ON/OFF, Rotary control for lighting level control
• Available Colors: White, Ivory, Light Almond
• Color: White
• Frequency: 60 Hz
• Load Rating: 600W Incandescent and Halogen, 150W LED and CFL
• Load Type: Incandescent, Halogen, Dimmable LED, Dimmable CFL
• Phase Control: Forward phase control
• Preset: Rotary control preserves desired lighting level
• Protection: Radio/TV Filter
• Standards and Certifications: cCSAus, NOM
• Style Name: Trimatron
• Switch Type: Single-Pole & 3-Way
• Type: Rotary Dimmer
• Voltage: 120 VAC
• Wallplate: Order Separately
• Warranty: 5-Year Limited
