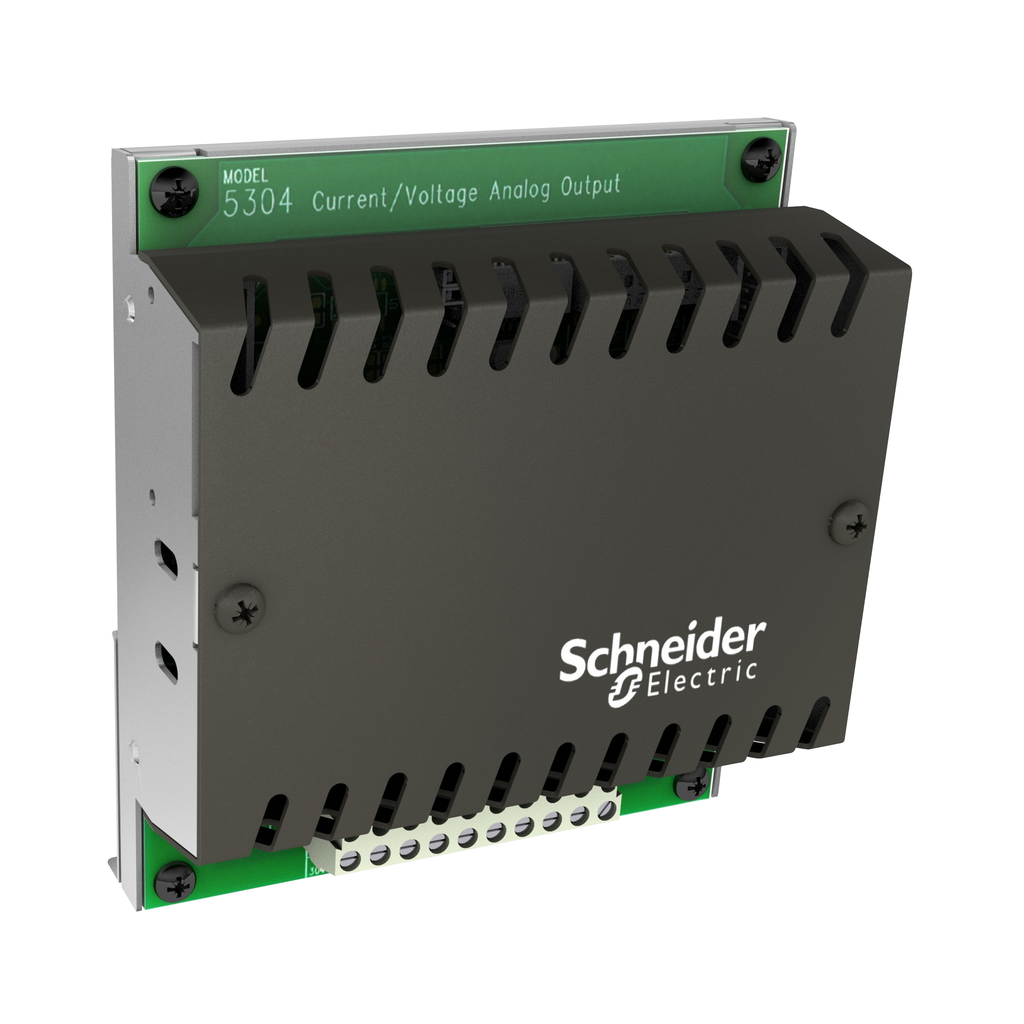

Analog output module, Expansion Modules, 4 AO

• Range Of Product: Expansion Modules
• Range Compatibility: SCADAPack 47x || SCADAPack 57x || SCADAPack 500E || SCADAPack 300E || SCADAPack 300, 32
• Product Or Component Type: I/O module

Complementary

• Height: 118 mm
• Analogue Output Type: current 0...20 mA || current 4...20 mA
• Width: 108 mm
• Length: 44 mm
• Output Type: 4 analog

Offer Sustainability

• China Rohs Regulation: X
• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Eu Rohs Directive: Compliant
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Reach Free Of Svhc: Yes
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Environment

• Product Certifications: cCSAus HazLoc Class I Division 2 Group A || cCSAus HazLoc Class I Division 2 Group B || cCSAus HazLoc Class I Division 2 Group C || cCSAus HazLoc Class I Division 2 Group D
• Relative Humidity: 5-95 %
• Standards: UL 508
