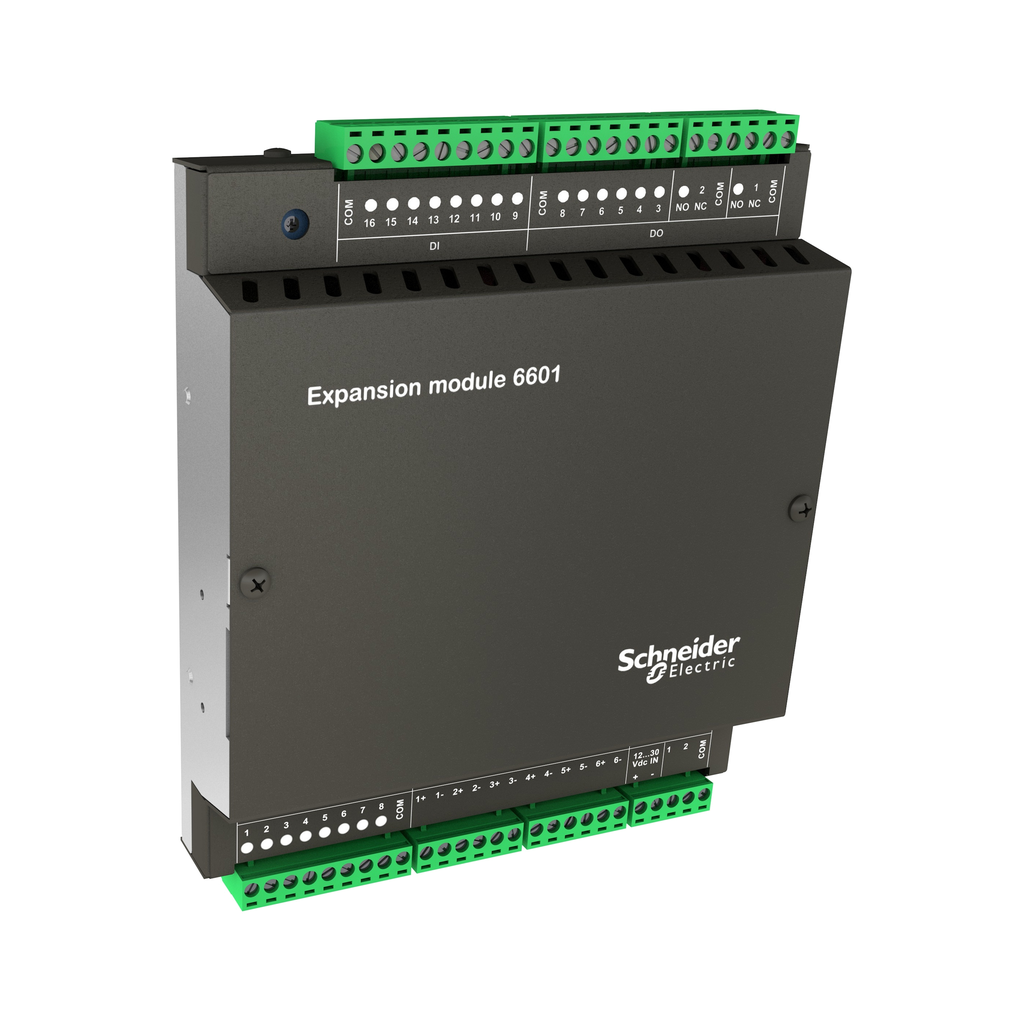

IO module, Expansion Modules, 16 DI, 6 AI, 8CI, 8 DO, 2 AO, IECEx, ATEX

• Range Of Product: Expansion Modules
• Range Compatibility: SCADAPack 47x || SCADAPack 57x || SCADAPack 500E
• Product Or Component Type: I/O module

Complementary

• Height: 182.3 mm
• Analogue Output Type: current 0...20 mA || current 4...20 mA
• Width: 150.5 mm
• Analogue Input Type: voltage 0...5 V || voltage 1...5 V || current 0...20 mA || current 4...20 mA
• Length: 44.7 mm
• Input Type: digital x16 || analog x6 || counter x8
• Output Type: 8 digital || 2 analog
• Power Consumption In W: 1.1-1.1 W

Offer Sustainability

• China Rohs Regulation: X
• Circularity Profile: ENVEOLI1811007EN
• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP1811007EN
• Sustainable Offer Status: Green Premium product
• Eu Rohs Directive: Compliant
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Environment

• Product Certifications: CE || CSA || IECEx || ATEX Ex nA IIC T4 Gc || UL
• Relative Humidity: 5-95 %
• Ambient Air Temperature For Operation: -40-70 °C || -40-158 °C
• Ambient Air Temperature For Storage: -40-85 °C || -40-185 °F
• Standards: FCC CFR 47 part 15, Subpart B || ICES-003 || UL 61010-2-201 || UL 61010-1 || CSA C22.2 No 61010-1 || CSA C22.2 No 61010-1-12 || IEC 61131-2
• Pollution Degree: 2
• Marking: CE || RCM
