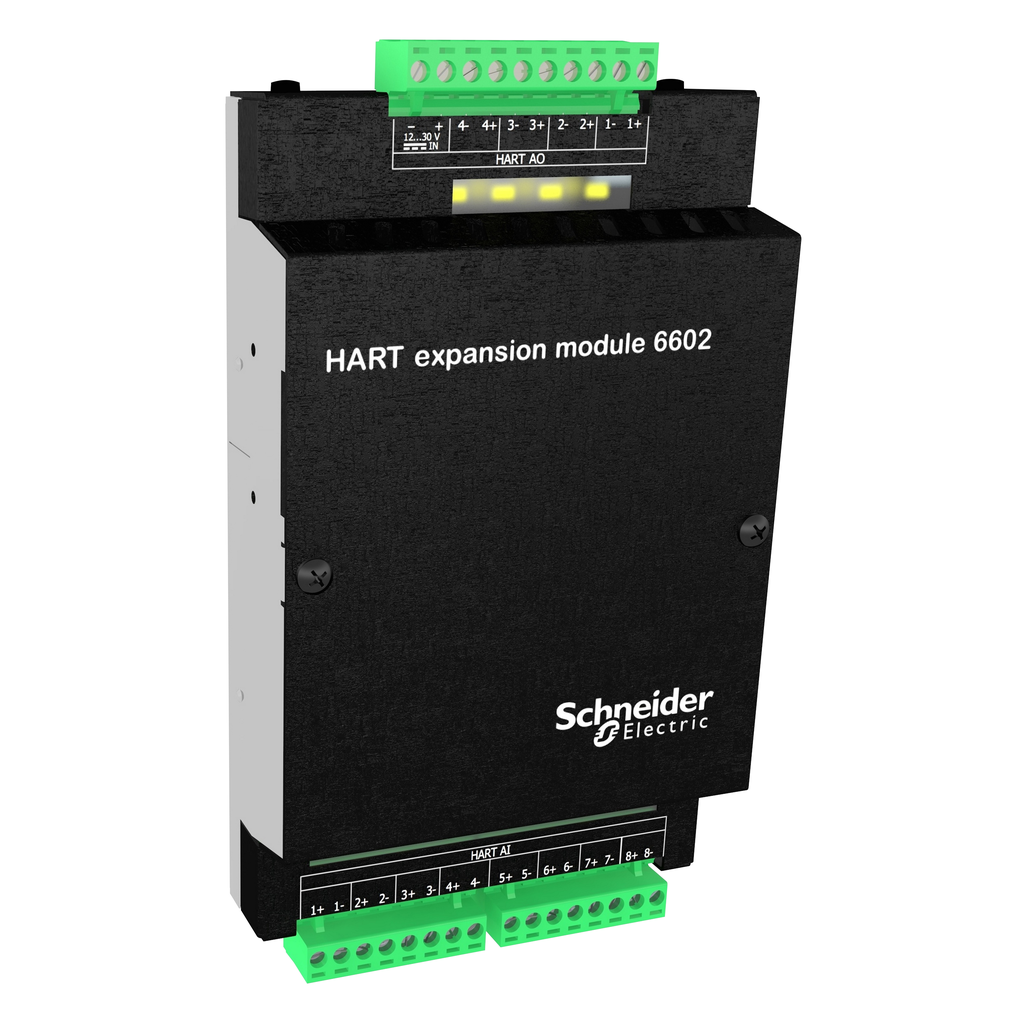

IO module, Expansion Modules, 8 AI, 4 AO, HART, IECEx, ATEX

• Range Of Product: Expansion Modules
• Range Compatibility: SCADAPack 47x || SCADAPack 57x
• Product Or Component Type: I/O module

Complementary

• Height: 47.1 mm
• Communication Port Protocol: HART
• Analogue Output Type: 4...20 mA
• Width: 182.4 mm
• Analogue Input Type: 4...20 mA
• Length: 102 mm
• Input Type: analog x8.0
• Output Type: 4.0 analog
• Power Consumption In W: 1.3-1.3 W

Offer Sustainability

• China Rohs Regulation: X
• Circularity Profile: ENVEOLI2112005EN
• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP2112005EN
• Sustainable Offer Status: Green Premium product
• Eu Rohs Directive: Compliant
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Reach Free Of Svhc: Yes
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Environment

• Product Certifications: CE || CSA || IECEx || ATEX Ex nA IIC T4 Gc || UL
• Relative Humidity: 5-95 %
• Ambient Air Temperature For Operation: -40-70 °C || -40-158 °C
• Ambient Air Temperature For Storage: -40-85 °C || -40-185 °F
• Standards: FCC CFR 47 part 15, Subpart B || ICES-003 || UL 61010-2-201
• Pollution Degree: 2
• Marking: CE || RCM
