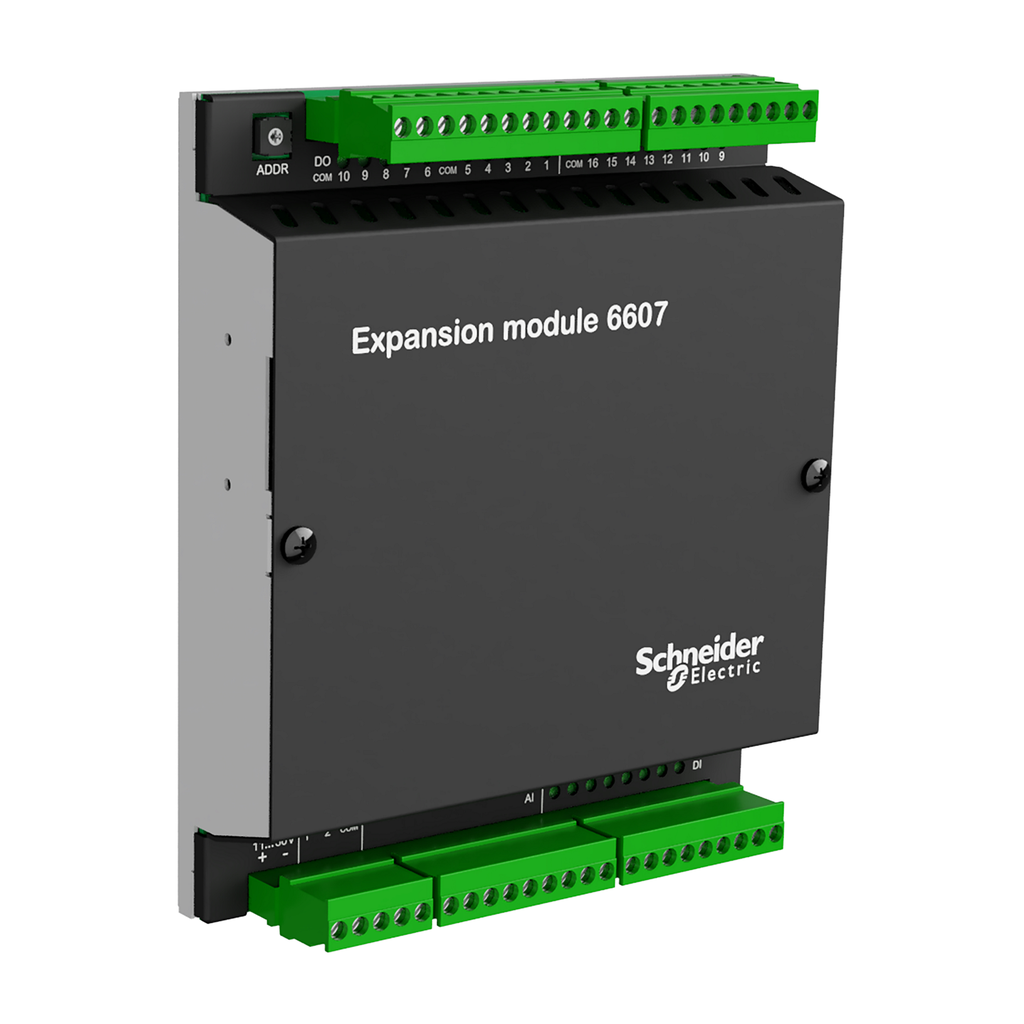

IO module, Expansion Modules, 16 DI, 10 DO, 8 AI, 2 AO, 8 CI, cCAus class 1 div 2

• Range Of Product: Expansion Modules
• Range Compatibility: SCADAPack 47x || SCADAPack 57x
• Product Or Component Type: I/O module
• Product Compatibility: SCADAPack 570 || SCADAPack 470

Complementary

• Input Voltage: DC
• Height: 166 mm
• Width: 142 mm
• Length: 46 mm
• Input Type: digital x16.0 || counter x8.0 || analog x8
• Output Type: 10.0 digital || 2.0 analog
• Power Consumption In W: 1.2-1.2 W

Offer Sustainability

• China Rohs Regulation: X
• Circularity Profile: ENVEOLI1911017EN
• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP1911017EN
• Sustainable Offer Status: Green Premium product
• Eu Rohs Directive: Compliant
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Environment

• Product Certifications: CE || CSA || cCSAus HazLoc Class I Division 2 Group A || cCSAus HazLoc Class I Division 2 Group B || cCSAus HazLoc Class I Division 2 Group C || cCSAus HazLoc Class I Division 2 Group D || UL
• Relative Humidity: 5-95 %
• Ambient Air Temperature For Operation: -40-70 °C || -40-158 °C
• Ambient Air Temperature For Storage: -40-85 °C || -40-185 °F
• Standards: FCC part 15 Subpart B class A || CAN/CSA C22.2 No. 61010-1-12 || CAN/CSA C22.2 No. 61010-2-201 || UL 61010-2-201 || UL 61010-1 || EN/IEC 61131-2
• Pollution Degree: 2
• Marking: CE || RCM
