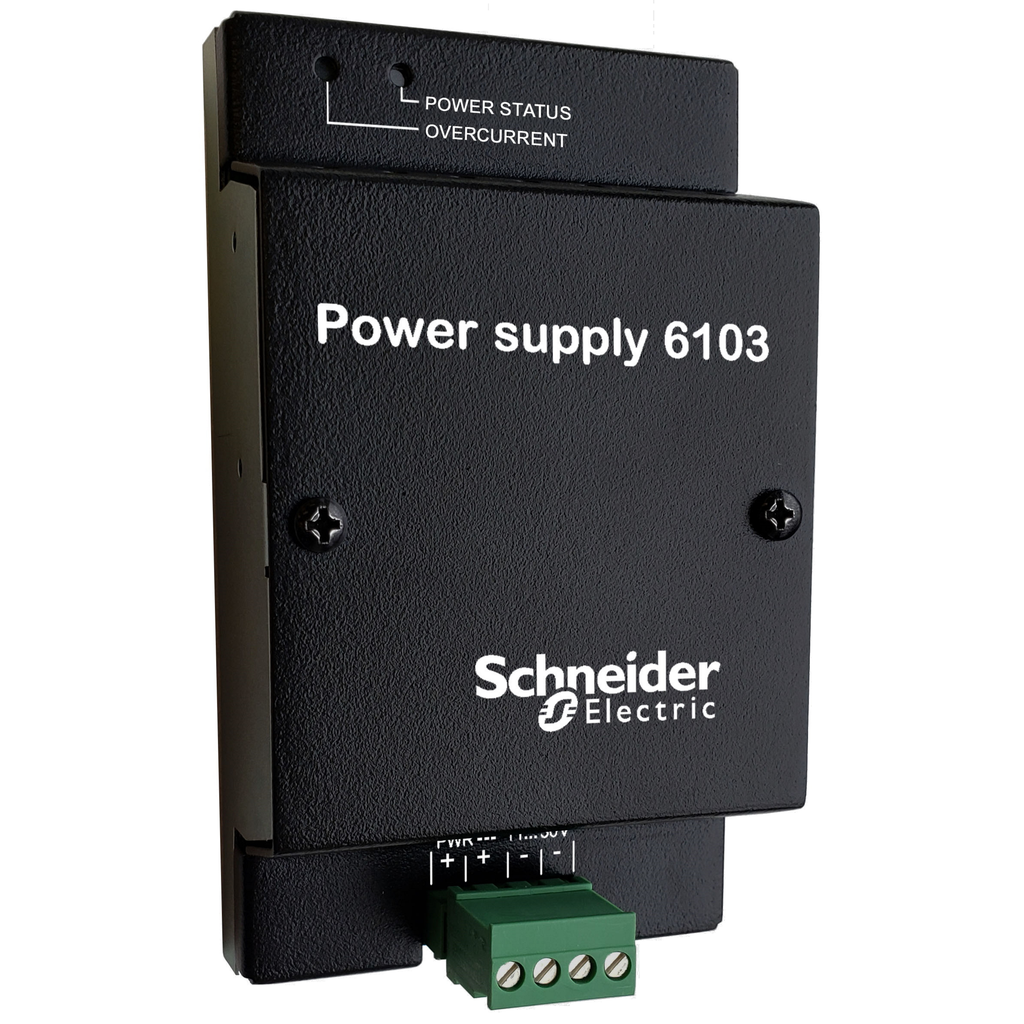

Power supply module, Expansion Modules

• Range Of Product: SCADAPack 47x || SCADAPack 57x
• Input Voltage: 11...30 V
• Range Compatibility: SCADAPack 47x || SCADAPack 57x
• Product Or Component Type: power supply module
• Accessory / Separate Part Type: power supply

Complementary

• Input Power: 13 W
• Height: 127 mm
• Output Voltage: 5.1 V
• Width: 73.5 mm
• Depth: 47.2 mm

Offer Sustainability

• China Rohs Regulation: X
• Circularity Profile: ENVEOLI2106020EN
• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP2106020EN
• Sustainable Offer Status: Green Premium product
• Eu Rohs Directive: Compliant
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Environment

• Product Certifications: IECEx || ATEX || CE || ACMA || cULus HazLoc Class I Division 2 Group A || cULus HazLoc Class I Division 2 Group B || cULus HazLoc Class I Division 2 Group C || cULus HazLoc Class I Division 2 Group D
• Ambient Air Temperature For Operation: -40-70 °C || -40-65 °C || -40-158 °F || -40-149 °F
• Ambient Air Temperature For Storage: -40-85 °C || -40-185 °F
• Standards: CSA C22.2 No 61010-1-12 || CSA C22.2 No 61010-2-201 || UL 61010-1 || UL 61010-2-201 || FCC part 15 Subpart B class A || EN/IEC 61131-2
• Relative Humidity: 5-95 % non-condensing
• Pollution Degree: 2
• Marking: CE || RCM || EAC
