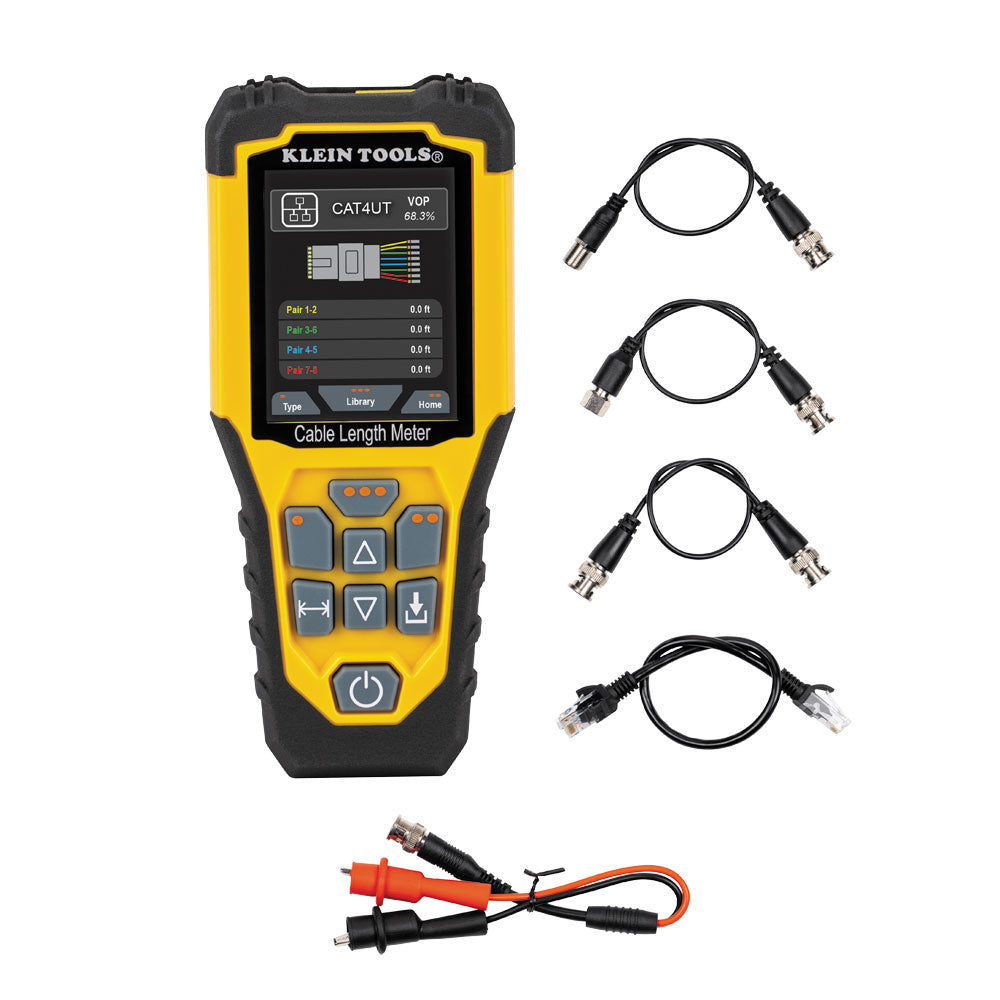

TDR Cable Length Meter

The Klein Tools Cable Length Meter is a portable Time Domain Reflectometry (TDR) cable length tester. It measures cable length, calibrates Velocity of Propagation (VoP) values, finds distance to faults in cables, and provides built-in tone generation for cable tracing. This tester provides accurate cable length measurement for a wide variety of cable types at an affordable price. Includes test leads and a carrying case.

• Cable length meter measures length of electrical, data, two-wire and Romex® cables up to 3000 feet (914 m)
• TDR technology measures Distance-to-Fault, Open or Short, on terminated or unterminated cable
• Programmed with Velocity of Propagation (VoP) values for Coax, Data, Romex® and other multiwire cables for accurate length measurement within +/-(2-Percent plus 3-Foot/0.9 m) accuracy
• Stores custom cable VoP values for consistently accurate results and time savings
• Simple interface with full color, interactive LCD
• Tones unenergized, open-ended wires for wire tracing (requires Analog Probe (Cat. No. VDV500-123, sold separately)
• Coax-BNC or high quality alligator clips for quick, easy connection to test most cable types
• RJ45 jack for accurate length measurement of terminated data cables
• Measurements can be switched between and metric and imperial units
• Includes padded carrying case and leads

• Warning: The Cable Length Meter should NOT be used on energized cabling systems.
• Warning: Internal components of the Cable Length Meter are protected up to 30V peak AC or DC. Connecting the meter to voltages above this range may pose a safety hazard to the user and the meter.
• Battery Life: Active: Approx 15 hr; Standby: Approx 3 yr.
• Drop Protection: 6.6' (2 m)
• Display: Backlit LCD
• Cable Type: Coaxial, Data, Electrical
• Special Features: Velocity of Propagation Range: 20 to 99.9%
• Material: ABS Plastic
• Weight: 7.6 oz (215 g) without batteries
• Included: TDR Cable Length Meter, Batteries, Test Leads, Carrying Pouch
• Connection & Adapter Types: Alligator clips, Female Coax-F, Male Coax-F, RJ45, BNC
• Type: Cable Meter
• Batteries: 2 × AA Alkaline
• Test & Measure Types: Length, Distance-to-Fault
• Faults Detected: Distance-to-Fault, Open or Short
• Multiple Style Tone Generator: Two Tones
• Application: Cable Length Measurement
• Overall Height: 6.2" (15.7 cm)
• Overall Length: 2.7" (6.9 cm)
• Overall Width: 1.4" (3.6 cm)
• Battery Type: Alkaline
• Style_Name: Cable Length Meter
