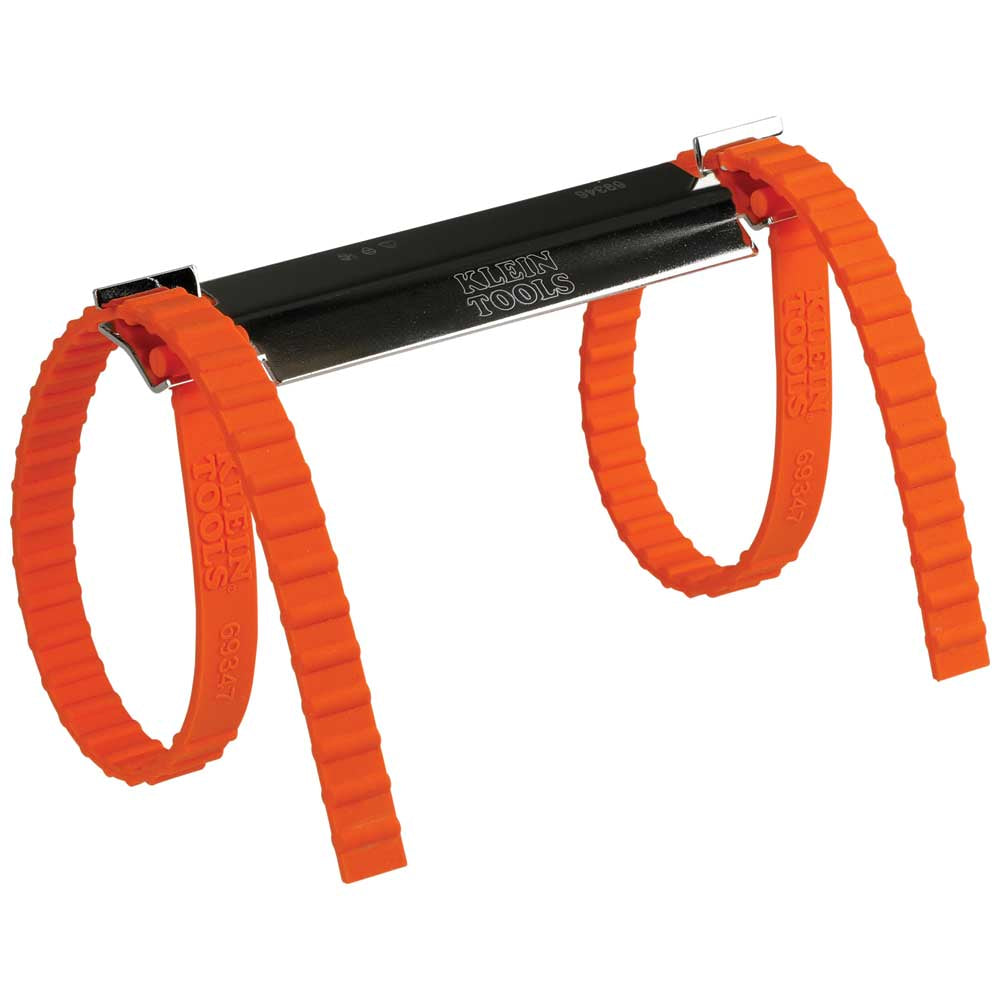

Plumbers Kit for Cat. No. 935DAGL

The Klein Tools' 69346 Plumber's Kit is designed to bring the benefits of the magnetic attachment of digital angle gauges to non-magnetic pipes, conduits or other objects. It consists of a metal plate and silicone straps which may be strapped to the non-magnetic object. When attached it presents a ferromagnetic surface aligned with the non-magnetic pipe to which the Digital Level with Programmable Angles (Cat. No. 935DAGL) or the Digital Angle Gauge and Level (Cat. No. 935DAG) may be attached. This facilitates hands-free operation of the angle gauge when working to align non-magnetic pipes or conduits. Two adjustable silicone straps wrap around non-magnetic pipes from 1- to 6-Inch outer diameter and can stretch to fit circumferences up to 18-Inch. Once the digital angle gauge or level has been magnetically mounted to plate setting pitches or measuring angles can be efficiently achieved.

• Plumber's Kit straps to brass, copper, PVC, and other non-magnetic pipes and conduits to present a magnetic surface to which Digital Angle Gauges and Levels may be mounted
• Two flexible, adjustable length straps connect the metal plate to pipes, conduit, or other objects
• Fits common PVC pipe sizes from 1 to 6-Inch outer diameter and can stretch to fit circumferences up to 18-Inch
• Attach magnetic side of Digital Angle Gauges and Levels to the metal plate to use the gauge in a hands-free fashion to easily set and measure angles
• Metal plate holds Digital Angle Gauges and Levels in place while the desired angle, pitch, or tilt is set or measured
• Secure the Plumber Kit in place by adjusting the silicone straps to the required length
• Use with Klein Tools Digital Level with Programmable Angles (Cat. No. 935DAGL) or the Digital Angle Gauge and Level (Cat. No. 935DAG)
• Replaceable Straps for Plumber's Kit (Cat. No. 69347) sold separately

• Warning: Read, understand, and follow instructions to ensure safe operation
• Warning: Always wear approved eye protection
• Overall Height: 0.4" (1.0 cm)
• Material: Steel, Silicone
• Type: Level Accessory
• Application: Magnetic Attachment of Digital Angle Gauges to Non-Magnetic Objects
• Overall Length: 15.1" (38.4 cm)
• Weight: 3.2 oz (91 g)
• Special Features: Silicone Straps
• Overall Width: 1.3" (3.3 cm)
