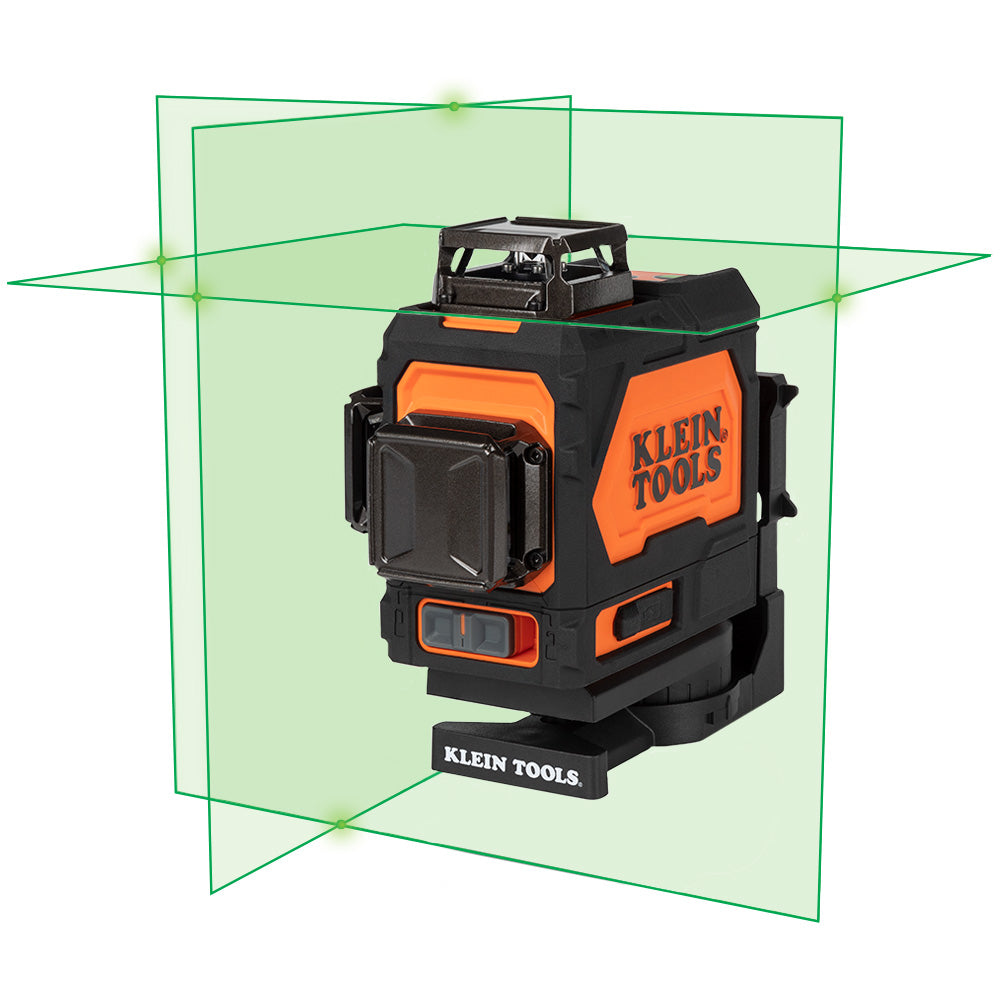

Rechargeable Self-Leveling Green Planar Laser Level

The Klein Tools™ Rechargeable Self-Leveling Green Planar Laser Level is a high-performance laser leveling and alignment tool for professionals. Clear, bright green 360-Degree lines in the X-, Y- and Z-planes project from this level, and offers plumb up and plumb down marks. Equipped with an integrated magnetic mount and 1/4-20 tripod mounting threads, Klein's self-leveling laser level is more precise than a traditional spirit or box level, and enables a multitude of alignment and layout applications.

• Rechargeable Self-Leveling Green Planar Laser Level is easy-to-read with strong green horizontal and vertical laser lines
• Projects a line independently or together in X-, Y-, and Z-planes to align stud, concrete, tiles, conduit, and more
• Find Plumb spots much quicker than a traditional string bob by using the intersection of the Y and Z planes
• More than 9 hour run time with integrated rechargeable Li-Ion powered battery
• This product is classified as a Class II laser product according to IEC/EN 60825-1:2014, (Power ≤1mW @ 510-530nm)
• Integrated magnetic mounting bracket with 1/4-20 tripod mounting threads
• Strong and rugged body provides IP54 water and dust resistance; hard plastic carrying case included
• Includes Li-Ion battery pack, USB-A to USB-C charging cable, magnetic mounting bracket, drop-resistant hard carrying case, and instructions

• Warning: Exposing eyes to laser radiation can result in severe and permanent eye injuries.
• Warning: Do not use the instrument if it appears to be damaged.
• Warning: Do not modify the instrument in any way, as to do so could result in emission of hazardous laser radiation than could result in severe eye injuries.
• Warning: Do not modify the instrument in any way, as to do so could result in emission of hazardous laser radiation than could result in severe eye injuries.
• Accuracy: +/-3/16" per 33' (+/-4.7 mm per 10 m)
• Bag or Case: Hard Carrying Case
• Application: Self-Leveling Laser Alignment Instrument
• Plumb Laser: No
• Number of Beams: 3
• Overall Length: 5.5" (2.2 cm)
• Material: ABS Housing and Electronic Components
• Outdoor Range: 91' (28 m)
• Type: Self-Leveling Laser Level
• Included: Laser Level; Lithium-Ion Battery; USB-A to USB-C Cable; Magnetic Mounting Bracket; and Hard Carrying Case
• Special Features: Rechargeable Battery, Magnetic Mounting Bracket with 1/4-20 Tripod Mounting Threads; 3 Orthogonal 360° Planar Lines
• Overall Width: 4.8" (1.9 cm)
• Pulse Mode: No
• Transit Locking Mechanism: Yes
• Overall Height: 3.5" (1.4 cm)
• Receiver: No
• Ingress Protection: IP54: Water and Dust Resistant
• Weight: 1.4 lb (0.6 kg)
• Magnet Type: Rare Earth Magnets
• Laser Safety: ≤1mW Each Beam, Class 2 Laser Product
• Indoor Range: 91' (28 m)
• Standard: EN61326-1:2013, EN60825-1:2014, NOM-001-SCFI-2018 and 21 CFR 1040.1 and 1040.11 Except for Deviations Pursuant to Laser Notice No. 50, Dated June 24, 2007
• Laser Wavelength: 510-530 nm
• Maximum Distance: 91' (28 m)
• Batteries: Lithium-Ion
