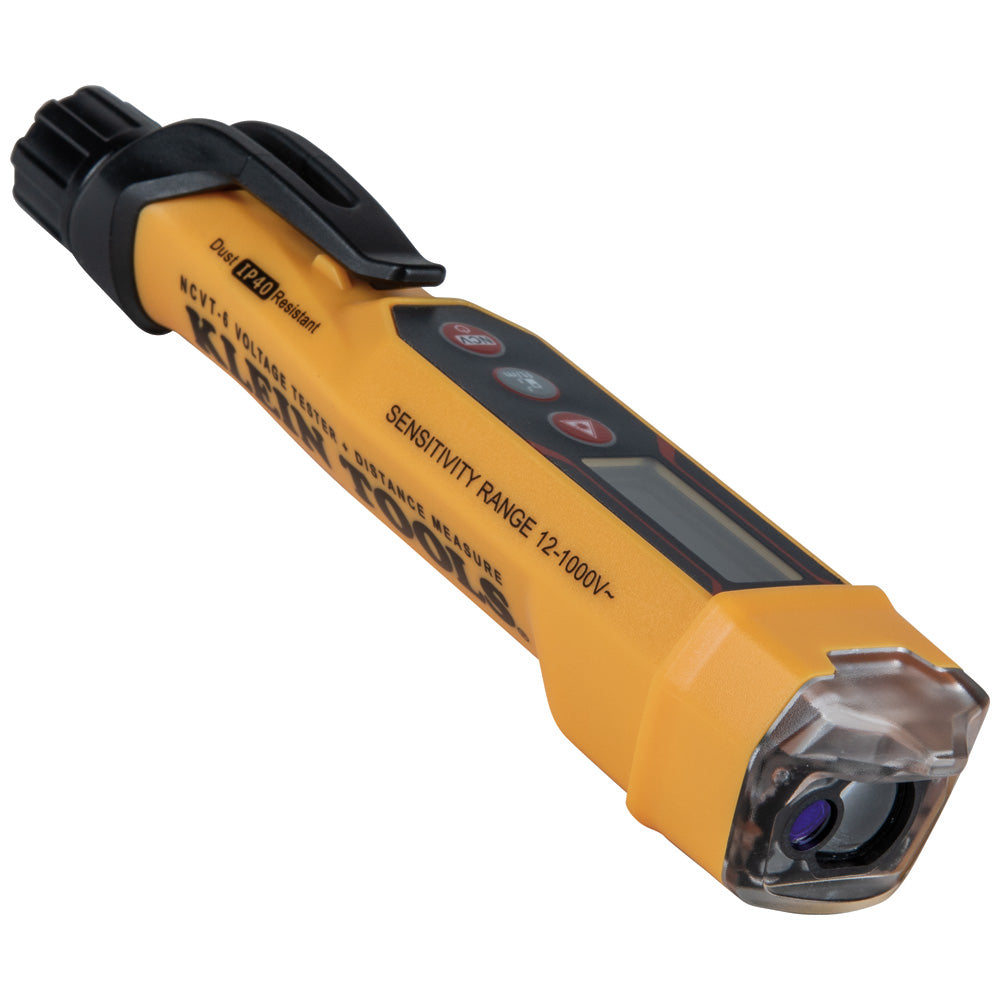

Non-Contact Voltage Tester Pen, 12-1000V AC, with Laser Distance Meter

The Klein Tools NCVT-6 is a non-contact voltage tester (NCVT) with an integrated laser distance meter. It can detect voltage over the full-range from 12 to 1000 VAC and can measure distances from 2-Inch (51 mm) up to 66-Feet (20 m). The laser distance meter functions independently from the NCVT with a simple-to-use intuitive interface. Easy, single-button changes between voltage detection and laser distance measurements.

• Non-contact Tester determines AC voltage in cables, cords, circuit breakers, switches, outlets, wires, as well as security, entertainment, communications, environmental control, and irrigation systems
• Volt Pen detects AC voltage from 12 to 1000V with visual and audible indicators
• Incorporates a 66-Foot (20 m) Laser Distance Meter that can measure in meters, inches in fractions or decimals, and feet in fractions or decimals, with accuracy up to 1/16-Inch (0.16 cm)
• High-visibility reverse contrast display for better viewing in low light conditions
• Laser Class II, 630 to 670nm, Max. Power <1mW
• Simple-to-use intuitive interface; easy single-button changes between laser distance measurements and voltage detection
• Delivers simultaneous visual and audible voltage indicators when AC voltage is detected
• Audible voltage indicator beeps at a greater frequency the higher the voltage that is sensed, or the closer to the voltage source
• Built to withstand a 6.6-Foot (2 m) drop
• Auto Power-Off conserves and extends battery life

• Warning: Read, understand, and follow all instructions, cautions and warnings attached to and/or packed with all test and measurement devices before each use.
• Warning: Never assume neutral or ground wires are de-energized. Neutrals in multi-wire branch circuits may be energized when disconnected and must be retested before handling.
• Warning: LASER RADIATION, Class II laser. DO NOT direct laser beam into eyes, DO NOT stare into the beam, or DO NOT view directly with optical instruments as this can cause severe and permanent eye damage.
• Warning: LASER RADIATION, Class II laser. DO NOT direct laser beam into eyes, DO NOT stare into the beam, or DO NOT view directly with optical instruments as this can cause severe and permanent eye damage.
• Warning: Usage of this tester in any way other than that specified by the manufacturer can impair safe operation, resulting in severe injury or death.
• Weight: 2.5 oz (72 g)
• Frequency: 50 - 500 Hz
• Voltage: 12-1000V AC
• Overall Length: 6.45" (16.4 cm)
• Batteries: 2 x AAA
• Material: Plastic and Electronic Assemblies
• Special Features: Laser Distance Measuring, Laser Pointer, Reverse Contrast LCD, LED and Audible Beep Indications, Auto-Power Off, Pocket Clip
• Application: Non-Contact Detection and Testing of AC Voltage with Integrated Laser Distance Meter
• Standard: CATIV 1000V, Laser: Class II, 630nm to 670nm, Max. Power <1mW
• Pollution Degree: 2
• Type: Non-Contact Voltage Tester
• Included: NCVT; 2 x Alkaline 1.5V AAA Batteries
• Drop Protection: 6.6' (2 m)
• Overall Width: 1.21" (3.1 cm)
• Overall Height: 1.32" (3.4 cm)
• Ingress Protection: IP40 Dust Resistant
• Style_Name: with Laser Distance Meter
• Accuracy: 1/16" from 2" to 32.8'; 1/8" from 32.8' to 65.6'
• Battery Type: Alkaline
