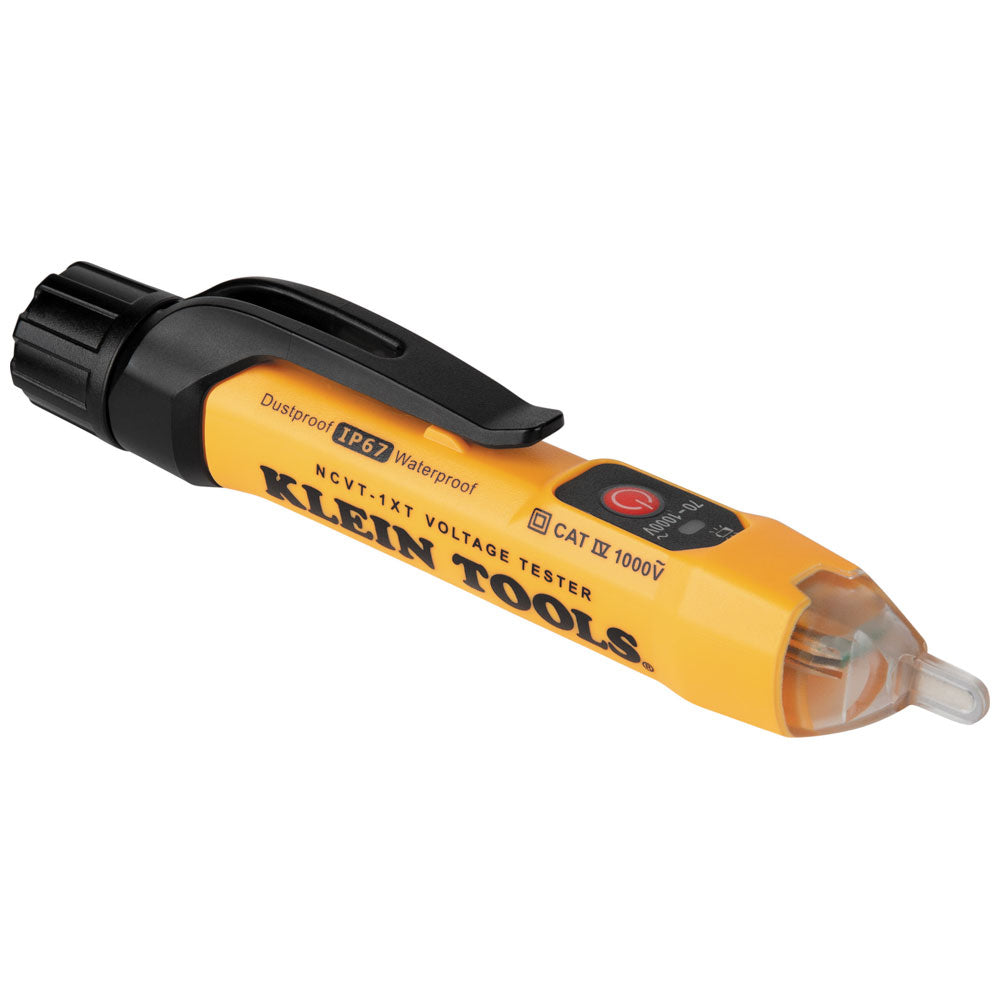

Non-Contact Voltage Tester, 70 to 1000V AC

Klein Tools Non-Contact Voltage Tester detects standard voltage in cables, cords, circuit breakers, lighting fixtures, switches, non tamper-resistant outlets and wires. This tester is dustproof and waterproof with an IP67 rating. The 9.8-Foot (3 m) drop protection provides durability. A bright green LED illuminates to indicate the tester is powered on. It changes to bright red and an audible tone sounds when voltage is detected. CAT IV 1000V safety rating.

• Voltage Tester provides non-contact detection of 70 to 1000V AC in cables, cords, circuit breakers, lighting fixtures, switches, non tamper-resistant outlets and wires
• Durable tester is dustproof and waterproof with an IP67 rating and 9.8-Foot (3 m) drop protection
• Volt Pen with high intensity, bright green LED indicates the tester is powered on
• When voltage is detected, a high intensity, bright red LED illuminates and an audible tone will sound
• Low battery indicator and easy access to battery compartment
• CAT IV 1000V safety rating
• Lightweight compact design with a convenient clip to fit securely in your pocket
• Product not recommended for testing tamper-resistant outlets; use Cat. Nos. NCVT-2P or NCVT-3P in low voltage mode
• Includes instructions and 2 x AAA 1.5 volt batteries
• Auto power-off feature conserves and extends battery life

• Warning: Read, understand, and follow all warnings, cautions, safety information, and instructions in this manual before operating or servicing this tester. Failure to follow instructions could result in death or serious injury.
• Warning: Never assume neutral or ground wires are de-energized. Neutrals in multi-wire branch circuits may be energized when disconnected and must be retested before handling.
• Included: NCVT; Instructions; 2 x AAA 1.5 Volt Batteries
• Drop Protection: 9.8' (3 m)
• Overall Height: 0.97" (2.5 cm)
• Standard: CAT IV 1000V
• Special Features: LED and Audible Beep Indications, Auto-Power Off, Pocket Clip
• Overall Length: 5.34" (13.6 cm)
• Ingress Protection: IP67
• Application: Non-Contact Detection and Testing of AC Voltage
• Overall Width: 1.08" (2.8 cm)
• Voltage: 70 - 1000V AC
• Pollution Degree: 2
• Frequency: 50 - 500 Hz
• Material: Polymer Body and Electronic Components
• Weight: 1.7 oz (47 g)
• Type: Voltage Tester Pen
• Batteries: 2 x AAA
• Accuracy: Detection >70 V
• Battery Type: Alkaline
• Style_Name: Waterproof NCVT
