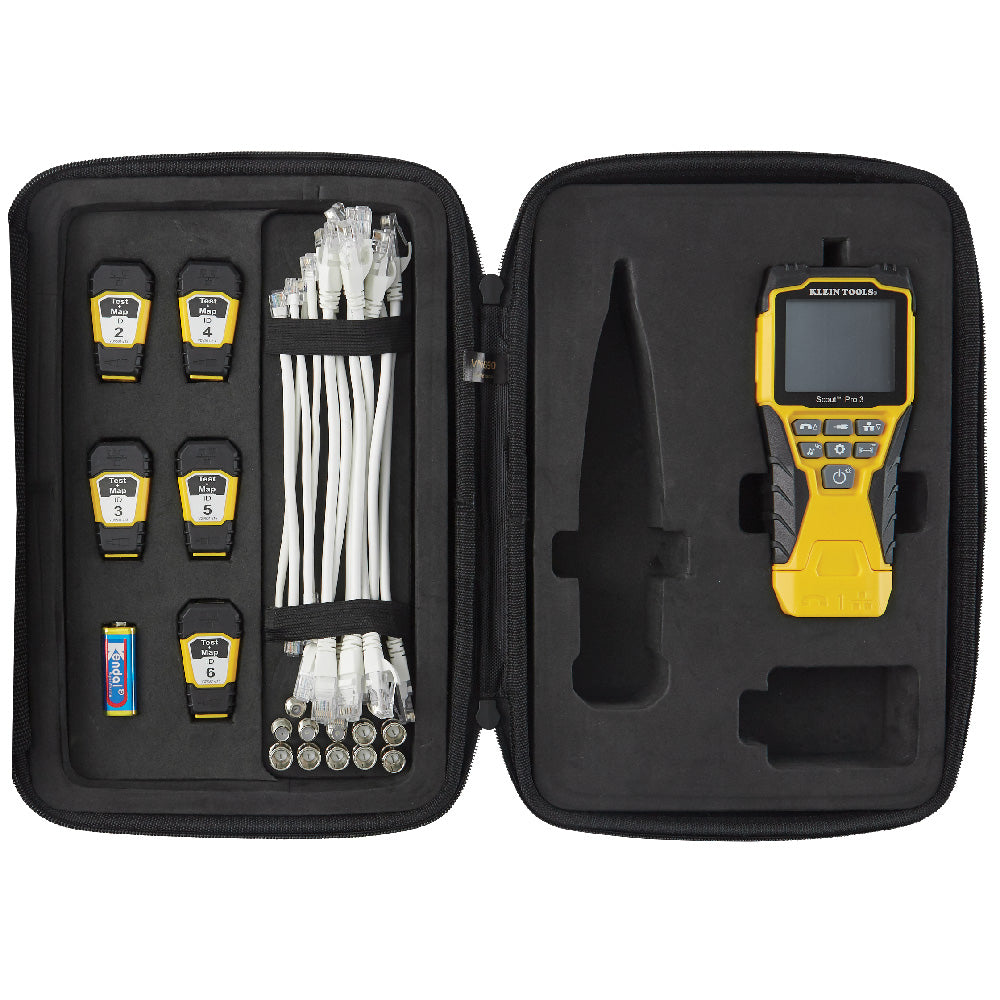

Scout ® Pro 3 Tester with Test + Map™ Remote Kit

The Scout® Pro 3 Tester with Test + Map™ Remote Kit is a versatile cable tester that locates and tests voice, data and video cables. Use the self-storing remote and Test + Map™ remotes #2 - #6 for fast, accurate identification. Identify POE, POE+, A wiring, B wiring and voltage. This tester also measures cable length. This kit verifies accurate cable installations each time. Backlit display assists in reading results in lower light.

• Tests voice (RJ11/12), data (RJ45) and video (F-connector) coax connections
• Detect, identify and test Power over Ethernet (PoE)
• Wiremap testing, testing for Miswires, Split Pairs, Short Faults, Open Faults, and Shield
• Measures cable length up to 2000 feet
• Trace cables, wire pairs and individual conductor wires with a multi-style tone generator (requires analog probe Cat. No. VDV500-123; sold separately)
• Includes 1 self-storing Test+Map remote (#1), 5 Test+Map remotes (#2-6), 7 female-to-female, 7 male-to-female coax barrel adapters, 7 RJ45 jumper cables (6-Inch), 2 RJ11, 2 RJ12 jumper cables (6-Inch)
• Includes a 9V battery and convenient carrying case
• Hub blink mode to identify port location on a hub or a switch
• 1 dockable smart remote, 5 loose smart remotes plus 7 female-to-female and 7 male-to-female coax adapters
• Backlit LCD screen displays cable length, wiremap, cable ID and test results

• Warning: Read, understand and follow all instructions, cautions and warnings attached to and/or packed with all test and measurement devices before each use.
• Warning: Always wear approved eye protection.
• Warning: Do NOT use on energized circuits.
• Warning: Do NOT use on energized circuits.
• Overall Length: 7" (17.8 cm)
• Special Features: Measures Cable Length; Power over Ethernet; Backlit LCD; Hub Blink
• Overall Width: 1.5" (3.8 cm)
• Weight: 1.2 lb (0.5 kg)
• Material: Plastic and Metal
• Type: Twisted Pair, DATA, Voice, LAN, and Coaxial
• Application: Cable Testing
• Overall Height: 3.2" (8 cm)
• Connection & Adapter Types: RJ11, RJ12, RJ45, Coax F
• Faults Detected: Open, Short, Miswire
• Included: Tester, Self-storing Test + Map™ Remote (#1), 5 - Test + Map™ Remotes (#2 - #6), 7 - Coaxial Barrel Adapters (female-to-female), 7 - Coaxial Barrel Adapters (male-to-female), 7 - RJ45 Jumper, 2 - RJ11 Jumper, 2 - RJ12 Jumper, Carrying case, 9V alkaline battery
• Test & Measure Types: Ethernet, Data, Coaxial
• Supported Remotes: 18
• Standard: CE
• Battery Life: Active: 50 hr
• Batteries: 9V Alkaline
• Display: Backlit LCD
• Cable Type: DATA:, Shielded or Unshielded, CAT3, CAT5E, CAT6, CAT6A, CAT7; COAXIAL: RG59, RG6/6Q
• Multiple Style Tone Generator: Yes (5); Requires Tracing Probe (Cat. No. VDV500-123); Sold Separately
• Test-n-Map ID Remotes: (1) Self-Storing, (5) Test + Map™ Remotes (#2 - #6)
• Drop Protection: 2 m
• Style_Name: w/Test + Map Remotes, PoE
• Battery Type: Alkaline
• Accuracy: Length Measurement: +/- 5% (ft) or 5% m
