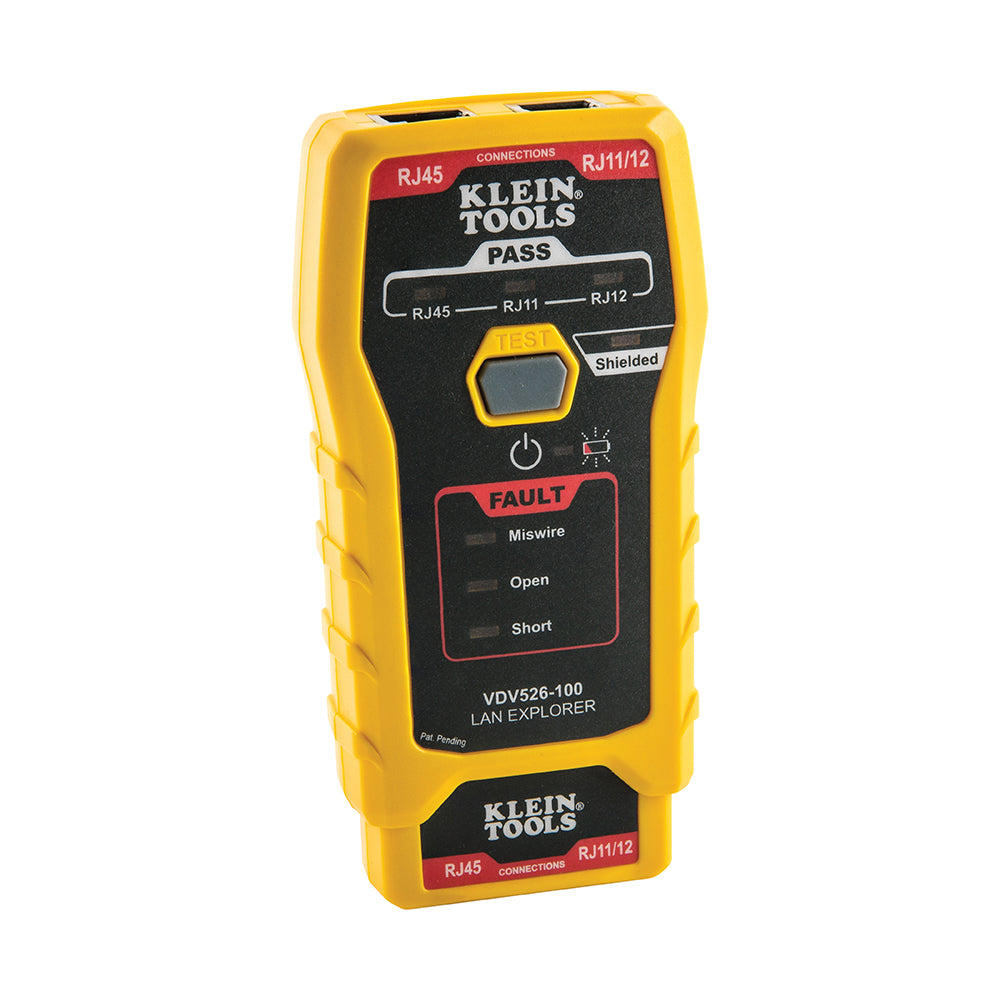

Network Cable Tester, LAN Explorer® Data Cable Tester with Remote

This simple, compact data cable tester for RJ11, RJ12 and RJ45 terminated voice and data cables for Miswires, Open-Faults, Short-Faults and Shield. Instant LED responses indicate cable status. The test remote stores securely in the tester body. The Auto Power-Off feature shuts the tester down automatically to save the 9V battery (included).

• Cable tester with single button testing of RJ11, RJ12 and RJ45 terminated voice and data cables
• Tests CAT3, CAT5e and CAT6/6A cables
• Fast LED responses indicate cable status (Pass, Miswire, Open-Fault, Short-Fault, and Shield)
• Test remote stores securely in tester body
• Compact tester easily fits in your pocket
• Auto Power-off feature to conserve battery life (9V included)
• Low battery indicator
• Replacement remote (VDV999-150) available (sold separately)

• Warning: Always wear approved eye protection.
• Warning: Read all safety Information before using the product.
• Warning: Carefully read all instructions.
• Warning: Carefully read all instructions.
• Warning: Do NOT connect to live AC power.
• Application: Cable Testing to 1000' (305 m)
• Multiple Style Tone Generator: No
• Batteries: 1 x 9V
• Battery Life: Active: 80 hr; Standby: 3.5 yr.
• Overall Height: 1.25" (3.2 cm)
• Display: LED
• Connection & Adapter Types: RJ11, RJ12, RJ45
• Special Features: LED response
• Weight: 4.0 oz. (116 g)
• Overall Width: 2.5" (6.4 cm)
• Overall Length: 5" (12.7 cm)
• Supported Remotes: VDV999150
• Faults Detected: Pass, Miswire, Open-Fault, Short-Fault, and Shield
• Type: Twisted Pair, DATA, Voice, LAN
• Test & Measure Types: Voice, Data, RJ45, RJ11
• Material: Plastic and Stamped Metal
• Test-n-Map ID Remotes: 1
• Drop Protection: 2' (0.6 m)
• Included: Tester, Remote, 9V Battery
• Cable Type: CAT3, CAT5e, CAT6/6A
• Style_Name: Tester
• Battery Type: Alkaline
