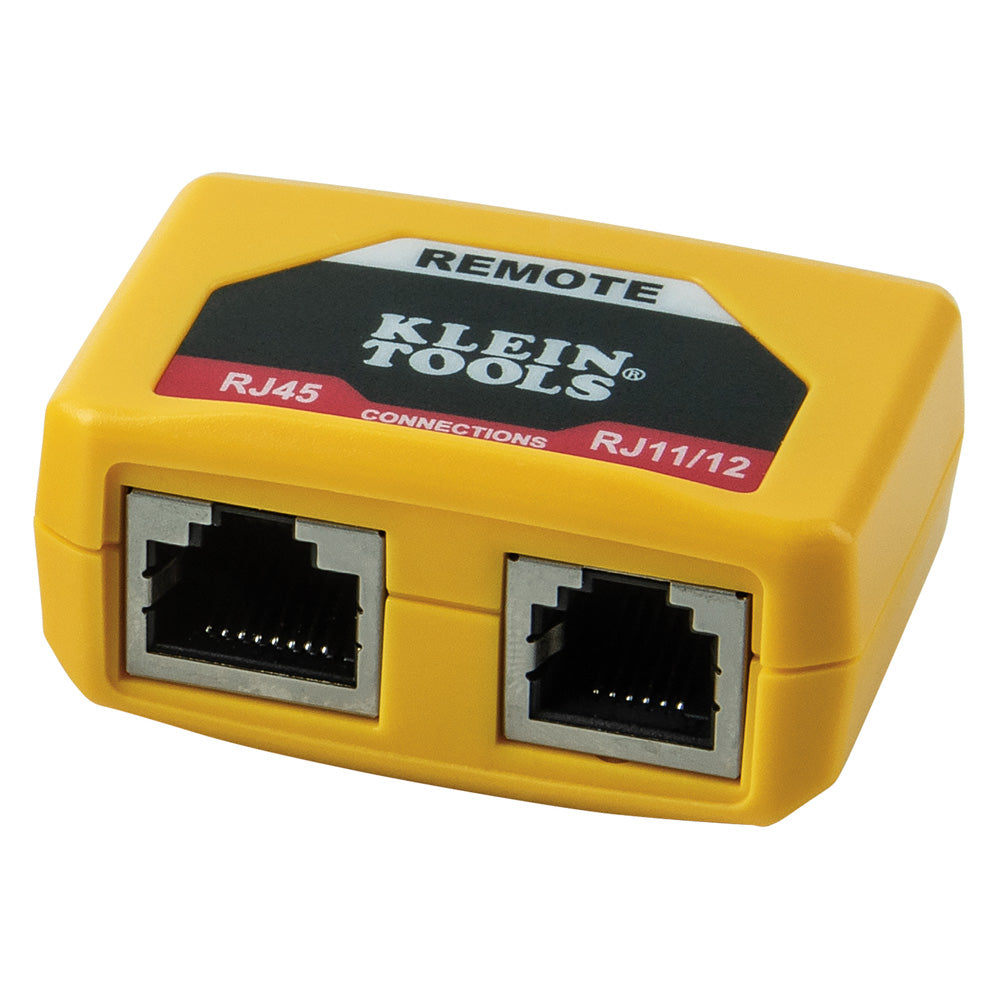

Replacement Remote for LAN Explorer

This replacement remote works with Klein's LAN Explorer tester (VDV526-100). Tests RJ11, RJ12 and RJ45 terminated voice and data cables for Miswires, Open-Faults and Short -Faults. The remote stores securely in the tester body.

• For use with the LAN Explorer (VDV526-100)
• Test RJ11, RJ12 and RJ45 terminated cables
• Tests CAT3, CAT5e and CAT6/6A cable
• Stores securely in the tester body
• Weighs only 0.06 pounds (0.03 kg)
• Used with VDV526-100 to detect Miswires, Open-Faults and Short-Faults
• Compact in size

• Warning: Read, understand and follow all instructions, cautions and warnings attached to and/or packed with all test and measurement devices before each use.
• Warning: Always wear approved eye protection.
• Material: Plastic and Stamped Metal
• Overall Height: 1" (2.5 cm)
• Application: Cable Testing
• Weight: 1 oz (27 g)
• Special Features: LED Response
• Overall Width: 1.8" (4.6 cm)
• Overall Length: 1.25" (3.2 cm)
• Connection & Adapter Types: RJ11, RJ12, RJ45
• Type: #1 Replacement Remote
• For Use With: VDV526-100 LAN Explorer
• Style_Name: Replacement Remote
