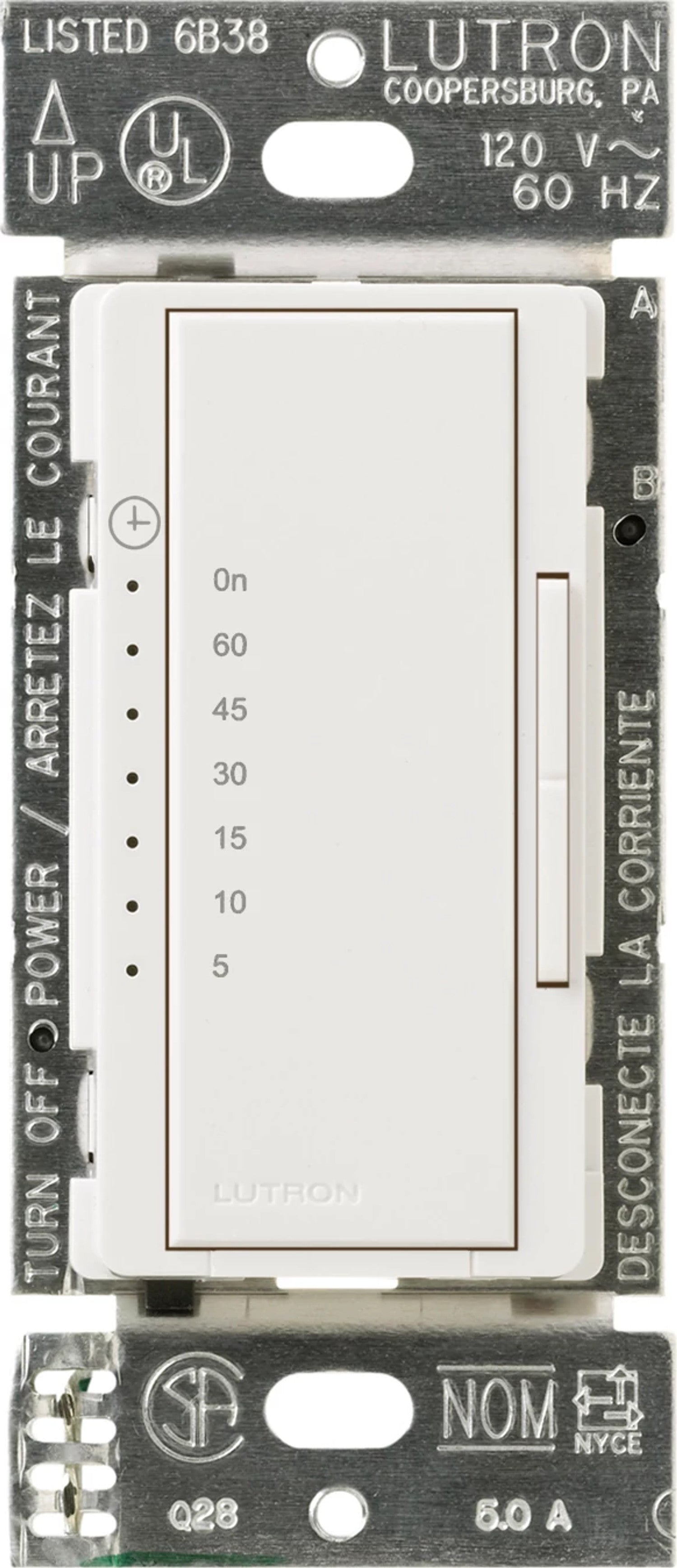

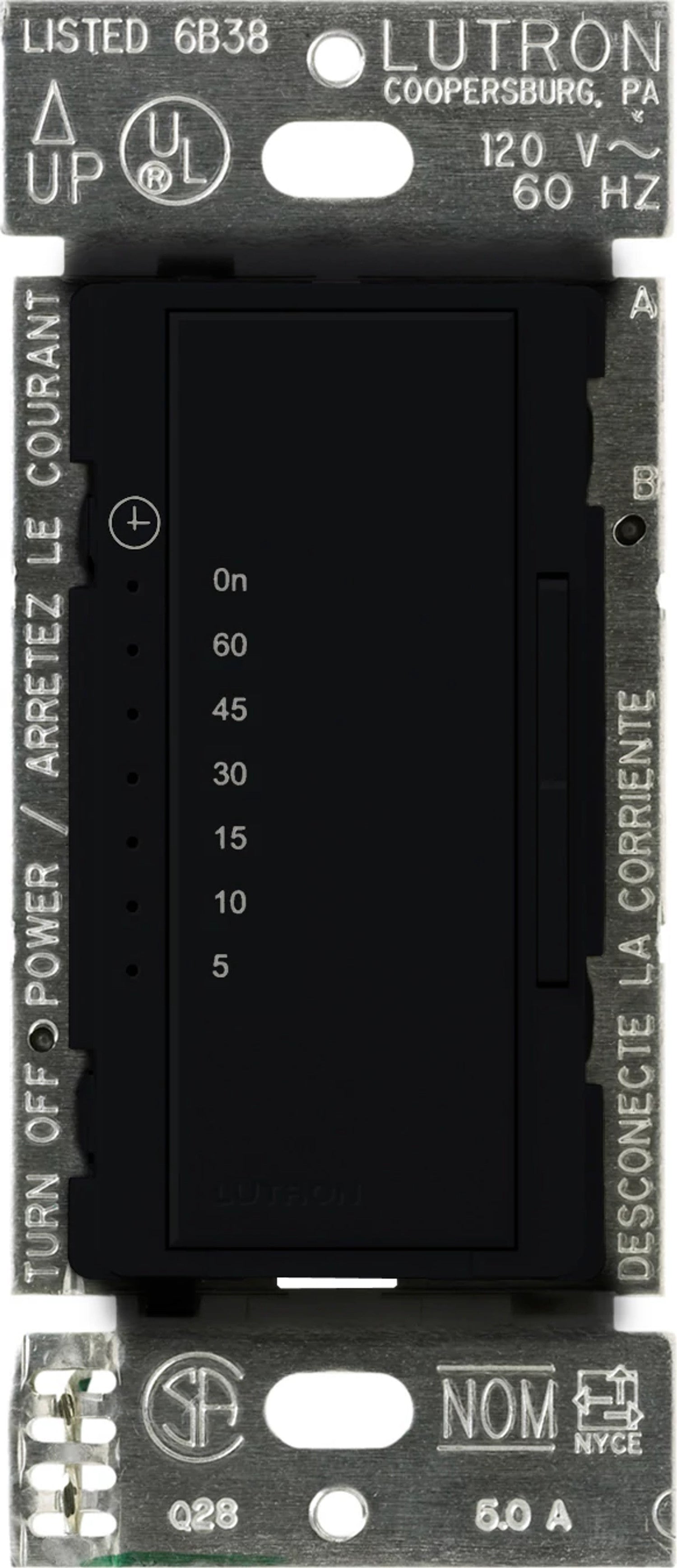

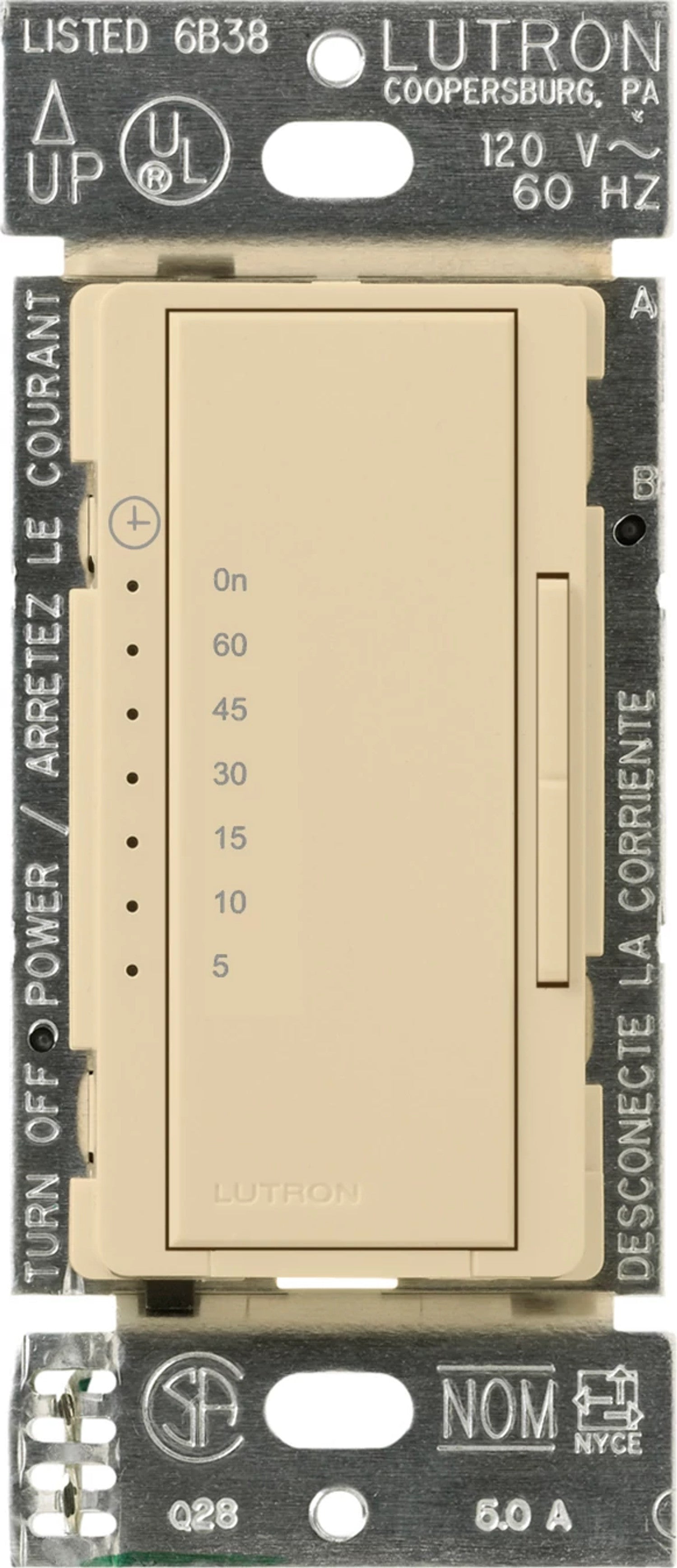

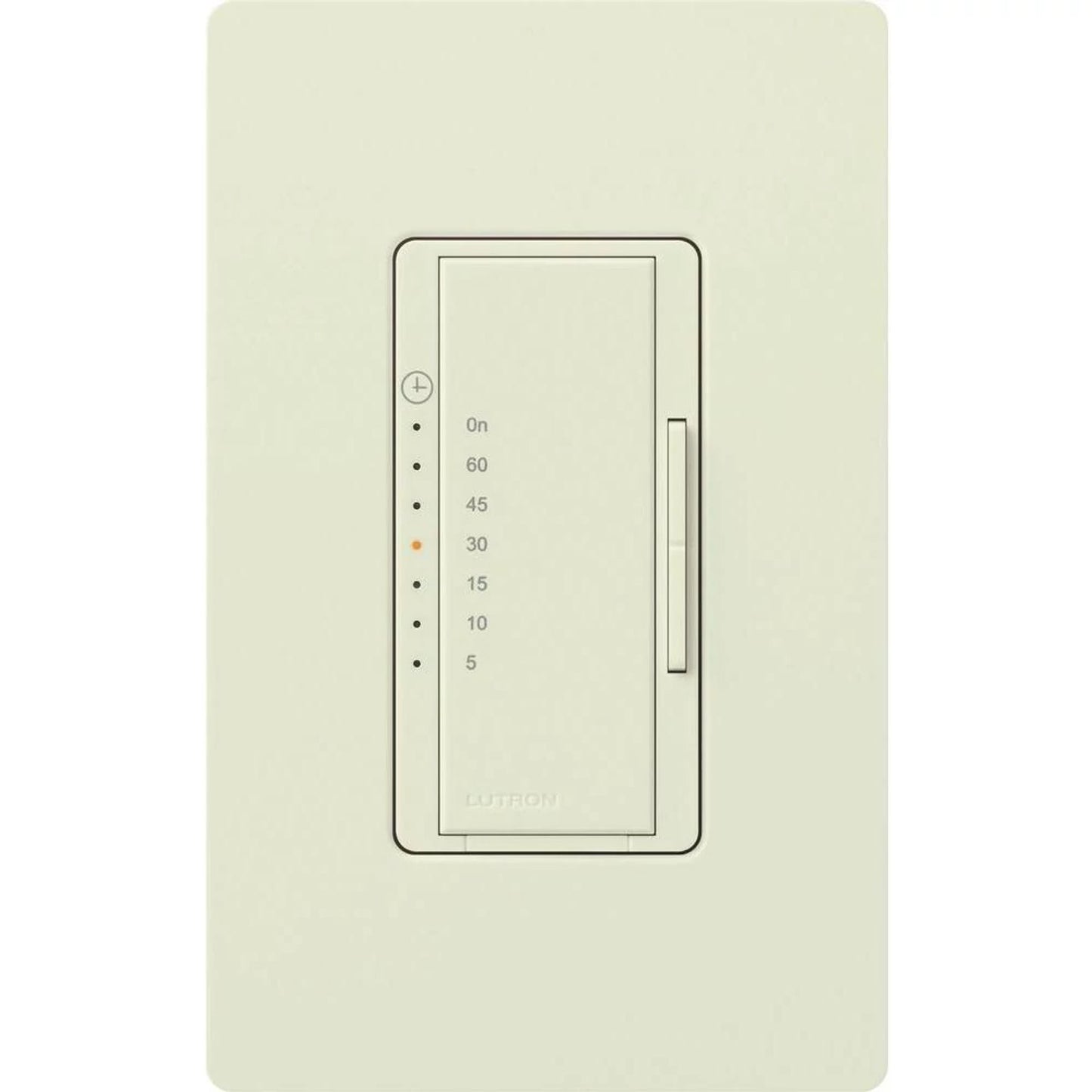

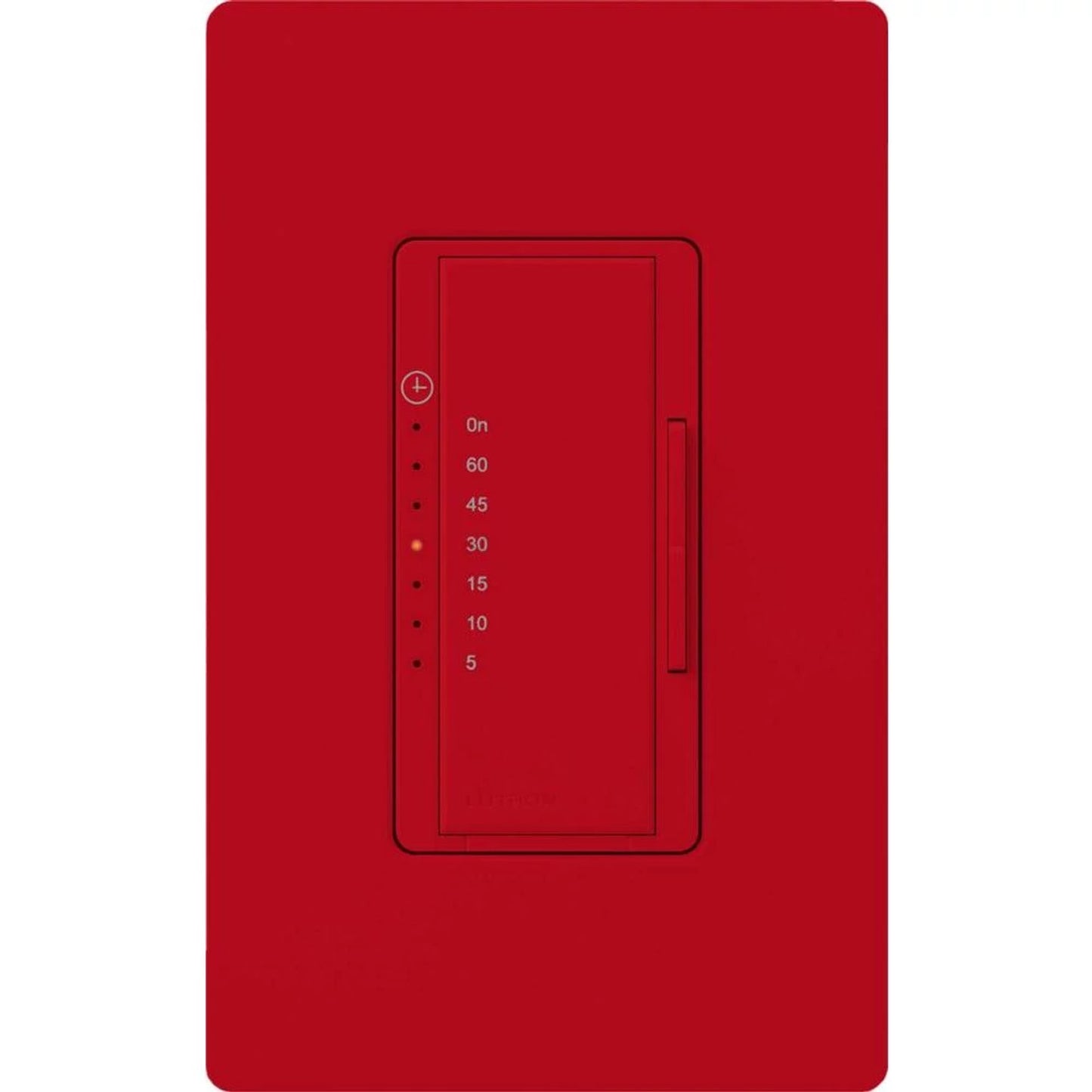

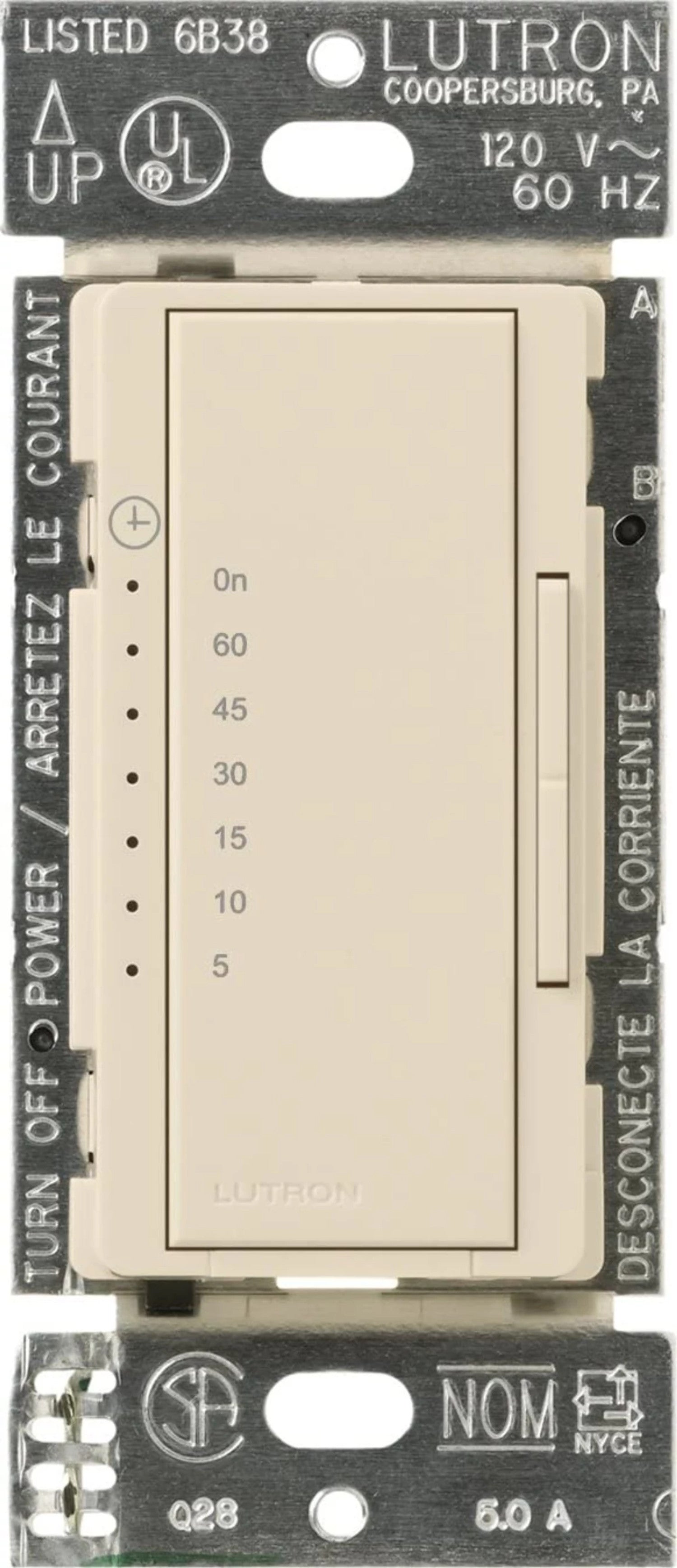

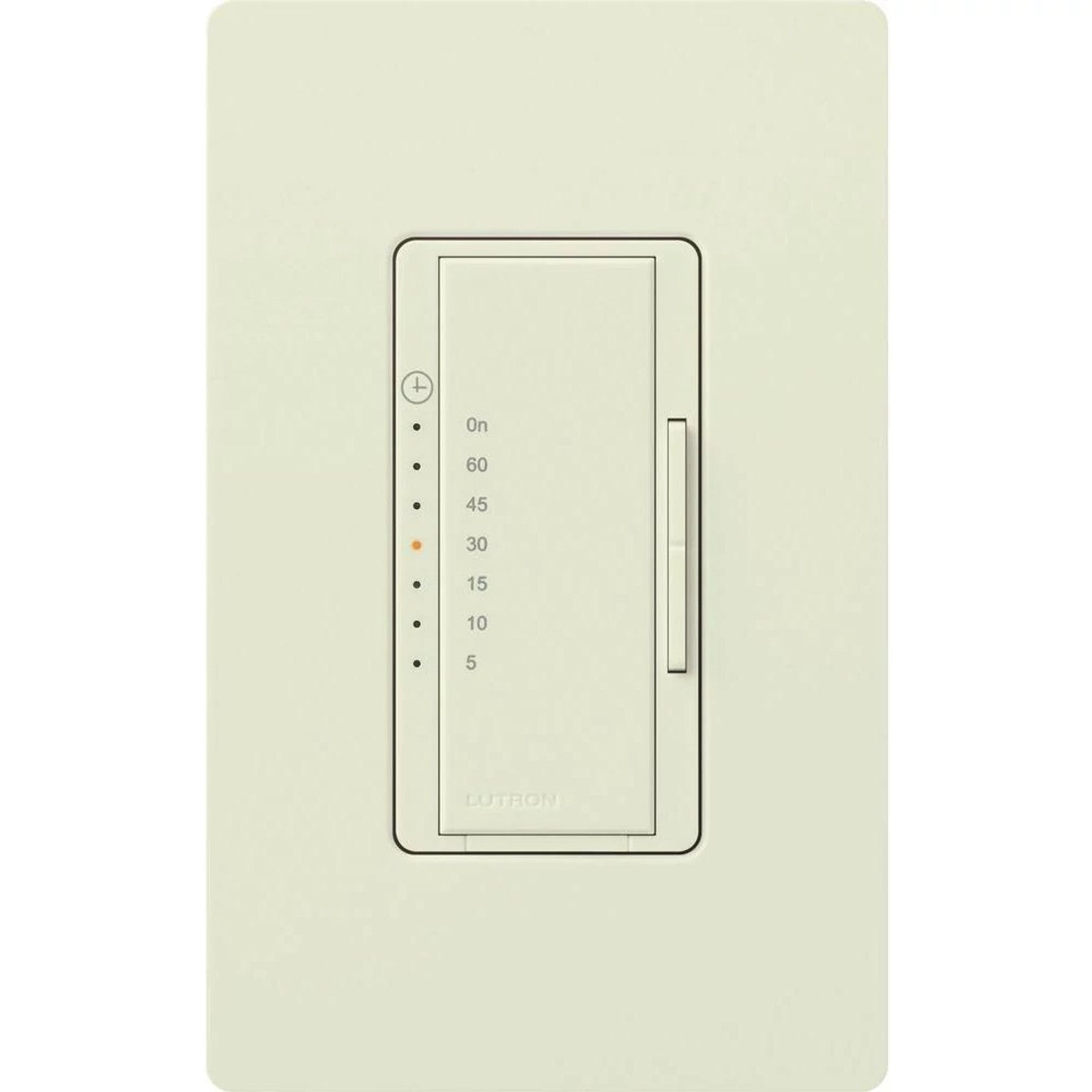

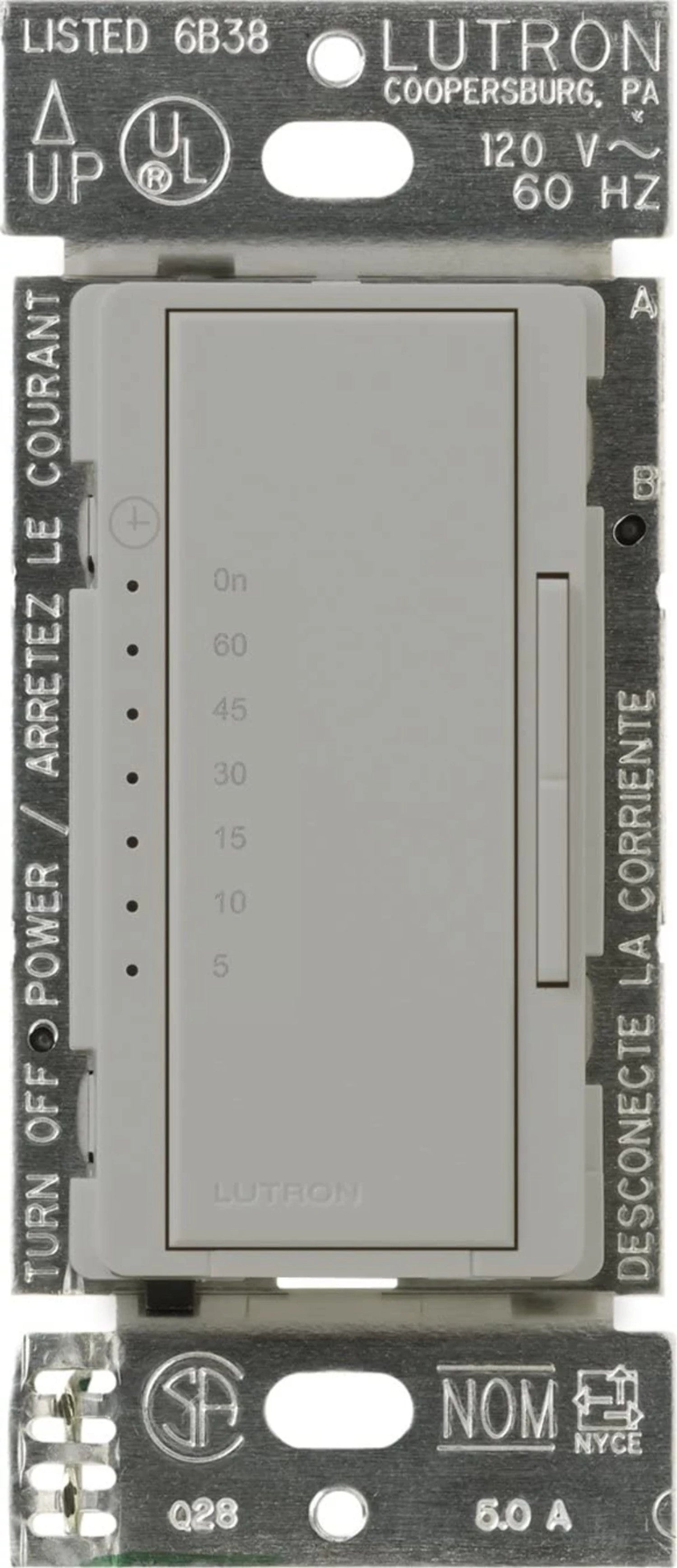

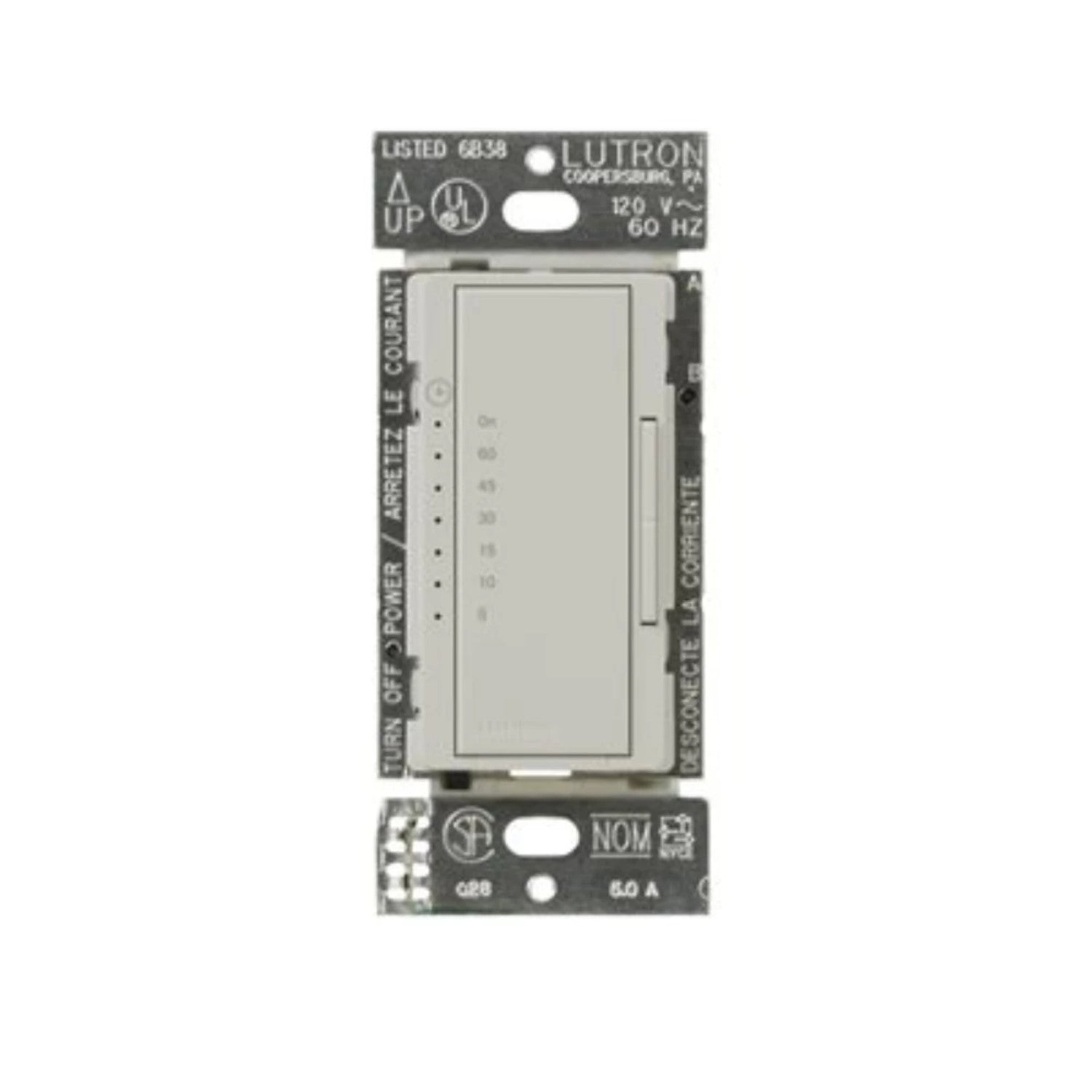

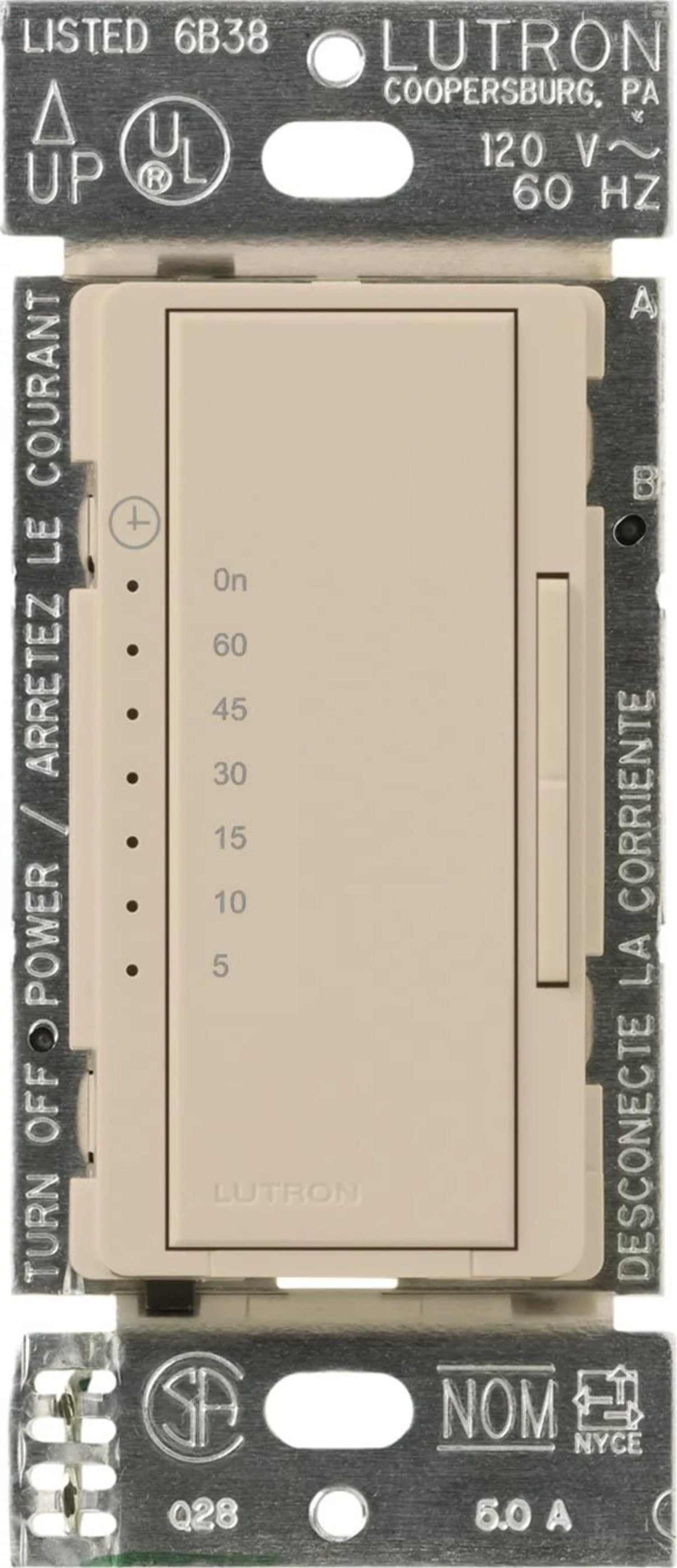

Maestro Countdown Timer, Multi-location/single-pole, neutral required, 120V/600W/VA (5A)

The Lutron Maestro Timer Switch for Fans and Lights is rated to work with up to 150W of LED bulbs, 600W ELV/Incandescent/Halogen, 450W MLV, or 3A general purpose fans. The Maestro Timer Switch requires a neutral wire making it suitable for DC and high efficiency exhaust fans. The Maestro Timer Switch is compatible with 3-way/multi-location switching applications; Lutron Accessory switches are required (MA-AS/MSC-AS). Use up to 9 Lutron Accessory switches with one Lutron Maestro Timer Switch; existing 3-way switches are not compatible. The Maestro Timer switch completes any project and matches the Maestro aesthetic for areas that don’t require a Maestro dimmer or sensor. Save energy by using the Maestro Countdown Timer in closets, attics, bathrooms, and other low-traffic areas to ensure a light or fan is never left on for a long time. Use the large tap switch to turn the timer on, or double tap for always on; use the raise/lower buttons on the side to adjust to the desired time-out option ranging from 5-60 minutes. Softly lit orange lights indicate the time remaining before turn-off. Top green LED indicator light labeled ON, has no time limit. The bottom LED blinks rapidly to indicate one minute of time remaining. Available in 10+ colors. Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately).

• Family/Collection: Maestro
• Rated for 5 A incandescent/halogen, magnetic low-voltage, electronic low-voltage, LED/CFL, or fluorescent loads, or 3 A general-purpose fans. Use with exhaust fans to reduce moisture, mold, and mildew in bathrooms. Use with lighting. Tap on to start timer (5-60 minutes); tap off; tap twice for full on with no timer action. Touch rocker to adjust countdown time. One minute warning before lights/fan go off. Timer advanced programming features available.
• Includes (1) Maestro Countdown Timer Switch with Neutral; Gloss Finish
• Rated to work with up to 150W LED bulbs, 600W ELV/Incandescent/Halogen, 450W MLV or 3A general purpose fans
• Neutral required; 120V
• 5W/.05A Minimum Load, Suitable For Dc And High Efficiency Exhaust Fans
• Tap once to start timer or double tap for always on; use raise/lower buttons to adjust countdown time anywhere from 5 to 60 minutes (5, 10, 15, 30, 45, and 60 minutes)
• Accessory switch (MA-AS/MSC-AS) required for 3-way/multi-location applications; traditional 3-way switches will not work with this device
• Use up to 9 accessory switches (MA-AS/MSC-AS) with one Lutron Maestro 8A Timer Switch
• Orange LEDs indicate timer duration or remaining time in minutes; Bottom LED blinks rapidly to indicate one minute of time remaining
• Available in 10+ colors

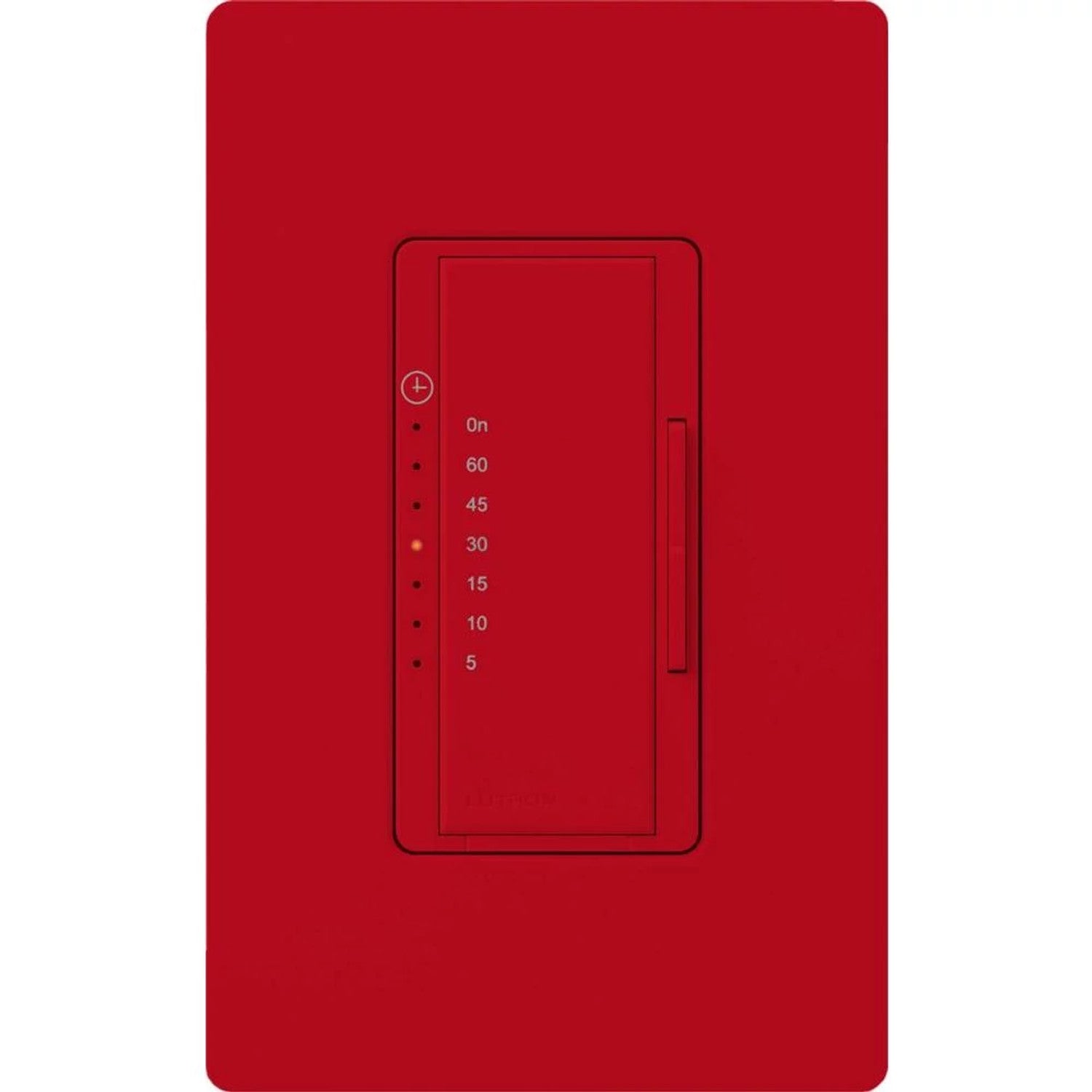

• Pairs perfectly with Lutron Claro wall plates for consistent color matching (wall plates are sold separately)

• Amperage Rating: 5
• Application: Lighting Control
• Brand Name: Lutron
• Connection: Screw terminal
• Contact Configuration: N-O
• Contact Rating: 5
• Insulation: Plastic
• Mounting: Wallbox
• Number Of Poles: 1
• Size: 4.69 x 2.94
• Special Features: Rated for 5 A incandescent/halogen, magnetic low-voltage, electronic low-voltage, LED/CFL, or fluorescent loads, or 3 A general purpose fans. Use with exhaust fans to reduce moisture, mold, and mildew in bathrooms. Use with lighting. Tap on to start timer (5-60 minutes); tap off; tap twice for full on with no timer action. Touch rocker to adjust countdown time. One minute warning before lights/fan go off. Timer advanced programming features available.
• Standard: UL, cUL, IEC, ANSI/IEEE
• Sub Brand: Maestro
• Timing Range: 5 - 60 min
• Type: Countdown timer control switch, multi-location/single-pole
• Voltage Rating: 120
• Wattage: 600
