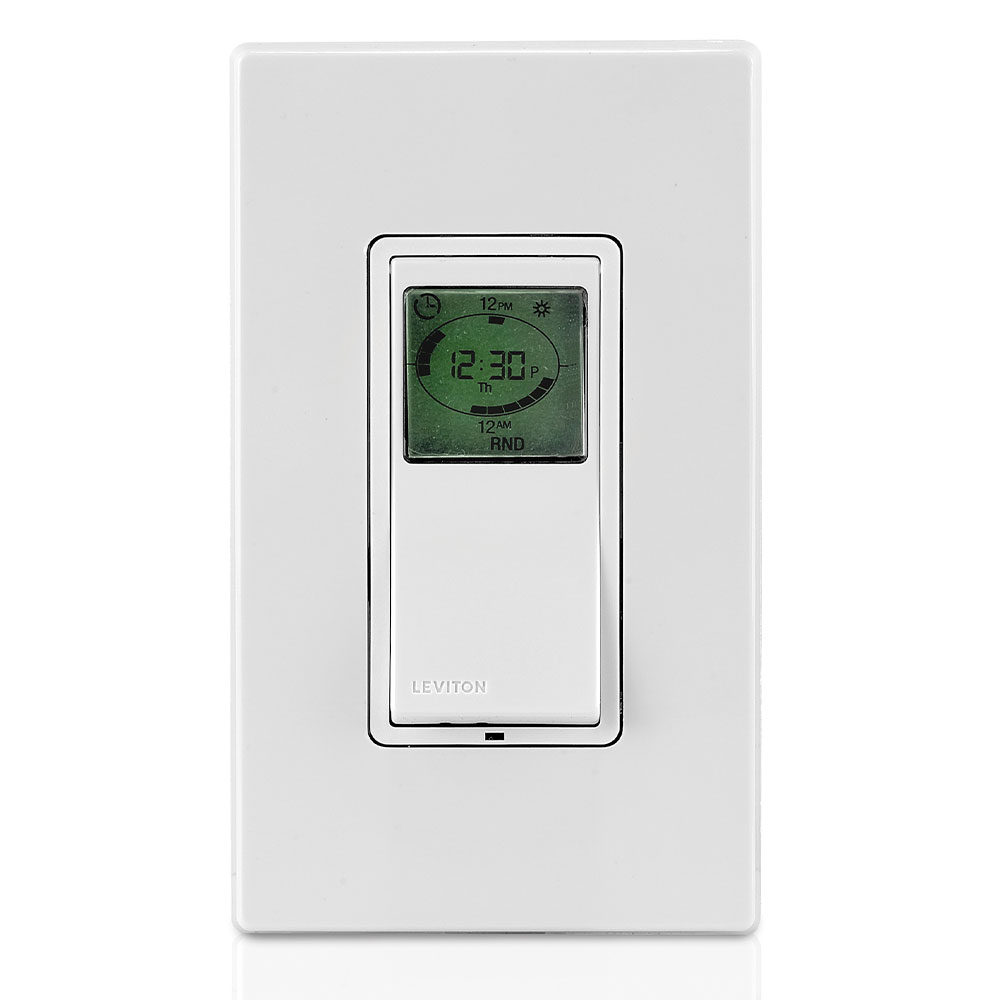

Indoor Decora 24-Hour Programmable Timer

• CONVENIENT – Automate interior/exterior lights and more
• ENERGY SAVING – Reduce energy consumption and extend bulb life
• FLEXIBLE – Program up to 49 on/off event settings per day. See "How To" programming videos below
• SMART – Adjusts to local sunrise/sunset and daylight saving
• Timer settings at-a-glance with large, back-lit display
• Flexibility to program weekdays, weekends or any combination of days
• Astronomical clock automatically adjusts to local sunrise/sunset times
• Automatic daylight savings time adjustment option
• Single pole, 3-way or more when used with the VP0SR matching or coordinating remote switch
• Rechargeable battery keeps time during temporary power outages
• White with ivory and light almond faceplates included
• Other color change kits available
• Obtaining Longitude/Latitude Coordinates Find your longitude and latitude coordinates to enable the VPT24 to provide accurate local sunup/sundown times by clicking the link below and entering your home address. Use the first 2 digits (degrees) of the coordinates when programming the sunup/sundown feature. Ignore the (-) sign if one is shown in your coordinate results. Longitude/Latitude Coordinates Lookup

Patents

• US8786137
• USD634276
• USD646231
• USD656102

• Country of Origin: China

Product Features

• California Title 24: No
• Color: White, Ivory, Light Almond
• Feature: Single-Pole, 3-Way or More Applications
• Neutral: Required
• Ordering Notes: Incl White, Ivory and Light Almond Color Change Kit
• Pole: 3
• Power Consumption: < 1 Watt
• Standards and Certifications: UL/CSA
• Style Name: Decora
• Timer Type: 24 Hour LCD Programmable
• Type: Electronic
• Voltage: 120 VAC
• Warranty: 5-Year Limited
• Wire: 3
