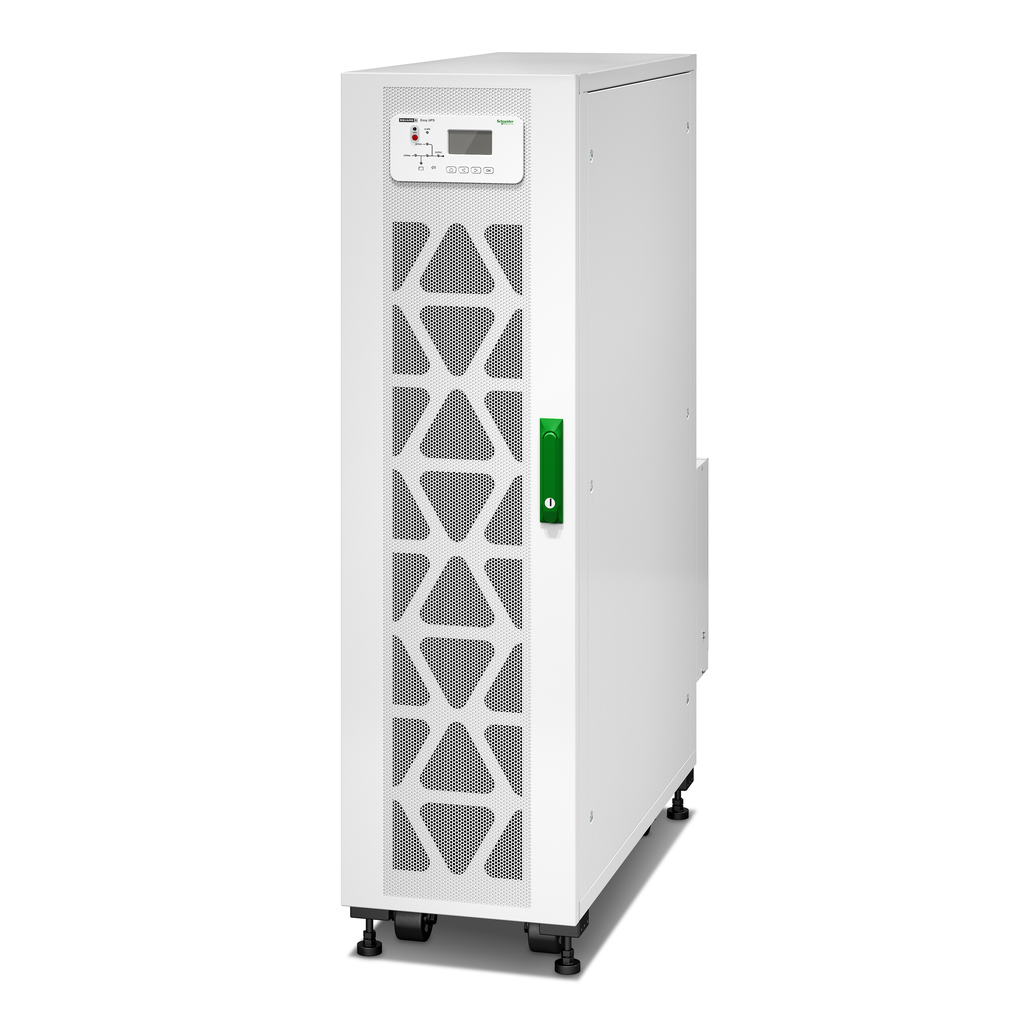

Easy UPS 3S 30 kVA 208V 3:3 UPS for internal batteries, Start-up 5x8

• Other Input Voltages: 220 V
• Rated Power In Va: 30 kVA
• Provided Equipment: Dust filter || installation manual || Start-Up Service
• Main Input Voltage: 208 V 3 phase
• Kw Rating: 30 kW
• Other Output Voltages: 220 V

Batteries & Runtime

• Maximum Short-Circuit Current: 10 kA
• Battery Voltage: +/- 120 V
• Battery Type: internal modular battery

Communications & Management

• Control Panel: Touch Screen LCD User Interface

Overview

• Lead Time: Usually Ships within 2 Weeks
• Presentation: High-efficiency 3-phase UPS that features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 30 kVA UPS, ideal for small and medium businesses. Includes dust filter and conformance-coated boards for harsh environments. This UPS is for internal batteries, but is supplied without batteries, so you can easily customize the battery runtime. Includes 5x8 start-up service.

Output

• Bypass Type: Built-in Static Bypass

Conformance

• Product Certifications: UL 1778 5th edition || IEC 62040-2 || FCC part 15 class B || IEC 62040-3 || cTUVus || ISTA 2B

Contractual warranty

• Warranty: 1 year on-site repair or replace with factory authorized Start-Up

Environmental

• Storage Relative Humidity: 0-95 % non-condensing
• Ambient Air Temperature For Operation: 0-40 °C
• Storage Altitude: 0-15000 m
• Ip Degree Of Protection: IP20
• Ambient Air Temperature For Storage: -15-40 °C
• Online Thermal Dissipation: 2100 Btu/h
• Relative Humidity: 0-95 % non-condensing
• Acoustic Level: 68 dBA
• Operating Altitude: 0...4921 ft

Physical

• Height: 140 cm
• Net Weight: 155 kg
• Color: White RAL 9003)
• Width: 38 cm
• Depth: 105 cm

Offer Sustainability

• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP2111020
• Sustainable Offer Status: Green Premium product
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• China Rohs Regulation: Product out of China RoHS scope. Substance declaration for your information.
• Circularity Profile: ENVEOLI2111020
• Eu Rohs Directive: Compliant

Input

• Input Frequency: 40 - 70 Hz
• Maximum Short Circuit Withstand (Icw): 10 kA
