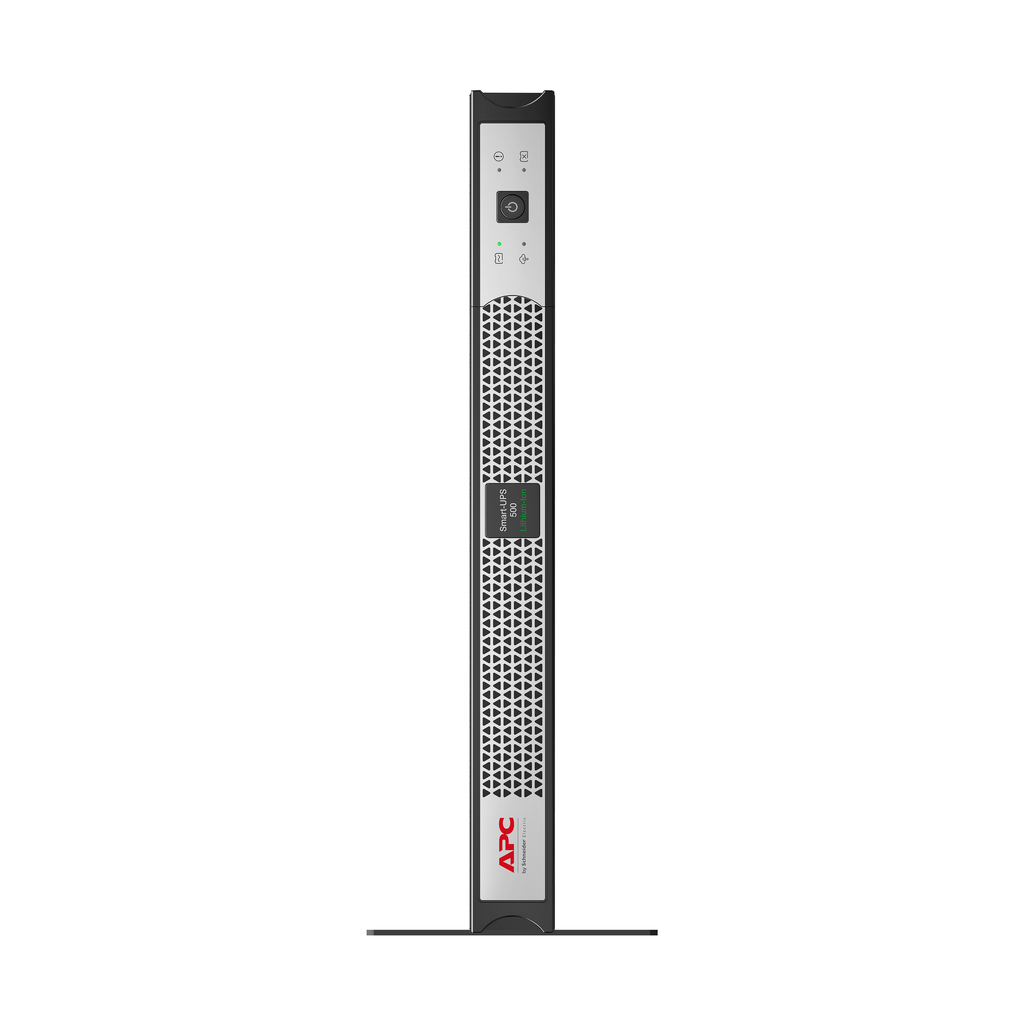

APC Smart-UPS, Line Interactive, 500VA, Lithium-ion, Rackmount 1U, 120V, 4x NEMA 5-15R outlets, SmartConnect Port, Short Depth

APC Smart-UPS, Line Interactive, 500VA, Lithium-ion, Rackmount 1U, 120V, 4x NEMA 5-15R outlets, SmartConnect Port, Short Depth

Part Number: SCL500RM1UC

UPC:

Contact for Price
View full details

Product Description

  • Number Of Cables: 1
  • Cable Length: 6 ft
  • Rated Power In Va: 500 VA
  • Provided Equipment: CD with software || Documentation CD || Installation guide || Rack Mounting support rails || USB cable
  • Main Input Voltage: 120 V
  • Battery Type: Li-Ion (Lithium Ion)
  • Number Of Rack Unit: 1U
  • Kw Rating: 400 W

Batteries & Runtime

  • Battery Life: 8-10 year(s)

General

  • Additional Specification: cloud-enabled monitoring

Communications & Management

  • Communication Port Support: SmartConnect Ethernet port: for cloud monitoring feature availability varies by terms of use
  • Alarm: alarm when on battery : distinctive low battery alarm : configurable delays
  • Free Slots: 0
  • Control Panel: LED status display with On Line : On Battery : Replace Battery and Building Wiring Fault

Overview

  • Lead Time: Usually in Stock

Output

  • Harmonic Distortion: Less than 5%

Conformance

  • Product Certifications: cULus || NOM

Contractual warranty

  • Warranty: 5 year repair or replace

Environmental

  • Storage Relative Humidity: 10-90 % non-condensing
  • Ambient Air Temperature For Operation: 0-40 °C
  • Storage Altitude: 0-50000 ft
  • Ip Degree Of Protection: IP20
  • Ambient Air Temperature For Storage: -15-45 °C
  • Relative Humidity: 10-90 % non-condensing
  • Acoustic Level: 45 dBA
  • Operating Altitude: 0...10000 ft

Physical

  • Height: 4.4 cm
  • Usb Compatible: Yes
  • Net Weight: 4.18 kg
  • Mounting Mode: rack-mounted
  • Color: Black with silver front bezel
  • Width: 43.2 cm
  • Depth: 23.2 cm

Offer Sustainability

  • Rohs Exemption Information: Yes
  • Mercury Free: Yes
  • Environmental Disclosure: ENVPEP1812001_EN
  • Sustainable Offer Status: Green Premium product
  • Take-Back: Take-back program available
  • Reach Regulation: Reference contains Substances of Very High Concern above the threshold
  • Optimized Energy Efficiency: Energy efficient product
  • Circularity Profile: ENVEOLI1812001_EN
  • Eu Rohs Directive: Compliant

Input

  • Input Frequency: 50/60 Hz +/- 3 Hz auto sensing
  • Efficiency At Full Load: 92...139 V
  • Input Protection Type: circuit breaker
Spec Sheet

Instruction sheet

PRODUCT SAFETY DATA SHEET of LI-ION BATTERY PACK Packed With Equipment SCL500RM1UC, SCL500RM1NC, SCL500RM1UNC, SCL400RMJ1U, SCL500RMI1U, SCL500RMI1UC, SCL500RMI1UNC - PRODUCT_SAFETY_DATA_SHEET_LI_ION_BATTERY_PACK_Packed_With_Equipment_SCL500_SCL400_v1_4_E
APC Smart-UPS Lithium Ion Line-Interactive (SCL and SMTL) Shipping Guide - SCL+and+SMTL+Series+UPS+Shipping+Guide (pdf)
Addendum - California Proposition 65 Warning Statement for California Residents (DINP) - SU+UM+990-6463+EN (pdf)

User guide

Important Safety Instructions SAVE THESE INSTRUCTIONS - SAFETY_990-6072B_EN (pdf)
APC SMART-UPS 500 VA, Short-depth, Rack-Mount with Lithium-ion batteries, 120 V - Operation Manual - SU_UM_990-91144B_EN (pdf)
UPS SCL ID1049 v16.5 Firmware Release Notes - UPS+SCL1049+Rev16.5+-+Firmware+Release+Notes (pdf)
Smart-UPS SCL500RM1UC Installation Guide - SU+QS+990-91145+MN01+EN (pdf)
UPS SCL ID1030 v15.5 Firmware Release Notes - UPS+SCL1030+Rev15.5+-+Firmware+Release+Notes (pdf)

Brochure

Smart-UPS and Smart-UPS On-Line Guide - 998-21038214-DCSolutions-Smart-UPS (pdf)
APC Smart-UPS Lithium-ion Short-depth Rackmount 120V Brochure - Smart-UPS+Lithium-ion+500-3000VA+120V+Brochure+998-20480550_GMA-US_2023_V1_Marlene (pdf)
EcoStruxure Ready Smart-UPS Family Brochure (SMC, SMT, SMTL, SMX) - EcoStruxure+Ready+Smart-UPS+Family+Brochure+-+apc.com (pdf)

Firmware

Network Management Card 2 (NMC2) v7.1.2 Firmware for Smart-UPS with AP9630/31 - apc_hw05_aos712_sumx712_bootmon109.exe
Network Management Card 2 (NMC2) v7.1.2 Firmware for Smart-UPS with AP9630/31 - sumx_712_frFrdeDeitItesEsptBr.lpk
Network Management Card 3 (NMC3) Firmware v2.5.0.6 for Smart UPS with AP9640/41/43 - 990-6322L-EN (pdf)
Network Management Card 3 (NMC3) Firmware v2.5.0.6 for Smart UPS with AP9640/41/43 - apc_hw21_su_2-5-0-6.exe
Network Management Card 2 (NMC2) v7.1.2 Firmware for Smart-UPS with AP9630/31 - sumx_712_frFrruRuzhCnjaJakoKo.lpk
Network Management Card 2 (NMC2) v7.1.2 Firmware for Smart-UPS with AP9630/31 - TME12689A (pdf)
Network Management Card 3 (NMC3) Firmware v2.4.0.11 for Smart UPS with AP9640/41/43 - 990-6322K-EN (pdf)
Network Management Card 3 (NMC3) Firmware v2.4.0.11 for Smart UPS with AP9640/41/43 - apc_hw21_su_2-4-0-11.exe

Circularity Profile

End of Life instructions for SmartUPS Lion_EN - ENVEOLI1812001_EN (pdf)

Technical Drawing

SCL500RM1UC - APC Smart-UPS Li-Ion Short depth 500VA 120V with SmartConnect - JSHR-BBZBW2_R0_EN (pdf)
SCL500RM1UC - APC Smart-UPS Li-Ion Short depth 500VA 120V with SmartConnect - SCL500RM1UC_-_APC_Smart-UPS_Li-Ion_Short_depth_500VA_120V_with_SmartConnect (dwg)

Environmental Disclosure

Product Environmental Profile for Smart UPS Li Ion _EN - ENVPEP1812001_EN (pdf)

Certificate

PRODUCT SAFETY DATA SHEET of LI-ION BATTERY PACK Packed With Equipment SCL500 & SCL400 - PRODUCT_SAFETY_DATA_SHEET_LI_ION_BATTERY_PACK_Packed_With_Equipment_SCL500_SCL400_v1_4_EN (pdf)
UL Certificate of Compliance for APC SMART-UPS LI-ION, SHORT DEPTH 500VA/120V, 400VA/100V WITH SMARTCONNECT/NETWORK MANAGEMENT CARD - E95463-20181204-CertificateofCompliance (pdf)
cULus certificate Lithium ion Battery - BBFX8.MH64063+-+Batteries+for+Use+in+St...for+Canada+-+Component+_+UL+Product+iQ (pdf)
cULus certificate Lithium ion Battery - BBFX2.MH64063+-+Batteries+for+Use+in+St...plications+-+Component+_+UL+Product+iQ (pdf)
UN38.3 Lithium Ion Battery Test Summary for SCL500RM1NC, SCL500RM1UC, SCL500RM1UNC, SCL500RMI1U, SCL500RMI1UC, SCL500RMI1UNC, SCL400RMJ1U - UN38_Test_Summary_SCLXXXX_v1_1_11Nov2019_EN (pdf)
