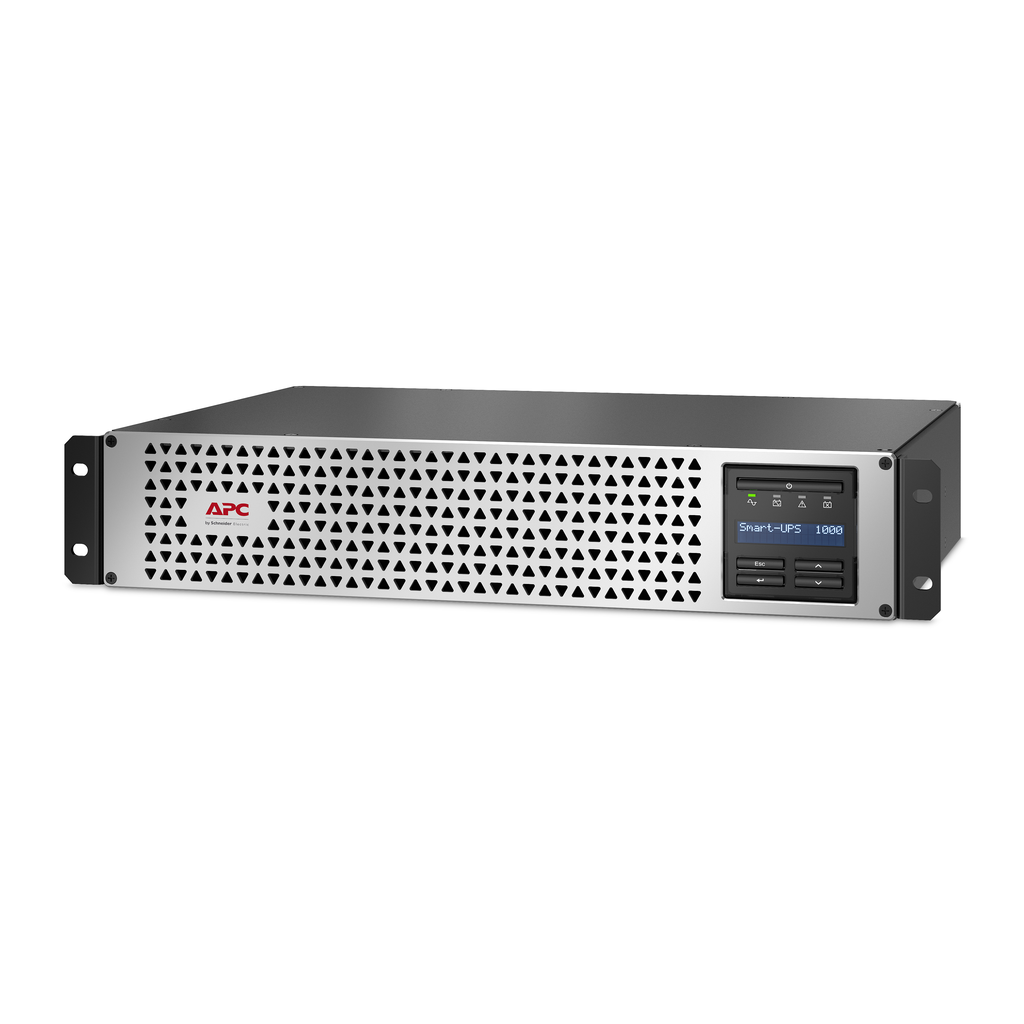

APC Smart-UPS, Line Interactive, 1000VA, Lithium-ion, Rack/Tower, 2U, 120V, 6x NEMA 5-15R outlets, SmartConnect Port+SmartSlot, Short Depth, AVR, LCD
APC Smart-UPS, Line Interactive, 1000VA, Lithium-ion, Rack/Tower, 2U, 120V, 6x NEMA 5-15R outlets, SmartConnect Port+SmartSlot, Short Depth, AVR, LCD
SMTL1000RM2UC
Product Description
- Number Of Cables: 1
- Cable Length: 8 ft
- Rated Power In Va: 1000 VA
- Provided Equipment: Installation guide || Rack Mounting support rails || USB cable
- Main Input Voltage: 120 V
- Battery Type: Li-Ion (Lithium Ion)
- Number Of Rack Unit: 2U
- Kw Rating: 800 W
Batteries & Runtime
- Battery Life: 5-10 year(s)
General
- Additional Specification: cloud-enabled monitoring
Communications & Management
- Communication Port Support: SmartConnect Ethernet port: for cloud monitoring feature availability varies by terms of use
- Audible Alarm: audible and visible alarms
- Alarm: alarm when on battery : distinctive low battery alarm : configurable delays
- Free Slots: 1
- Control Panel: Multi-function LCD status and control console
Overview
- Lead Time: Usually in Stock
Output
- Harmonic Distortion: Less than 5%
- Crest Factor: 3 : 1
Conformance
- Product Certifications: NOM
Contractual warranty
- Warranty: 5 year repair or replace
Environmental
- Storage Relative Humidity: 0-95 % non-condensing
- Ambient Air Temperature For Operation: 0-40 °C
- Storage Altitude: 0-50000 ft
- Ip Degree Of Protection: IP20
- Ambient Air Temperature For Storage: -15-45 °C
- Online Thermal Dissipation: 70 Btu/h
- Relative Humidity: 0-95 % non-condensing
- Acoustic Level: 41 dBA
- Operating Altitude: 0...10000 ft
Physical
- Height: 8.6 cm
- Usb Compatible: Yes
- Net Weight: 16.33 kg
- Mounting Location: front
- Mounting Mode: rack-mounted
- Color: Black with silver front bezel
- Width: 43.8 cm
- Depth: 31.8 cm
Offer Sustainability
- Rohs Exemption Information: Yes
- Mercury Free: Yes
- Environmental Disclosure: ENVPEP1812001_EN
- Sustainable Offer Status: Green Premium product
- Take-Back: Take-back program available
- Reach Regulation: Reference contains Substances of Very High Concern above the threshold
- Optimized Energy Efficiency: Energy efficient product
- Circularity Profile: ENVEOLI1812001_EN
- Eu Rohs Directive: Compliant
Input
- Input Frequency: 50/60 Hz +/- 3 Hz auto-sensing
- Efficiency At Full Load: 75...154 V adjustable || 82...144 V
- Input Protection Type: circuit breaker
Spec Sheet
