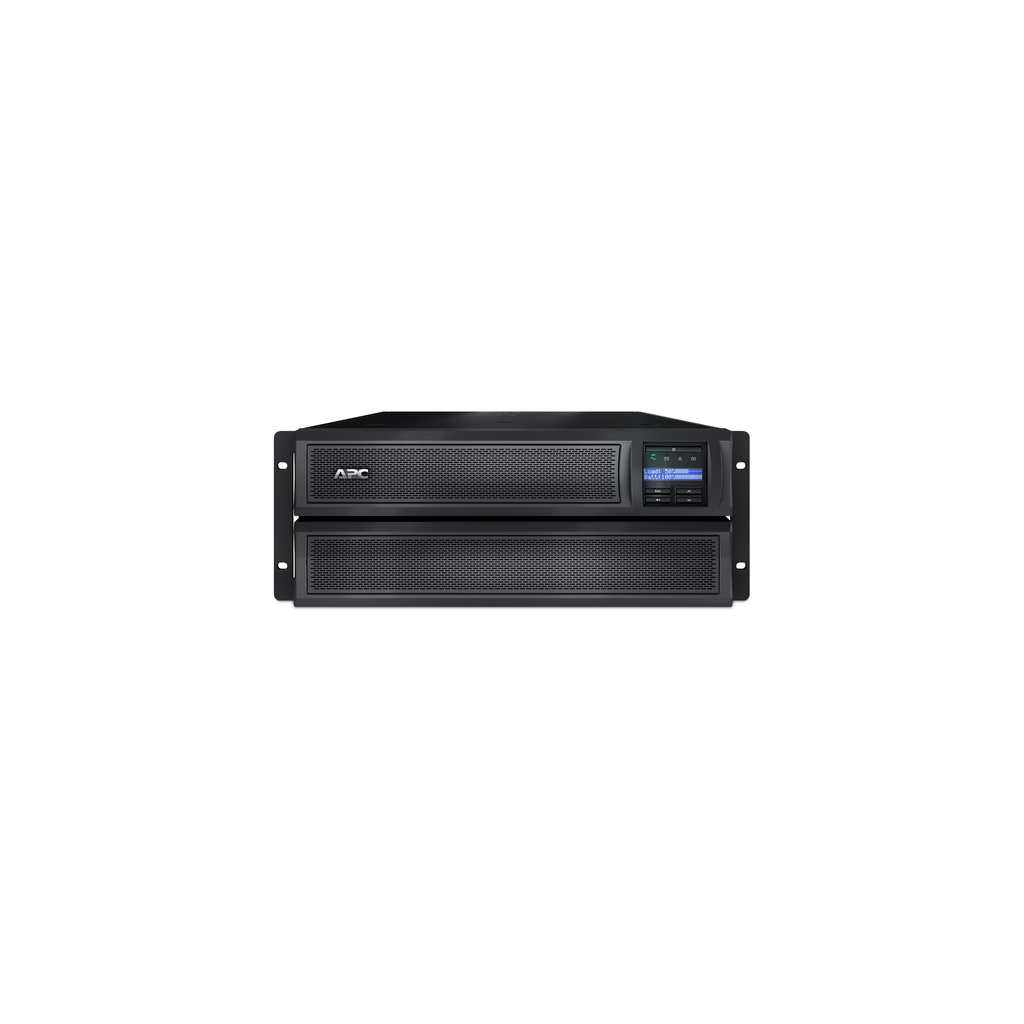

APC Smart-UPS X, Line Interactive, 3kVA, Rack/tower convertible 4U, 208V-230V, 8x C13+2x C19 IEC, SmartSlot, Extended runtime, Short depth

• Other Input Voltages: 220 V || 240 V
• Number Of Cables: 1
• Cable Length: 6 ft
• Rated Power In Va: 3000 VA
• Provided Equipment: CD with software || Documentation CD || Smart UPS signalling RS-232 cable || User Manual || USB cable || Rack Mounting brackets
• Main Input Voltage: 208 V || 230 V
• Battery Type: Lead-Acid battery
• Number Of Rack Unit: 4U
• Kw Rating: 2700 W
• Other Output Voltages: 208 V || 220 V || 240 V

Batteries & Runtime

• Battery Life: 3-5 year(s)

General

• Additional Specification: extended run

Communications & Management

• Alarm: alarm when on battery : distinctive low battery alarm : configurable delays
• Control Panel: LED status display with on line : on battery : replace battery and overload indicators
• Free Slots: 1
• Control Panel: Multi-function LCD status and control console

Overview

• Lead Time: Usually in Stock
• Presentation: Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.

Output

• Harmonic Distortion: Less than 5%
• Crest Factor: 3 : 1

Conformance

• Product Certifications: CE || EAC || IRAM || RCM || TISI || VDE
• Standards: EN/IEC 62040-1:2019/A11:2021 || EN/IEC 62040-2:2006/AC:2006 || EN/IEC 62040-2:2018

Contractual warranty

• Warranty: 3 years repair or replace (excluding battery) and 2 years for battery, optional on-site warranties available, optional extended warranties available

Environmental

• Storage Relative Humidity: 0-95 %
• Ambient Air Temperature For Operation: 0-40 °C
• Storage Altitude: 0-50000 ft
• Ambient Air Temperature For Storage: -15-45 °C
• Online Thermal Dissipation: 184 Btu/h
• Relative Humidity: 0-95 %
• Acoustic Level: 55 dBA
• Operating Altitude: 0...10000 ft

Physical

• Height: 43.2 cm
• Usb Compatible: Yes
• Net Weight: 38.64 kg
• Mounting Location: front
• Mounting Mode: rack-mounted
• Color: Black
• Width: 17.8 cm
• Depth: 48.3 cm

Offer Sustainability

• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP1612029_EN
• Sustainable Offer Status: Green Premium product
• Take-Back: Take-back program available
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Optimized Energy Efficiency: Energy efficient product
• Circularity Profile: ENVEOLI1612029_EN
• Eu Rohs Directive: Compliant

Input

• Input Frequency: 50/60 Hz +/- 3 Hz auto-sensing
• Efficiency At Full Load: 140...280 V
