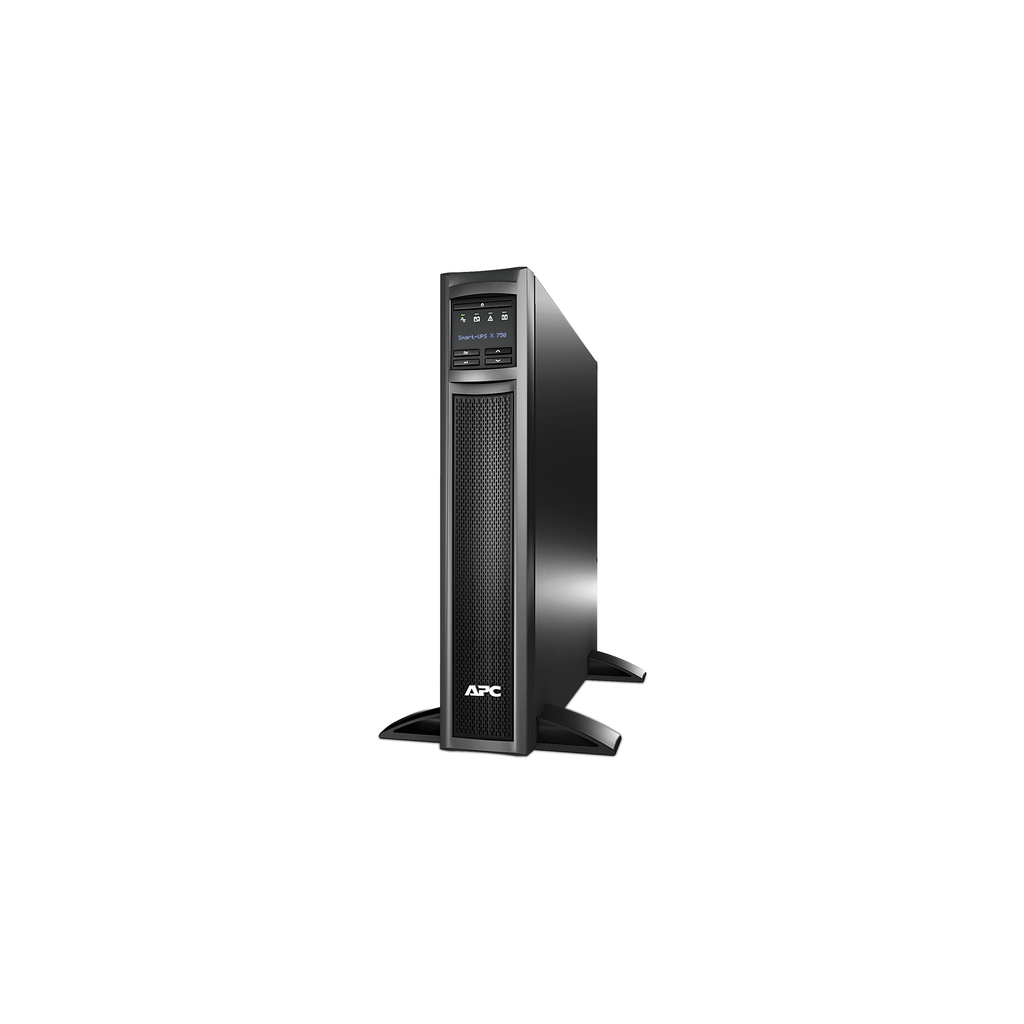

APC Smart-UPS X, Line Interactive, 750VA, Rack/tower convertible 2U, 120V, 8x 5-15R NEMA, SmartConnect port, Extended runtime

• Number Of Cables: 1
• Cable Length: 8 ft
• Rated Power In Va: 750 VA
• Provided Equipment: Warranty card || Cat 5 ethernet cable || USB cable || Smart UPS signalling RS-232 cable || Removable support feet || Rack Mounting brackets || Installation guide
• Main Input Voltage: 120 V
• Battery Type: Lead-Acid battery
• Number Of Rack Unit: 2U
• Kw Rating: 675 W

Batteries & Runtime

• Battery Life: 3-5 year(s)
• Dc Overcurrent Protection: 60 A

General

• Additional Specification: extended run

Communications & Management

• Alarm: alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
• Free Slots: 1

Overview

• Lead Time: Usually Ships within 2 Weeks

Output

• Harmonic Distortion: Less than 5%

Conformance

• Product Certifications: cUL Listed || ENERGY STAR V2.0 (USA)

Contractual warranty

• Warranty: 3 years repair or replace for hardware. 2 years for battery, plus 1 additional year if customers registers device to SmartConnect

Environmental

• Storage Relative Humidity: 0-95 %
• Ambient Air Temperature For Operation: 0-40 °C
• Storage Altitude: 0-50000 ft
• Ambient Air Temperature For Storage: -15-45 °C
• Online Thermal Dissipation: 69 Btu/h
• Relative Humidity: 0-95 %
• Acoustic Level: 40 dBA
• Operating Altitude: 0...10000 ft

Physical

• Height: 43.2 cm
• Usb Compatible: Yes
• Net Weight: 22.05 kg
• Mounting Mode: rack-mounted with kit
• Color: Black
• Width: 8.9 cm
• Depth: 49 cm

Offer Sustainability

• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• China Rohs Regulation: Product out of China RoHS scope. Substance declaration for your information.
• Eu Rohs Directive: Compliant

Input

• Switching Current Capacity: 15 A
• Input Frequency: 50/60 Hz +/- 3 Hz auto-sensing
• Efficiency At Full Load: 75...154 V adjustable || 82...143 V
• Maximum Short Circuit Withstand (Icw): 1000 kA
