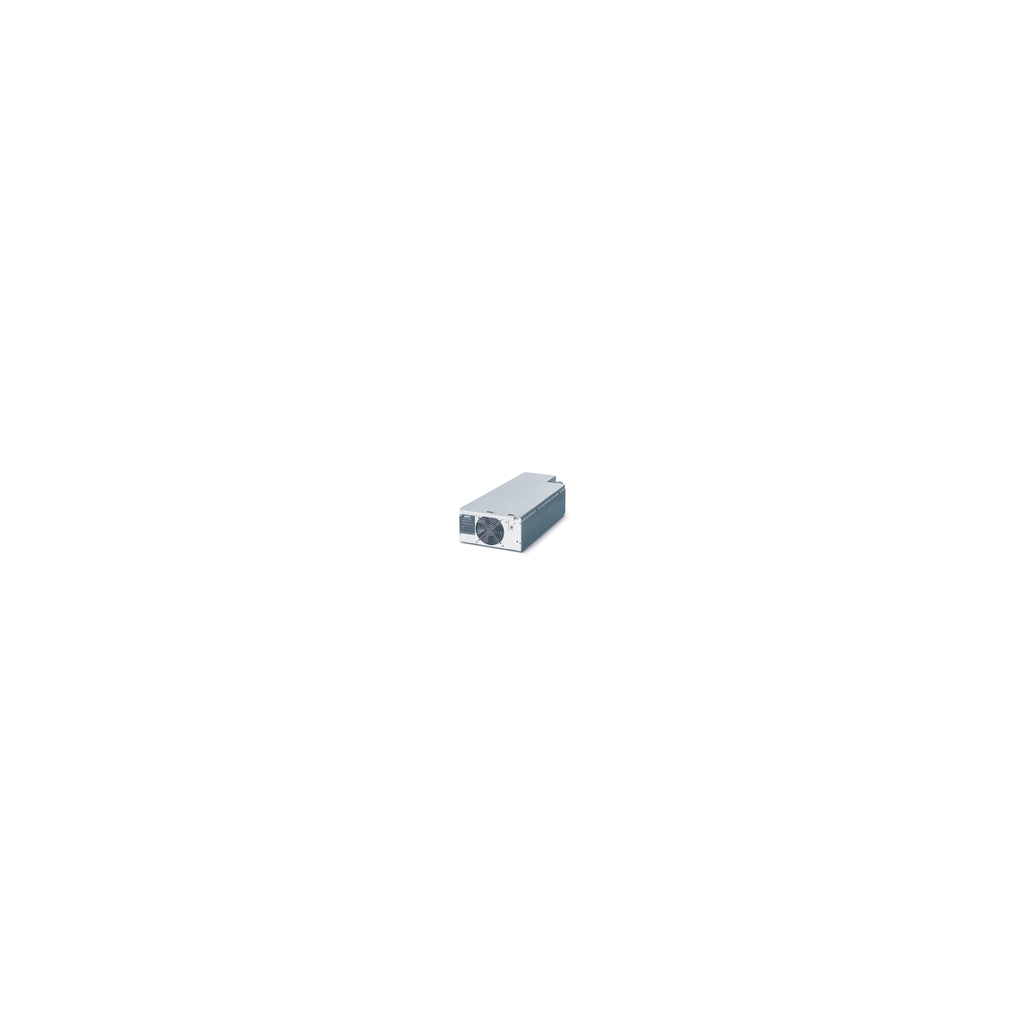

APC Symmetra LX 4kVA Power Module, 200/208V

• Other Input Voltages: 240 V
• Number Of Cables: 1
• Rated Power In Va: 4000 VA
• Main Input Voltage: 200 V || 208 V
• Number Of Rack Unit: 0U
• Kw Rating: 3200 W
• Provided Equipment: Installation guide
• Other Output Voltages: 240 V

Batteries & Runtime

• Additional Information: Configurable for 120/208 or 120/240 output voltage

Contractual warranty

• Warranty: 2 years repair or replace

Environmental

• Storage Relative Humidity: 0-95 %
• Ambient Air Temperature For Operation: 0-40 °C
• Storage Altitude: 0-15000 ft
• Ambient Air Temperature For Storage: -15-45 °C
• Relative Humidity: 0-95 %
• Acoustic Level: 62 dBA
• Operating Altitude: 0...10000 ft

Physical

• Height: 15 cm
• Usb Compatible: No
• Net Weight: 15 kg
• Mounting Mode: not rack-mountable
• Color: Silver
• Width: 25 cm
• Depth: 56.5 cm

Offer Sustainability

• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP1712017_V1
• Sustainable Offer Status: Green Premium product
• Take-Back: Take-back program available
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• Optimized Energy Efficiency: Energy efficient product
• Circularity Profile: ENVEOLI1712017_V1
• Eu Rohs Directive: Compliant

Input

• Cos Phi: 0.98
• Input Frequency: 45...65 Hz auto-sensing
• Efficiency At Full Load: 155...276 V

Overview

• Lead Time: Usually in Stock
• Presentation: High density, double-conversion on-line power protection with scalable runtime.

Output

• Harmonic Distortion: less than 5 % at full load
• Crest Factor: up to 5 : 1

Conformance

• Product Certifications: CSA
• Standards: FCC Part 15 class A || UL 1778
