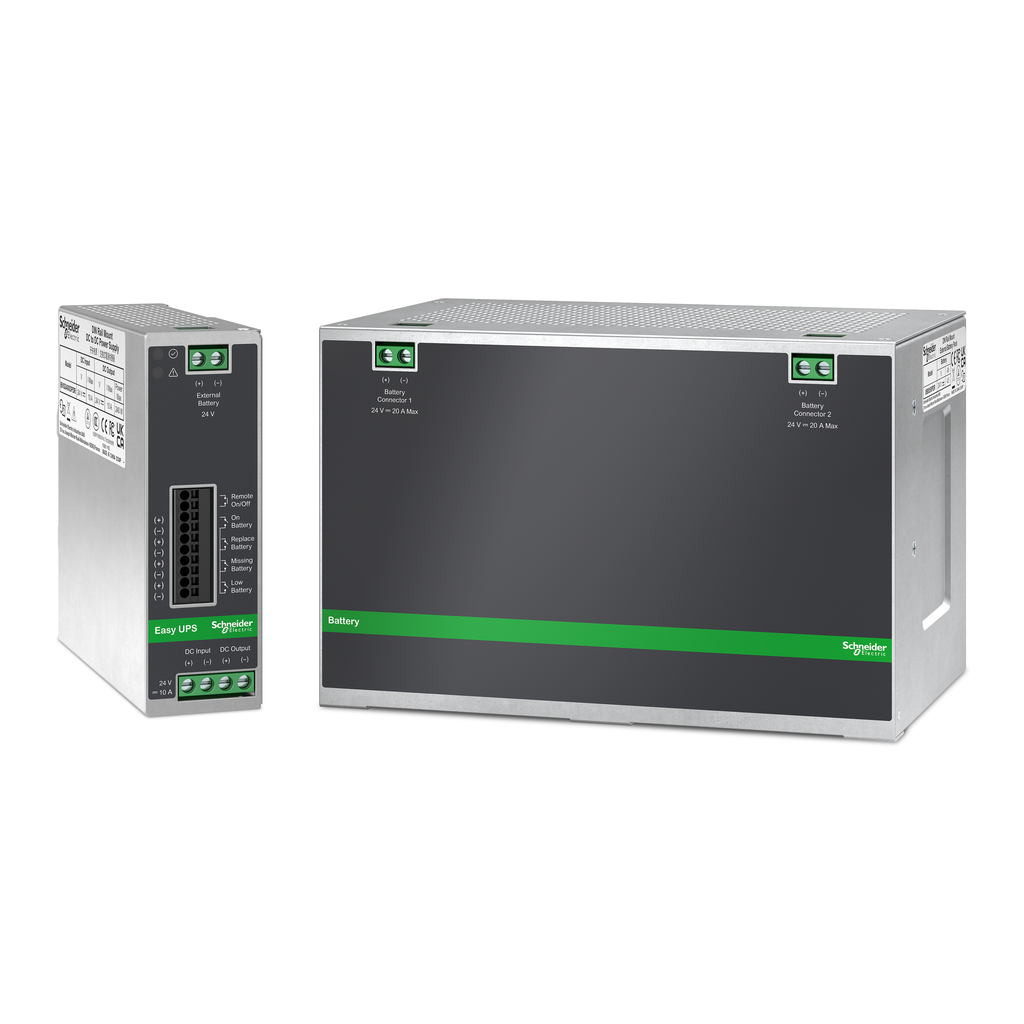

Easy UPS battery module, 24V DC-DC, DIN Rail, Industrial, 4.5Ah

• Main Input Voltage: 24 V DC
• Battery Type: VRLA
• Provided Equipment: User Manual

Contractual warranty

• Warranty: 1 Year

Batteries & Runtime

• Device Mounting: DIN rail
• Battery Voltage: 24 V

Environmental

• Storage Relative Humidity: 0-95 %
• Ambient Air Temperature For Operation: -15-50 °C
• Storage Altitude: 0-3000 m
• Ambient Air Temperature For Storage: -15-40 °C
• Relative Humidity: 0-95 %
• Operating Altitude: 0...9842.52 ft (0...3000 m)

Physical

• Height: 129 mm
• Usb Compatible: No
• Net Weight: 4.5 kg
• Color: metal grey
• Width: 192 mm
• Depth: 119 mm

Offer Sustainability

• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• China Rohs Regulation: X
• Eu Rohs Directive: Compliant

Output

• Battery Capacity: 4.5 Ah

Conformance

• Product Certifications: CE || TÜV
• Standards: IEC 62368-1
