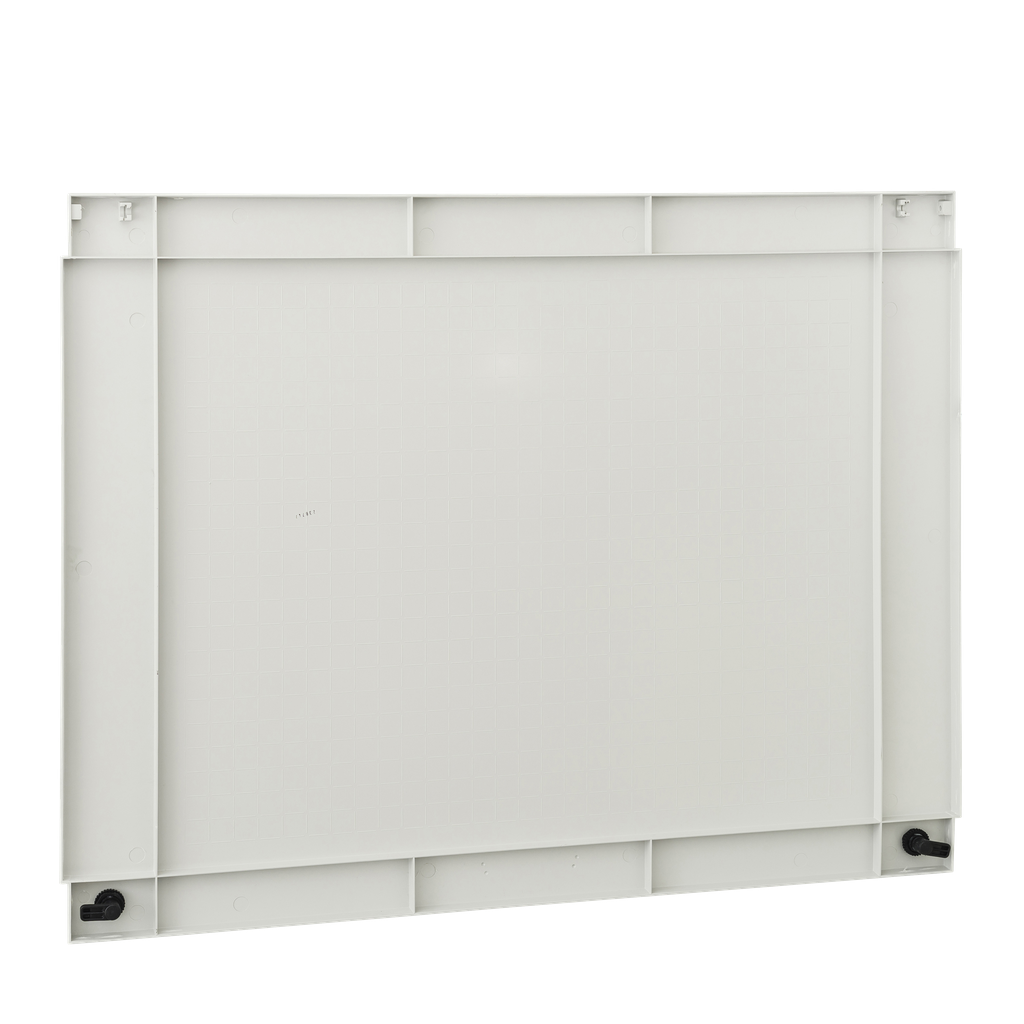

reversible internal door polyester 2 locks grid pattern forPLM86

• Range Compatibility: Thalassa (Thalassa PLM)
• Accessory / Separate Part Category: enclosure accessory
• Product Or Component Type: door
• Device Composition: 1 door || 1 handle || 4 fixing brackets
• Device Application: multi-purpose
• Range: Thalassa
• Mounting Location: front side

Complementary

• Number Of Locks: 2
• Width: grid pattern 505 mm
• Height: grid pattern 715 mm
• Material: polyester charged with fibreglass
• Color: Gray RAL 7035)
• Lock Type: lock 5 mm double bar
• Door Type: internal plain
• Door Opening Side: reversible 110 °)
• Depth: available depth between enclosure door 32 mm || available depth between rear 244 mm

Offer Sustainability

• China Rohs Regulation: Product out of China RoHS scope. Substance declaration for your information.
• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP100104EN
• Sustainable Offer Status: Green Premium product
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• Reach Free Of Svhc: Yes
