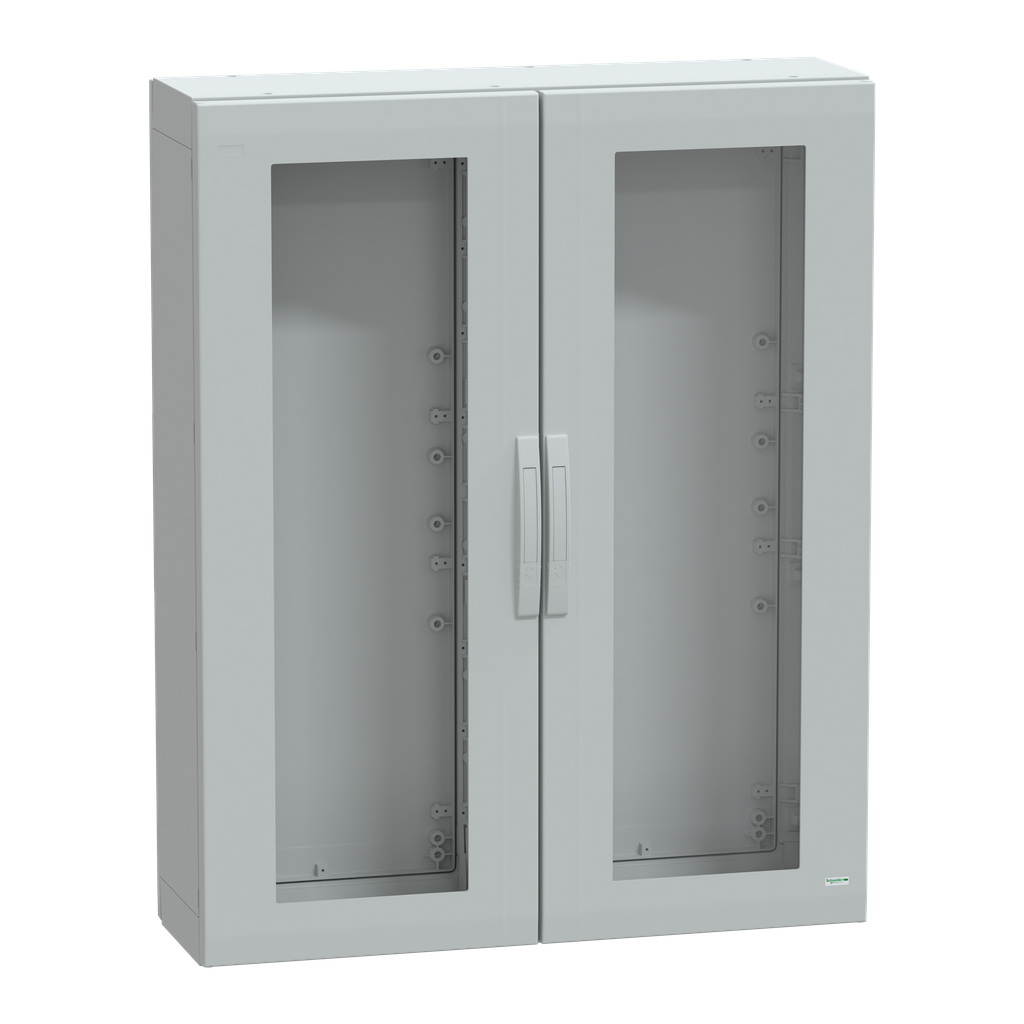

Floor standing polyester enclosure, Thalassa PLA, glazed door, completely sealed, 1250x1000x320mm, IP65, IK08

• Product Or Component Type: suitable enclosure
• Product Name: Thalassa PLA
• Device Composition: 1 top part || 1 bottom part || 2 side part || 2 door || 2 rear panel
• Enclosure Nominal Height: 1250 mm
• Range: Thalassa
• Enclosure Mounting: floor-standing
• Enclosure Nominal Depth: 320 mm
• Device Application: multi-purpose
• Device Short Name: PLA
• Enclosure Nominal Width: 1000 mm

Complementary

• Product Certifications: Veritas || UL/cUL listed || DNV Marine
• Accessibility For Operation: front || rear
• Removable Parts: door by hinges || rear panel by fixing element
• Standards: IEC 62208 || UL 508 A
• Door Type: transparent front
• Lock Type: 4 points lock, 5 mm double-bar
• Door Opening Side: right and left 120 °)
• Number Of Doors: 2
• Electrical Insulation Class: class II
• Nema Degree Of Protection: NEMA 2 || NEMA 13 || NEMA 1 || NEMA 12
• Body Type: sealed top and bottom part assembled with side parts
• Material: polyester reinforced with fibreglass
• Color: Gray RAL 7035)

Offer Sustainability

• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP110505EN
• Sustainable Offer Status: Green Premium product
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• China Rohs Regulation: Product out of China RoHS scope. Substance declaration for your information.
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)

Environment

• Ik Degree Of Protection: IK08 IEC 62262 glazed door)
• Ambient Air Temperature For Storage: -35-90 °C
• Ip Degree Of Protection: IP65 IEC 60529 completely sealed)
• Fire Resistance: 960 °C IEC 62208
