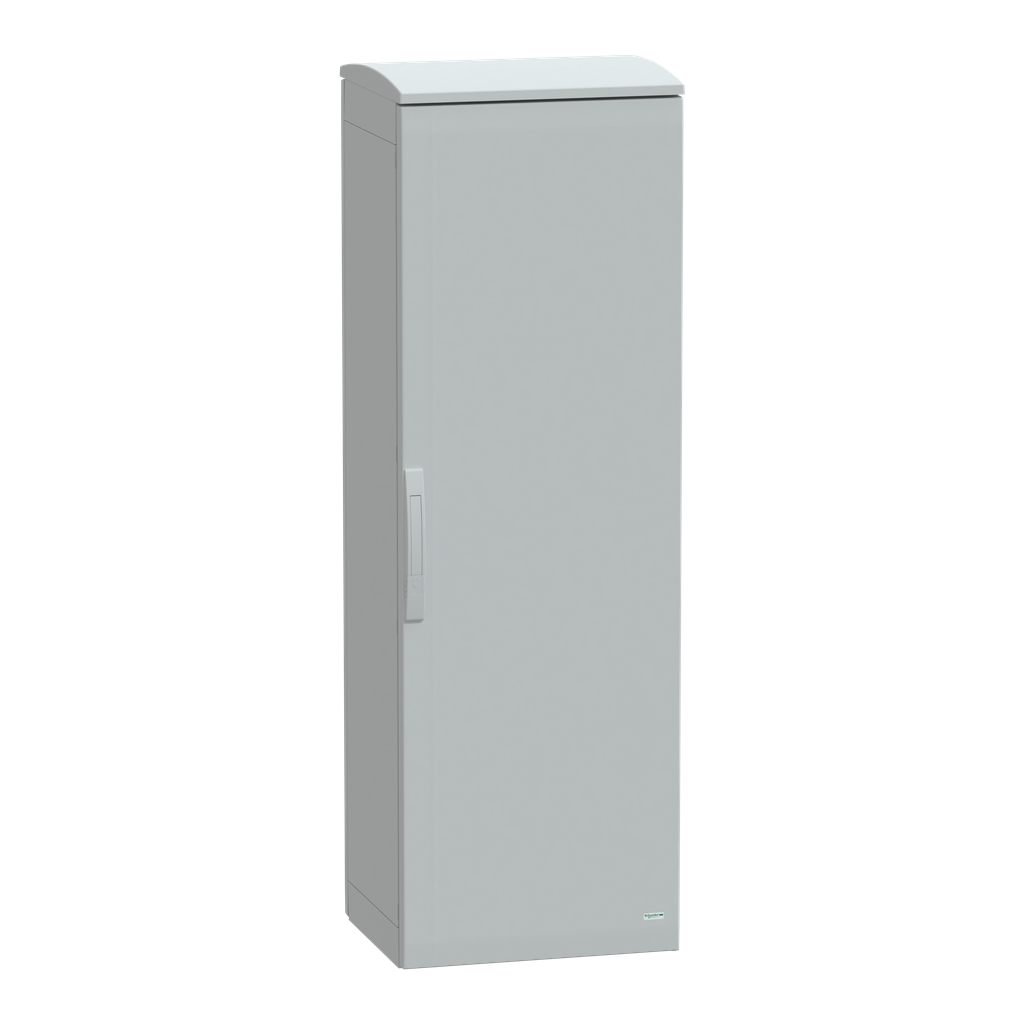

Floor standing polyester enclosure, Thalassa PLA, plain door, ventilated canopy, 1500x500x420mm, IP44, IK10

• Product Or Component Type: suitable enclosure
• Product Name: Thalassa PLA
• Device Composition: 1 top part || 1 bottom part || 2 side part || 1 rear panel || 1 door || 1 canopy
• Enclosure Nominal Height: 1500 mm
• Range: Thalassa
• Enclosure Mounting: floor-standing
• Enclosure Nominal Depth: 420 mm
• Device Application: multi-purpose
• Device Short Name: PLAT
• Enclosure Nominal Width: 500 mm

Complementary

• Product Certifications: Veritas
• Accessibility For Operation: rear || top || front
• Removable Parts: door by hinges || rear panel by fixing element || canopy by fixing element
• Standards: IEC 62208
• Door Type: Solid front
• Lock Type: 4 points lock, handle with 5 mm double bar insert
• Door Opening Side: reversible 120 °)
• Number Of Doors: 1
• Electrical Insulation Class: class II
• Body Type: open top and sealed bottom part assembled with side parts
• Material: polyester reinforced with fibreglass
• Color: Gray RAL 7035)

Offer Sustainability

• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP110505EN
• Sustainable Offer Status: Green Premium product
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• China Rohs Regulation: Product out of China RoHS scope. Substance declaration for your information.
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)

Environment

• Ik Degree Of Protection: IK10 IEC 62262 plain door)
• Ambient Air Temperature For Storage: -35-90 °C
• Ip Degree Of Protection: IP44 IEC 60529 with ventilated canopy)
• Fire Resistance: 960 °C IEC 62208
