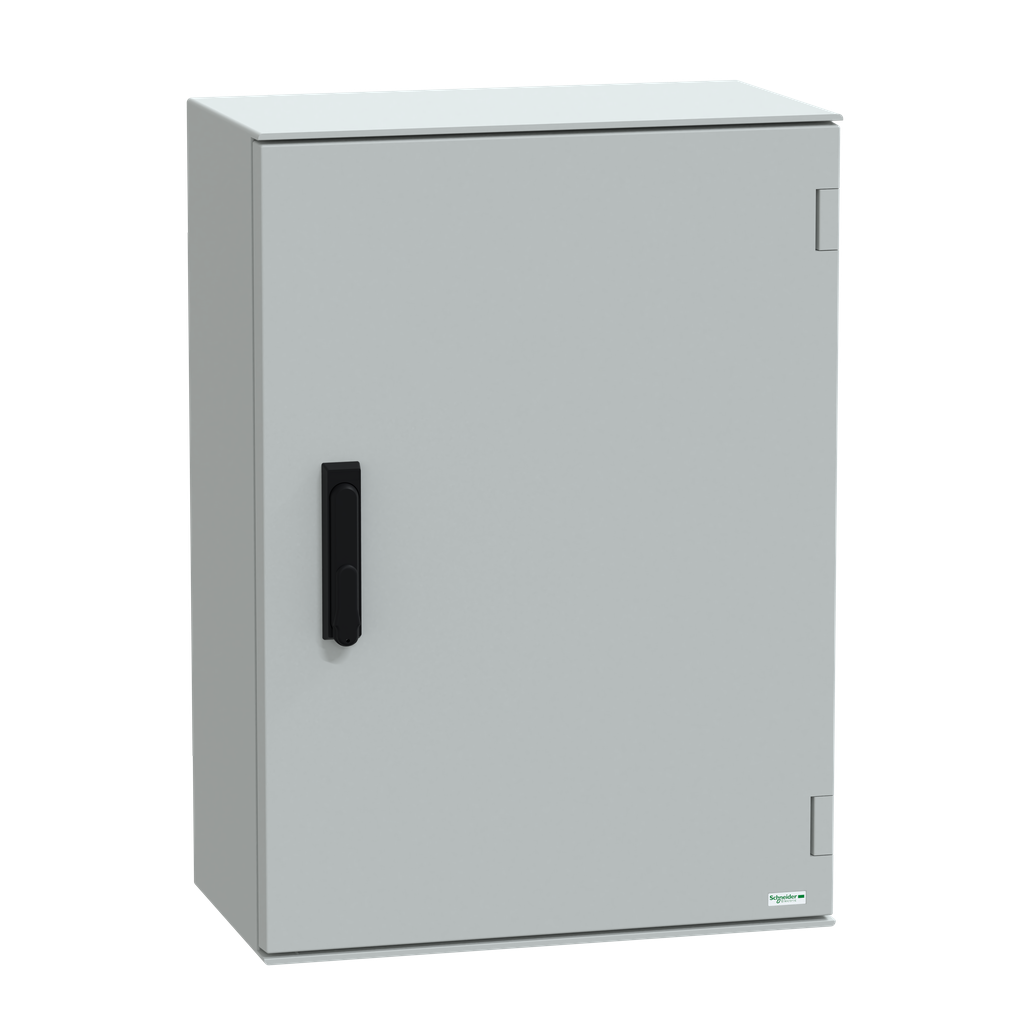

Wall mounted polyester enclosure, Thalassa PLM, plain door, with handle, 747x536x300mm, IP66, IK10, RAL 7035

• Product Or Component Type: compact enclosure
• Product Name: Thalassa PLM
• Device Composition: 1 body || 1 door || 1 handle lock
• Enclosure Nominal Height: 747 mm
• Lock Type: 3 points lock, handle with 1242E key lock
• Range: Thalassa
• Enclosure Mounting: wall mounted
• Door Type: Solid
• Enclosure Nominal Depth: 300 mm
• Device Application: multi-purpose
• Device Short Name: PLM
• Enclosure Nominal Width: 536 mm

Complementary

• Product Certifications: UL
• Accessibility For Operation: front
• Mounting Plate Description: without mounting plate
• Removable Parts: door by hinges
• Number Of Locks: 1
• Standards: IEC 62208 || NEMA classification 13 || NEMA classification 4X
• Electrical Insulation Class: class II
• Material: polyester reinforced with fibreglass
• Color: Gray RAL 7035)

Offer Sustainability

• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP110118EN
• Sustainable Offer Status: Green Premium product
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• Reach Free Of Svhc: Yes
• China Rohs Regulation: Product out of China RoHS scope. Substance declaration for your information.
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)

Environment

• Ik Degree Of Protection: IK10 IEC 62262
• Ambient Air Temperature For Operation: -40-80 °C
• Ip Degree Of Protection: IP66 IEC 60529
• Fire Resistance: 960 °C IEC 62208
