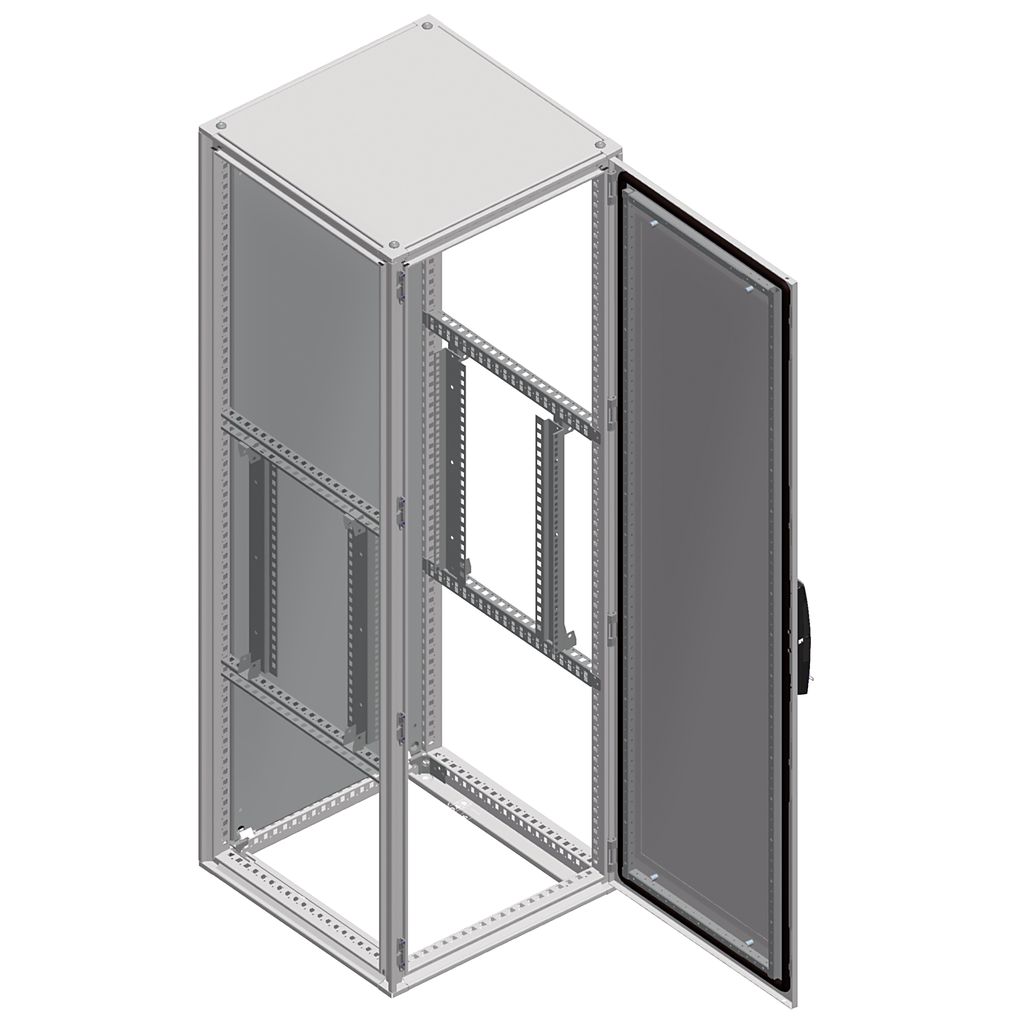

Spacial SF/SM partial 19" fixed rack - 200 mm

• Rack Type: partial fixed
• Enclosure Nominal Dimensions: H: 200 mm
• Mounting Support: cross rails
• Range Compatibility: Spacial (Spacial SF) || Spacial (Spacial SM)
• Accessory / Separate Part Category: mounting accessory
• Quantity Per Set: set of 1
• Product Or Component Type: 19" rack
• Number Of Units 19": 4
• Device Composition: fixing elements || 2 upright
• Device Application: electronic application
• Range: Spacial
• Mounting Location: top front of enclosure

Contractual warranty

• Warranty: 18 months

Complementary

• Adjustment: adjustable in depth every 25 mm
• Height: 200 mm
• Fixing Mode: by fixing element
• Material: steel
• Surface Finish: zinc coated
• Depth: 60 mm
• Permanent Permissible Load: 2 kg per unit

Offer Sustainability

• China Rohs Regulation: Pro-active China RoHS declaration (out of China RoHS legal scope)
• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP110923EN
• Sustainable Offer Status: Green Premium product
• Toxic Heavy Metal Free: Yes
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)
• Reach Regulation: Free of Substances of Very High Concern above the threshold
• Reach Free Of Svhc: Yes
