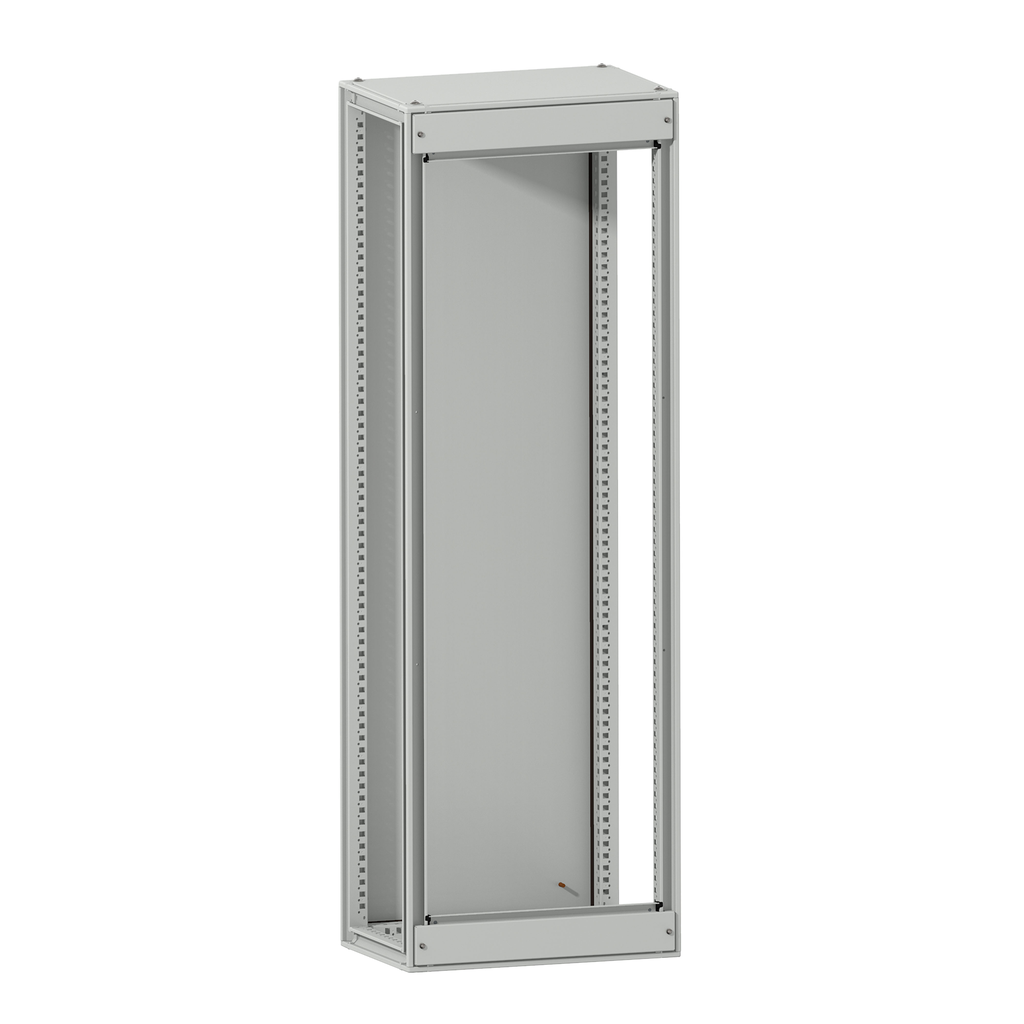

Spacial SF compartmentalised enclosure - assembled - 2000x600x800 mm

• Enclosure Mounting: floor-standing
• Product Specific Application: reduce the destructive effects of a short-circuit || insulating the control of a device
• Product Or Component Type: suitable enclosure
• Product Name: Spacial SFM
• Device Composition: 1 structure || 1 rear panel || 1 roof || 2 intermediate crossbars || 2 panels for modularity top and bottom
• Enclosure Nominal Height: 2000 mm
• Enclosure Nominal Depth: 800 mm
• Device Application: compartmentalised application
• Enclosure Nominal Width: 600 mm
• Range: Spacial

Contractual warranty

• Warranty: 18 months

Complementary

• Accessibility For Operation: sides of enclosure || front || rear
• Removable Parts: rear panel by screws || roof by screws
• Type Of Gland Plate: without gland plate
• Material: frame galvanised steel || uprights galvanised steel || panels sheet steel || hinge zamak
• Surface Finish: epoxy-polyester powder
• Color: Gray RAL 7035)
• Structure Type: panels and doors built into the structure || formed from a single section || vertical uprights joined with top and bottom frames || perforated structure with a pitch of 25 mm
• Mounting Plate Description: without mounting plate

Offer Sustainability

• China Rohs Regulation: Product out of China RoHS scope. Substance declaration for your information.
• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP110923EN
• Sustainable Offer Status: Green Premium product
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• Reach Free Of Svhc: Yes

Environment

• Standards: IEC 62208
